Key Specification

Model

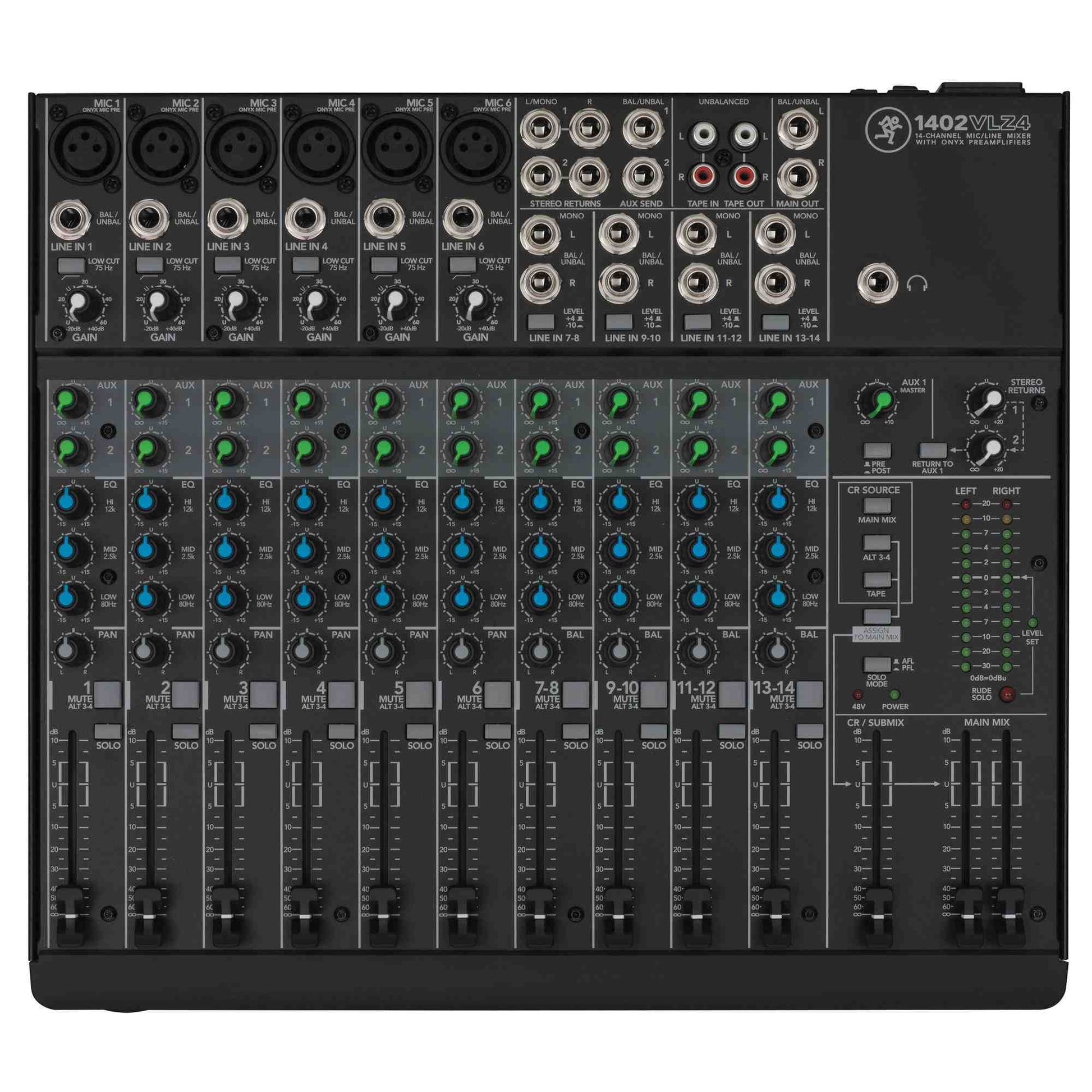

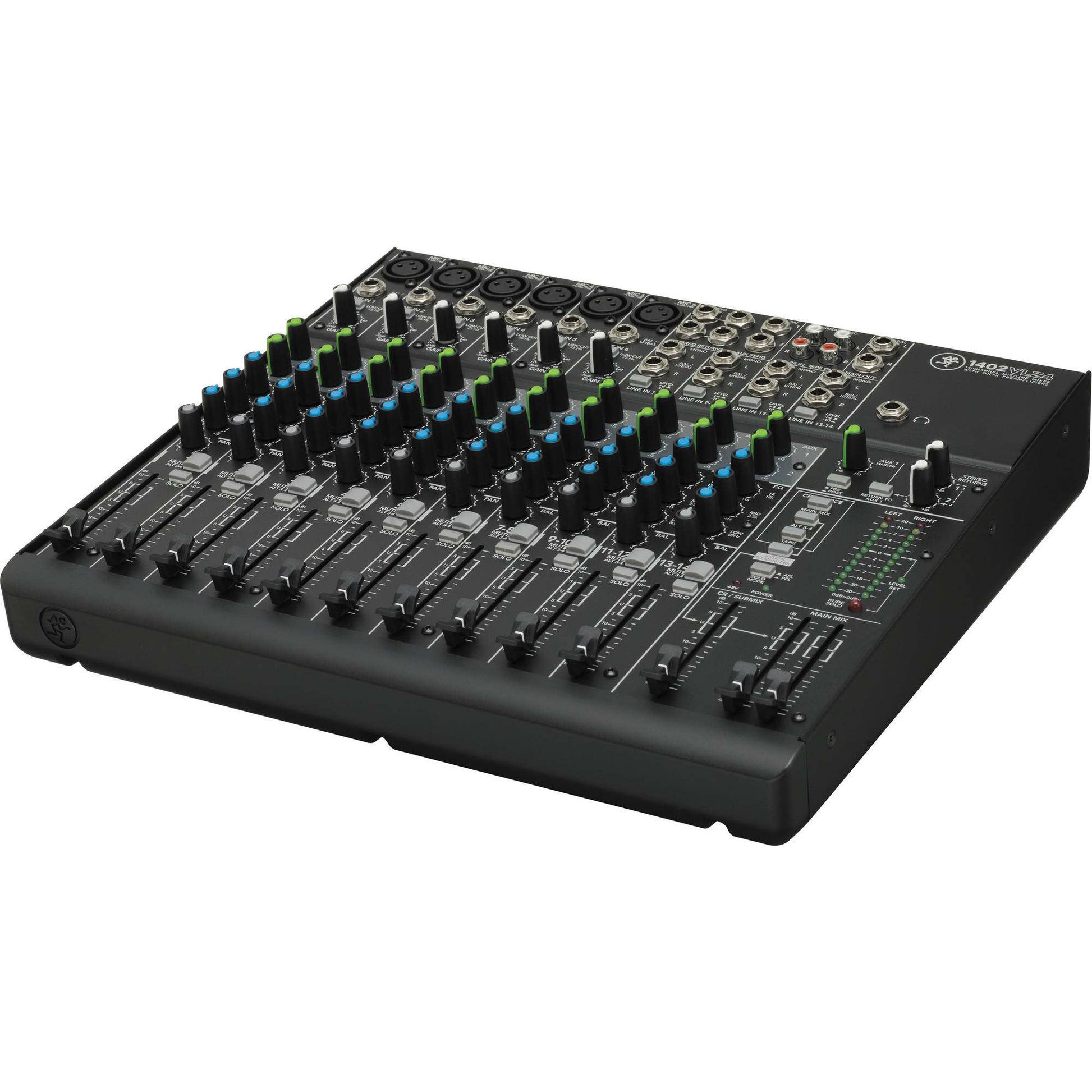

1402-VLZ4

Number of Analog Input Channels

14 (6 Mono / 4 Stereo)

Number of Mic Preamps

6

Analog Output Channels

1 × Stereo Master Output
1 × Stereo Control Room/Monitor Output
1 × Stereo Bus/Subgroup Output
2 × Aux Send Output
1 × Stereo Tape/Record Output
1 × Stereo Headphone Output

Mix Routing

Main Mix, Aux Bus/Subgroup

Equalizer

High Shelving: ±15 dB @ 12 kHz
Mid Peaking: ±15 dB @ 2.5 kHz
Low Shelving: ±15 dB @ 80 Hz

Filters

High-Pass: 75 Hz, 18 dB/Octave

Solo / Mute

Solo, Mute per Input Channel

Faders

10 × 60 mm Channel Faders
1 × 60 mm Bus/Subgroup Fader
2 × 60 mm Master Faders

Gain / Trim Range

0 dB to +60 dB

Built-In Effects

No

Frequency Response

Mic In → Main Out (Unity Gain):
+0/-1 dB, 20 Hz–50 kHz
+0/-3 dB, 10 Hz–100 kHz

Max Input Level

Mic In: +22 dBu
Tape In: +16 dBu
Line In: +22 dBu

I/O Impedance

Mic In: 2.5 kΩ
Insert Return: 2.5 kΩ
Line In: ≥10 kΩ
Tape Out: 1.1 kΩ
Main Out: 120 Ω

Noise Floor

-101 dBu (Master @ -∞, Ch @ -∞)
-91 dBu (Master @ Unity, Ch @ -∞, 95 dB SNR)
-86 dBu (Master @ Unity, Ch @ Unity)

Total Harmonic Distortion (THD)

Mic In → Insert Send: <0.0007%
(+35 dB Gain @ 1 kHz)

Analog Inputs

6 × XLR Mic Inputs
6 × 1/4" TRS Line Inputs
8 × 1/4" TRS Stereo Line Inputs (4 Pairs)
6 × 1/4" TRS Insert Inputs
2 × RCA Tape Inputs
4 × 1/4" TRS Aux Returns (2 Pairs)

Analog Outputs

2 × 1/4" TRS Main Outputs
1 × 1/4" Headphone Output
2 × XLR Main Outputs
2 × 1/4" Control Room Outputs
2 × 1/4" Alt Outputs
2 × RCA Tape Outputs
2 × 1/4" Aux Send Outputs

Phantom Power

+48 V

Digital I/O

No

Wireless

No

Power

100–120 VAC, 50/60 Hz (T 500 mA 250 V)

Operating Temperature

32–104°F (0–40°C)

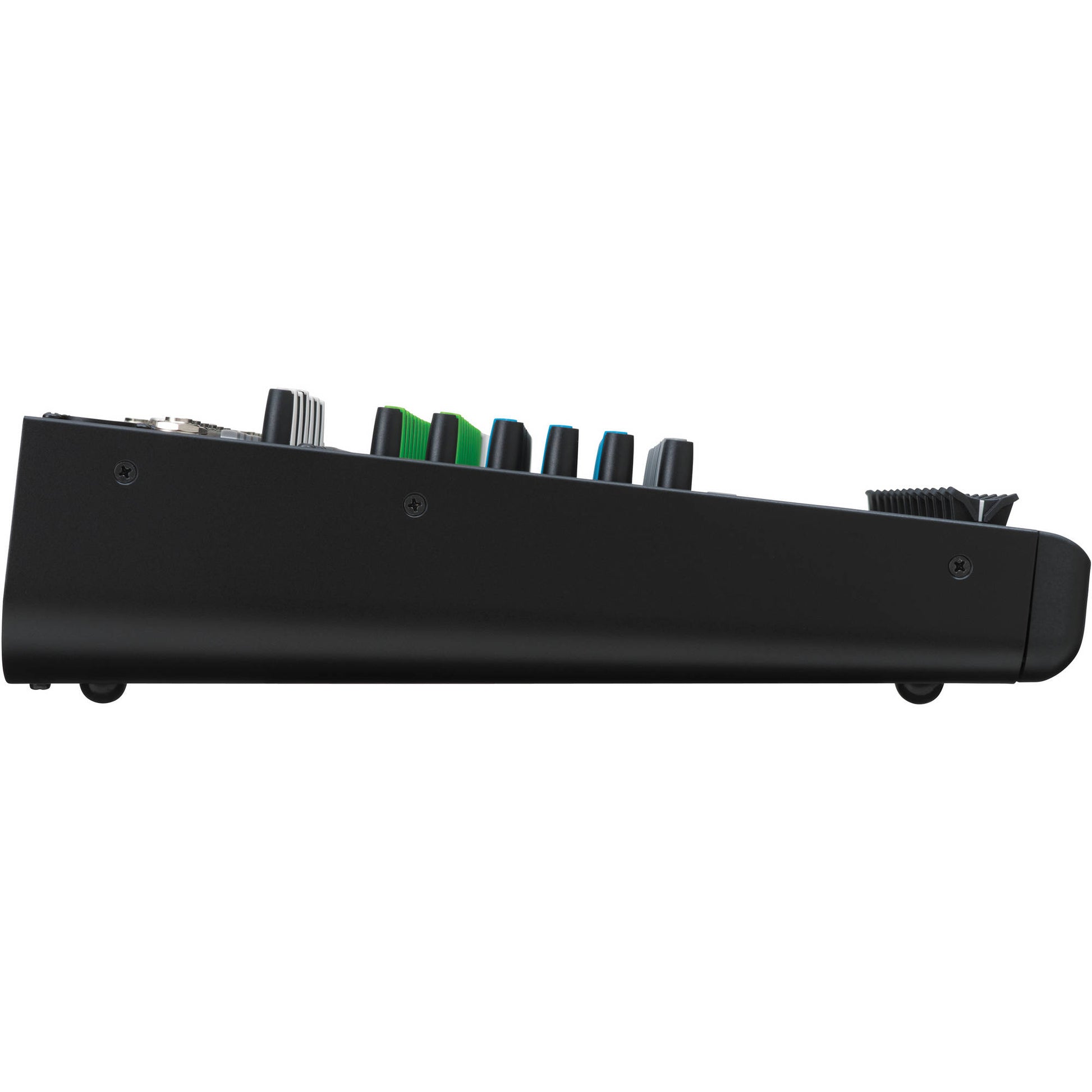

Dimensions

12.5 × 14 × 3.2 in
(317 × 356 × 81 mm)

Weight

9.5 lb (4.5 kg)

Package Weight

12.8 lb

Box Dimensions (L×W×H)

16.1 × 15.1 × 6.7 in
