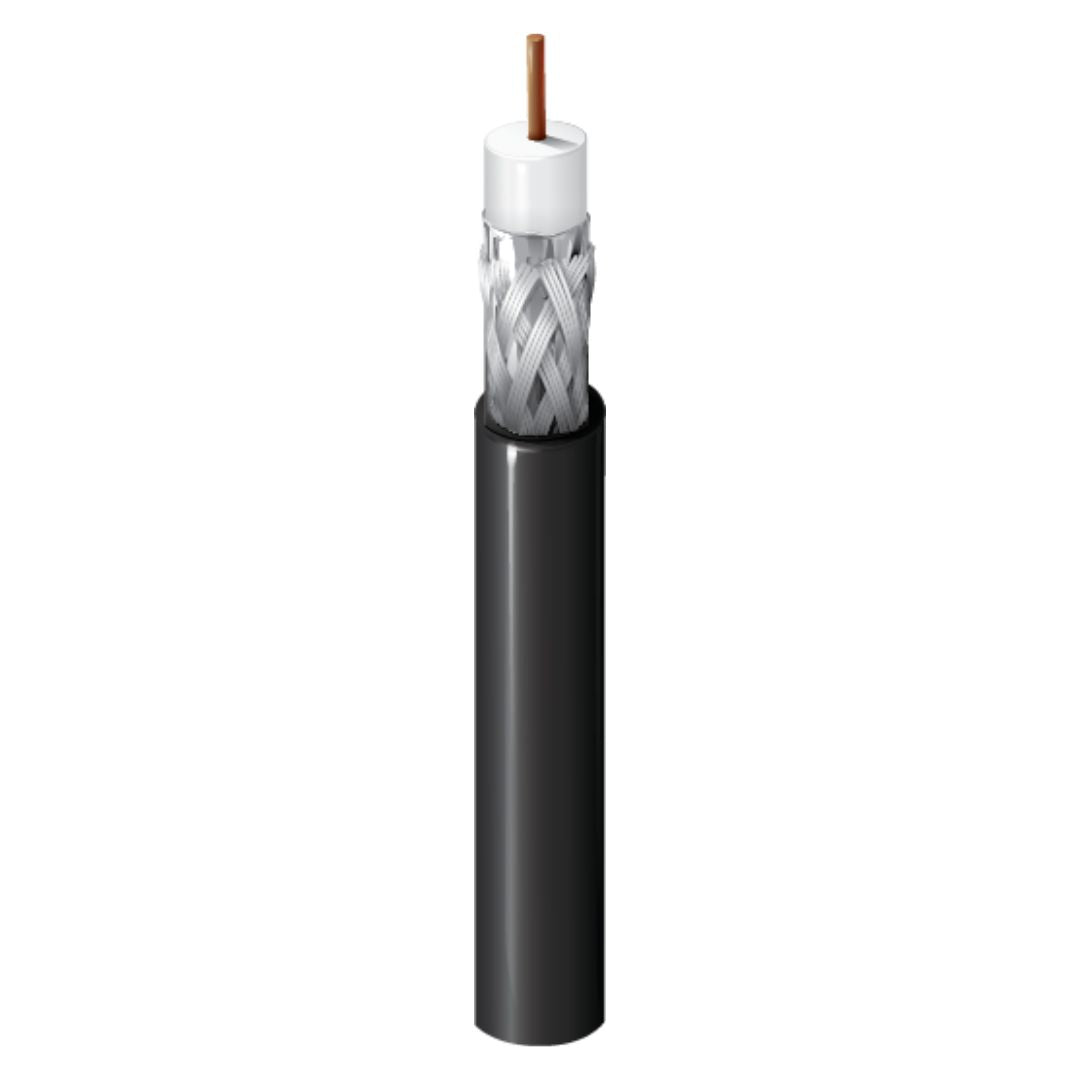

BELDEN 1505A
BELDEN 1505A
Key Specifications |
|
RG Type |
|
59 |
|
Conductor |
|
Size |
20 AWG |
Stranding |
Solid |
Nom. Diameter |
0.032 in |
Material |
BC - Bare Copper |
Insulation |
|
Material |
PE - Polyethylene (Foam) |
Nom. Insulation Diameter |
0.145 in (3.68 mm) |
Color Code |
White |
Outer Shield |
|
Layer |
1 |
Outer Shield Type |
Tape |
Material |
Tri-Laminate (Alum+Poly+Alum) |
Material Trade Name |
Duofoil® |
Coverage |
100% |
Layer |
2 |
Outer Shield Type |
Braid |
Material |
Tinned Copper (TC) |
Coverage |
95% |
Outer Jacket |
|
Material |
PVC - Polyvinyl Chloride |
Nom. Diameter |
0.233 in (5.92 mm) |
Overall Cable Diameter (Nominal) |
|
0.233 in (5.92 mm) |
|
