Key Specifications

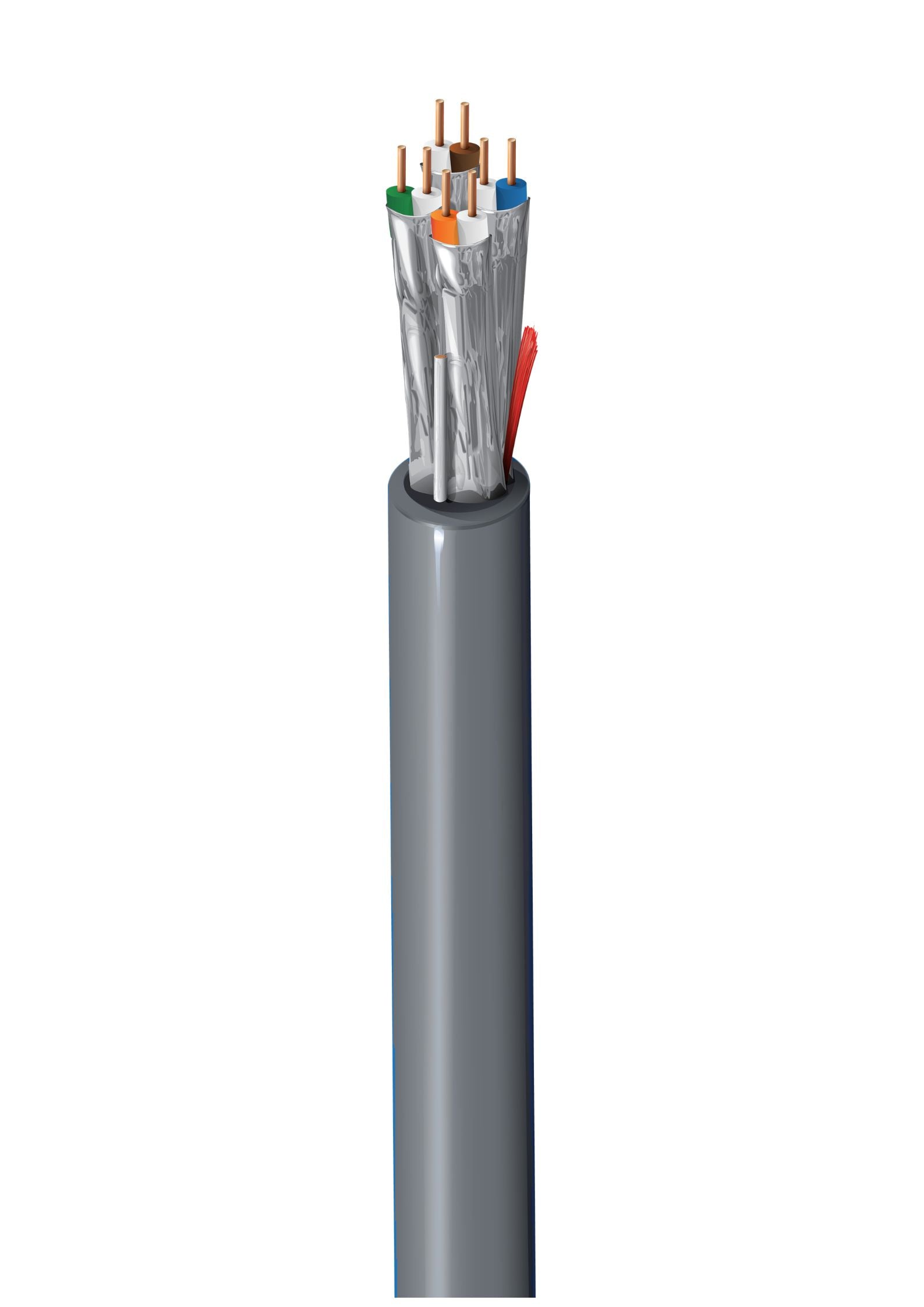

Construction Details

Conductor Type

Individual Shielded Pair

Conductor Size

23 AWG

Stranding

Solid

Conductor Material

Bare Copper (BC)

Number of Pairs

4

Number of Elements

8

Insulation

Material

PE (Foam Polyethylene)

Nominal Insulation Diameter

1.32 mm (0.0520 in.)

Color Code

White & Blue

White & Orange

White & Green

White & Brown

Cable Core

Description

4 Pairs Twisted Together

Inner Shield

Shield Type

Tape

Material

Bi-Laminate (Aluminum + Polyester)

Coverage

100%

Shield Orientation

Aluminum Facing Outside

Outer Shield

Shield Type

Tape

Material

Bi-Laminate (Aluminum + Polyester)

Coverage

100%

Drain Wire

26 AWG Solid Tinned Copper (TC)

Shield Orientation

Aluminum Facing Inside; Drain Wire Positioned Between Inner and Outer Foil

Outer Jacket

Material

LSZH (Low Smoke Zero Halogen), Flame Retardant

Nominal Diameter

7.1 mm (0.28 in.)

Ripcord

Yes

Overall Cable Diameter

Nominal Diameter

7.1 mm (0.28 in.)

Electrical Characteristics

Maximum Conductor DCR

95 Ω/km

Maximum Mutual Capacitance

56 pF/m (17 pF/ft)

Maximum Capacitance Unbalance

160 pF/100 m

Nominal Characteristic Impedance

100 Ω

Maximum Delay Skew

25 ns/100 m

Nominal Velocity of Propagation

77%
