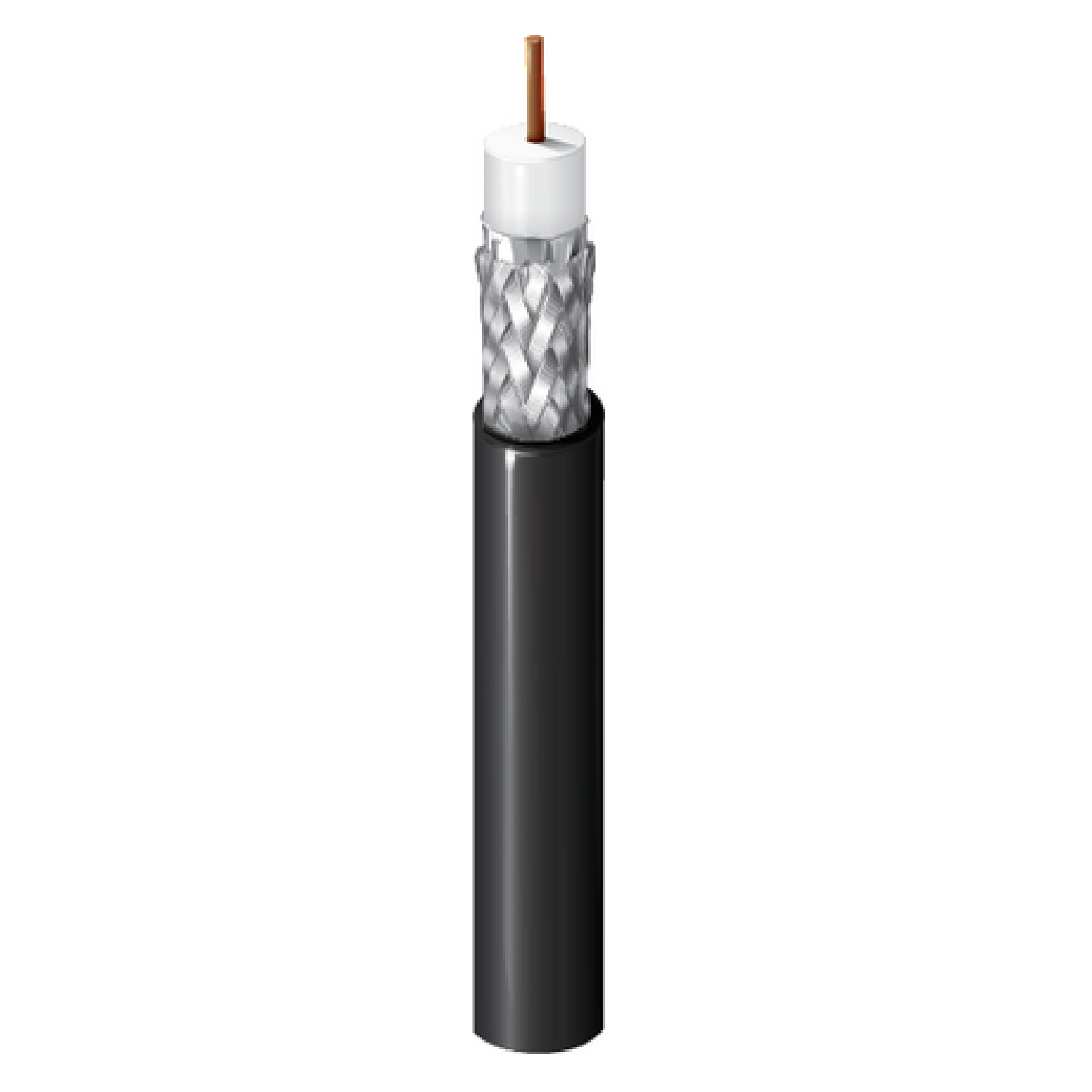

Key Specifications

Suitable Applications

Digital Video, 6 Gb/s UHDTV, HD-SDI 1080p

RG Type

RG6

Plenum Number

1695A

Conductor

Conductor Size

18 AWG

Stranding

Solid

Conductor Diameter

0.040 in

Conductor Material

Bare Copper (BC)

Insulation

Insulation Material

Foamed Polyethylene (PE)

Insulation Diameter

0.180 in

Shield Construction

Shield Layer 1

Tri-Laminate Tape (Aluminum + Poly + Aluminum) - Duofoil®

Shield Layer 1 Coverage

100%

Shield Layer 2

Tinned Copper Braid

Shield Layer 2 Coverage

95%

Jacket

Jacket Material

PVC (Polyvinyl Chloride)

Overall Diameter

0.274 in

Electrical Characteristics

Nominal Impedance

75 Ohms

Nominal Capacitance (Cond-to-Shield)

16.2 pF/ft

Nominal Velocity of Propagation

82%

Conductor DCR

6.4 Ohm / 1000 ft

Outer Shield DCR

3.8 Ohm / 1000 ft

Return Loss

5 MHz – 1600 MHz

23 dB Minimum

1600 MHz – 4500 MHz

21 dB Minimum

4500 MHz – 6000 MHz

15 dB Minimum

Attenuation

1 MHz

0.24 dB / 100 ft

10 MHz

0.71 dB / 100 ft

100 MHz

1.95 dB / 100 ft

270 MHz

3.17 dB / 100 ft

540 MHz

4.50 dB / 100 ft

1000 MHz

6.30 dB / 100 ft

1500 MHz

7.80 dB / 100 ft

2000 MHz

9.20 dB / 100 ft

3000 MHz

11.50 dB / 100 ft

4500 MHz

14.50 dB / 100 ft

6000 MHz

17.70 dB / 100 ft

Voltage Rating

UL Voltage Rating

300 V (CMR, CMG)

Mechanical Characteristics

Operating Temperature

-20°C to +75°C

UL Temperature Rating

60°C

Minimum Bend Radius

2.75 in

Maximum Pull Tension

69 lb

Cable Weight

41 lb / 1000 ft

Standards & Compliance

Environmental Suitability

Indoor / Outdoor, UV Resistant

Flammability Rating

UL1666 Vertical Shaft, FT4

NEC / UL Compliance

CMR

CEC / C(UL) Compliance

CMG

European Compliance

CE, RoHS II, WEEE

APAC Compliance

China RoHS II (GB/T 26572-2011)

Sustainability

CA Prop 65
