Key Specifications

LED Status Indicators

DisplayPort Output x2 (Blue)
Power Input x1 (Blue)

Video Input Interface

1 x DisplayPort Male (Black)

Max Input Distance

15 cm

Video Output Interfaces

2 x DisplayPort Female (Black)

Max Output Distance

Single Output: up to 3 m at 3840×2160@60Hz (4:4:4)

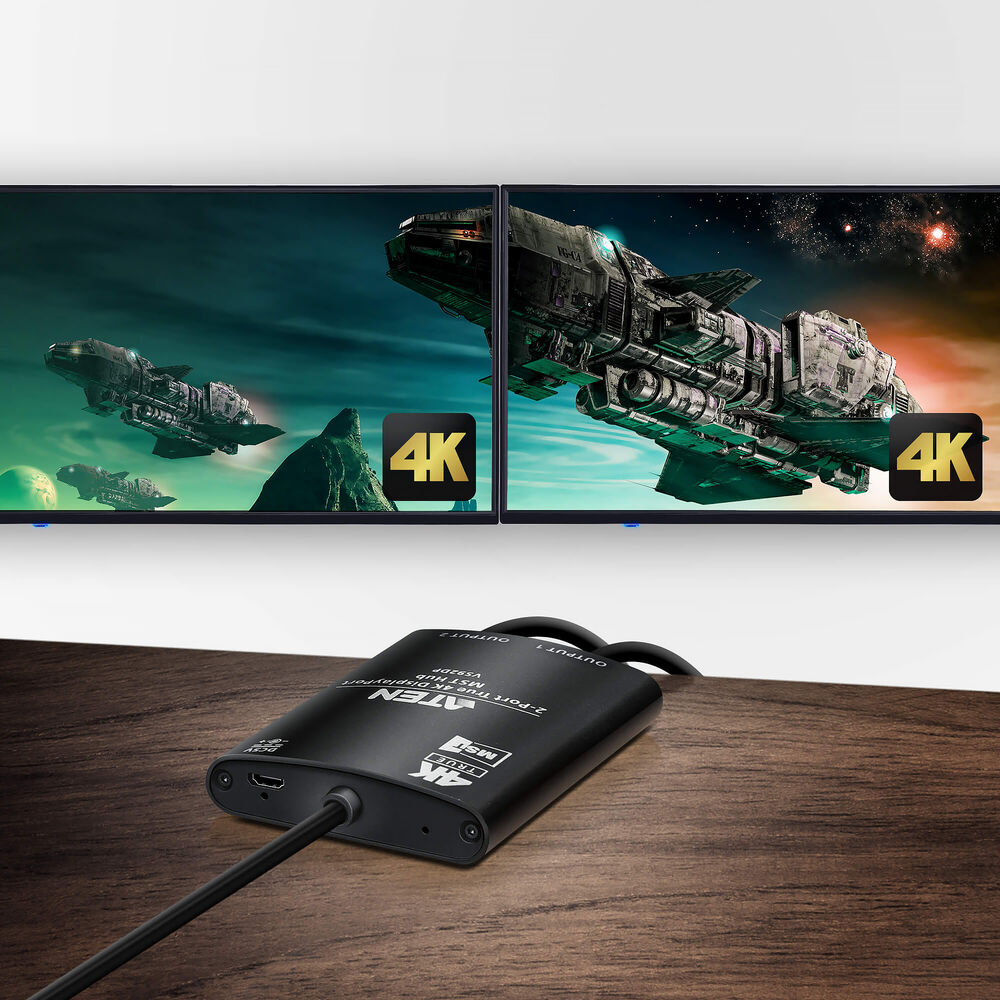

Dual Output (MST/SST): up to 3 m at 3840×2160@30Hz (4:4:4)

Max Data Rate

21.6 Gbps (5.4 Gbps per lane)

DisplayPort Compliance

DisplayPort 1.2 / HDCP 1.3

Max Resolution

Up to 3840 × 2160 @ 60Hz (4:4:4, 8-bit)

Power Consumption

2 W (Max)

Connectors

USB Port

Micro USB (Firmware upgrade & power source)

Environmental

Operating Temperature

0 - 40°C

Storage Temperature

-20 - 60°C

Humidity

0 - 80% RH (Non-condensing)

Physical Properties

Housing

Metal (Aluminum)

Weight

0.09 kg (0.2 lb)

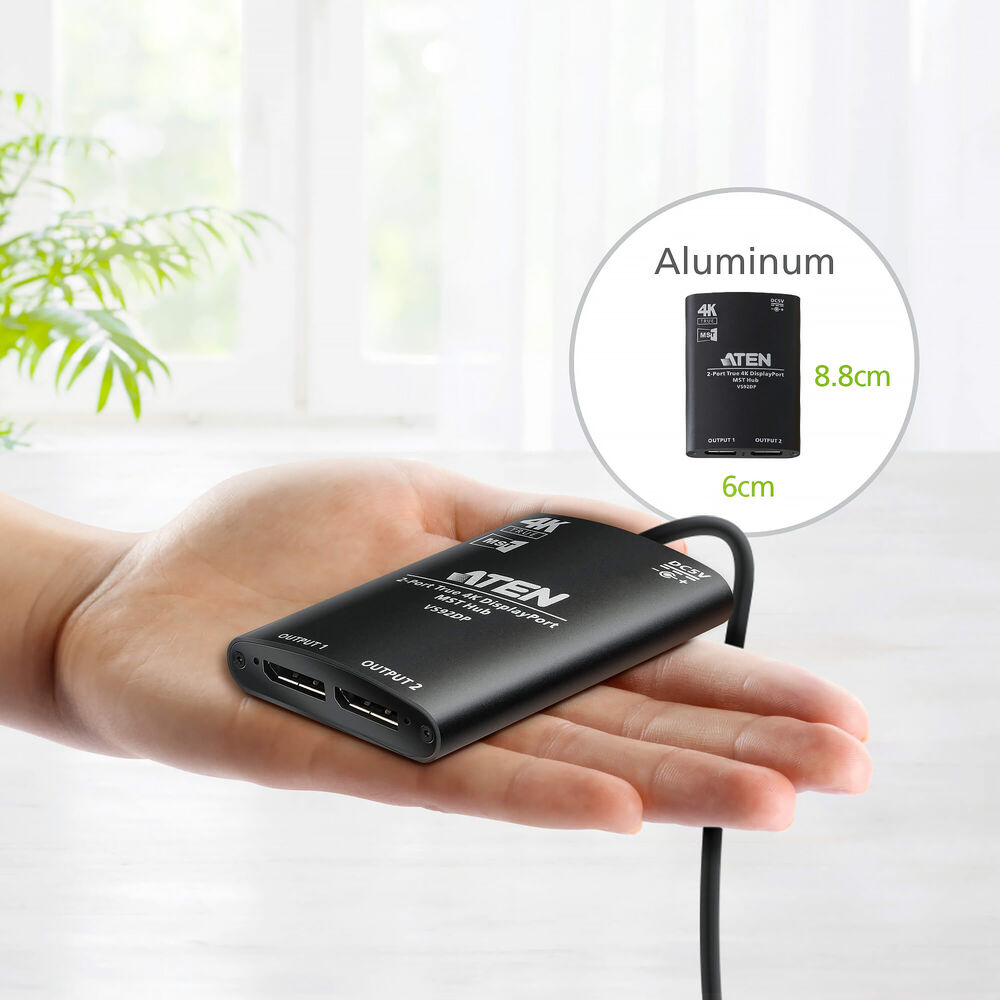

Dimensions

8.80 x 6.00 x 15.00 cm (3.46 x 2.36 x 5.91 in)
