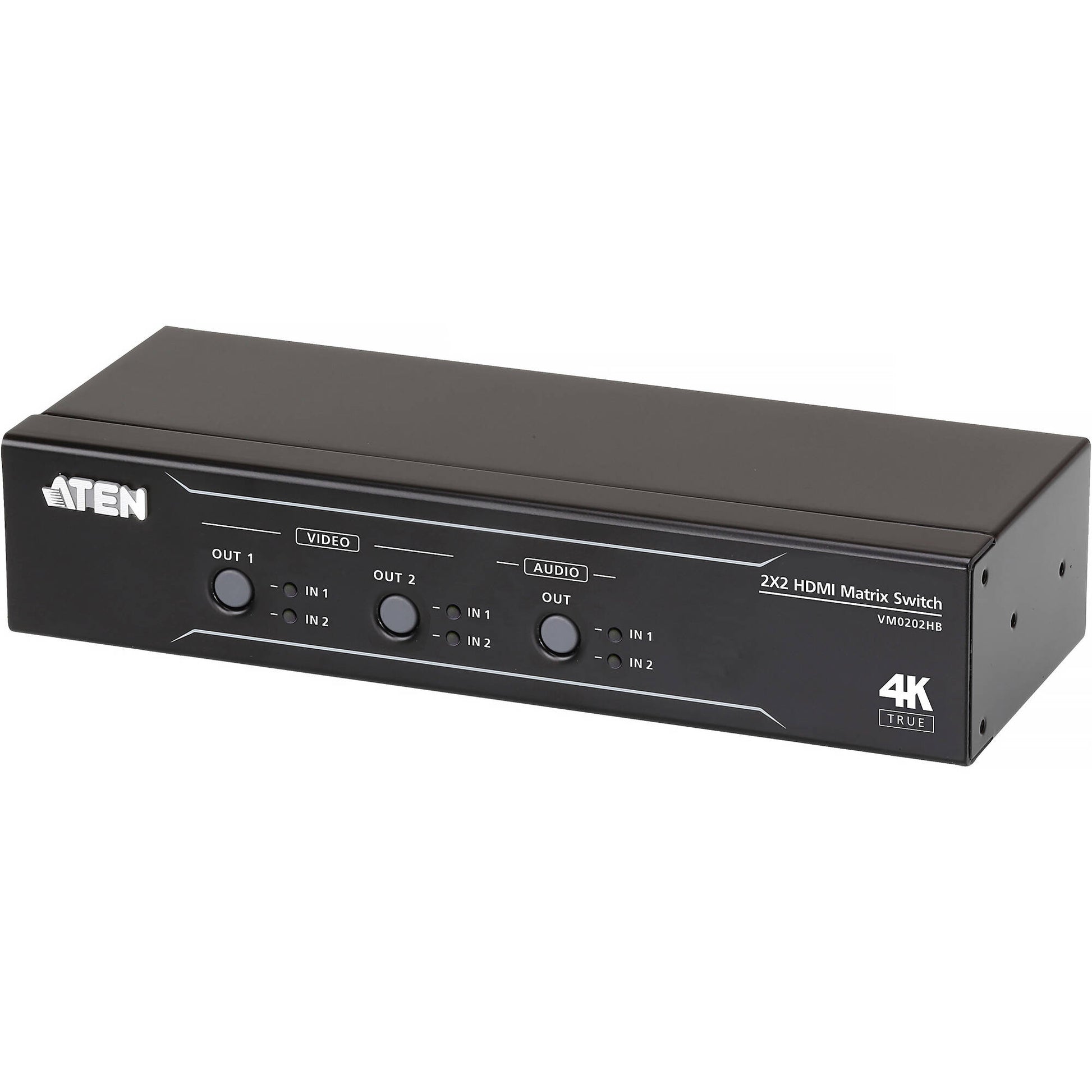

2 x 2 True 4K HDMI Matrix Switch with Audio De-Embedder

PRICE FOR INQUIRY

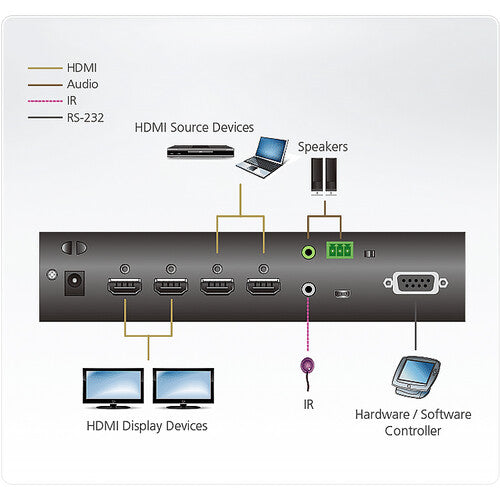

Connects 2 HDMI sources to any 2 HDMI displays
Max. Data Rate 18.0 Gbps (6.0 Gbps Per Lane)
Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4) and HDR
Audio de-embedder – HDMI audio can be extracted to stereo or Lineout audio
Supports Dolby True HD and DTS HD Master Audio
Auto switching – automatically detects and switches to a new source once connected (Default: off)

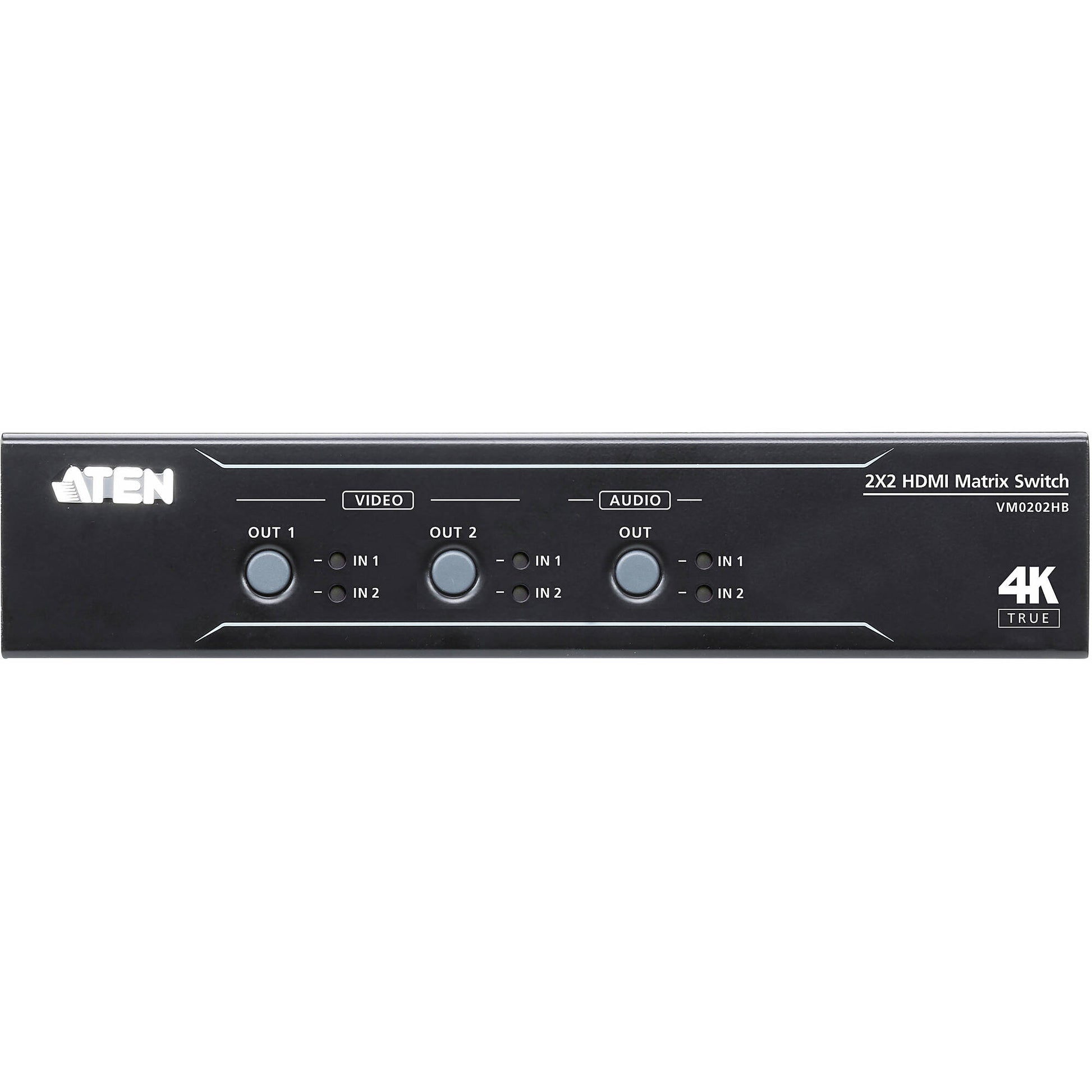

Multiple Control Methods – system management via front-panel pushbuttons, IR remote, and RS-232 serial control
Long-distance transmission up to 5 meters
HDMI (3D, 4K, Deep Color); HDCP 2.2 Compatible
Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control

Price for Inquiry

UNIT: PIECE/S

Product Code: SKU:ATEN-VM0202HB-CHN-1123

Connects 2 HDMI sources to any 2 HDMI displays
Max. Data Rate 18.0 Gbps (6.0 Gbps Per Lane)
Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4) and HDR
Audio de-embedder – HDMI audio can be extracted to stereo or Lineout audio
Supports Dolby True HD and DTS HD Master Audio
Auto switching – automatically detects and switches to a new source once connected (Default: off)
Multiple Control Methods – system management via front-panel pushbuttons, IR remote, and RS-232 serial control
Long-distance transmission up to 5 meters
HDMI (3D, 4K, Deep Color); HDCP 2.2 Compatible
Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

ATEN 2 x 2 True 4K HDMI Matrix Switch with Audio De-Embedder

Key Specifications

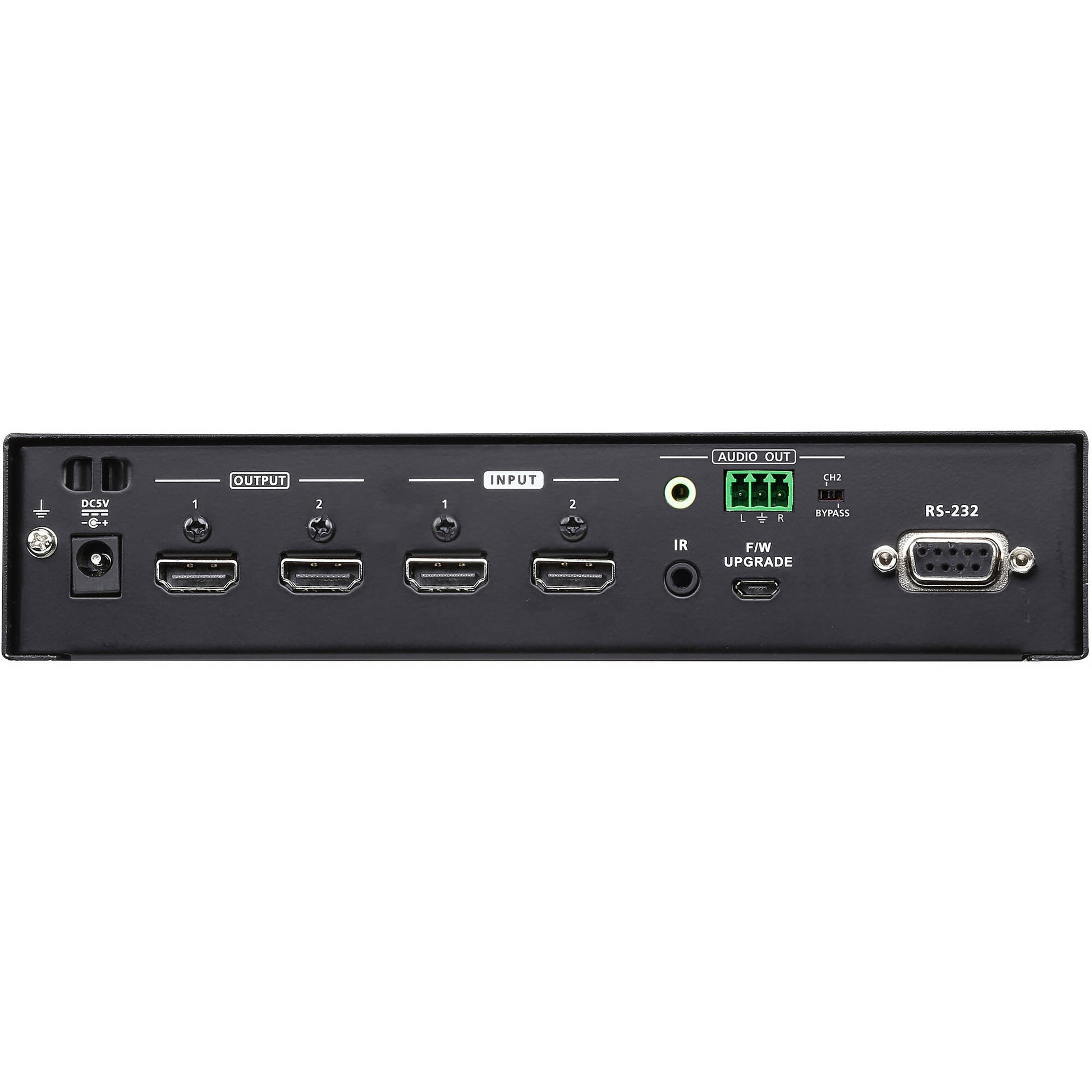

Video Input
Interfaces	2 x HDMI Type A Female (Black)
Impedance	100 Ω
Maximum Distance	5.0 m
Video Output
Interfaces	2 x HDMI Type A Female (Black)
Impedance	100 Ω
Maximum Distance	5.0 m
Video
Maximum Data Rate	18.0 Gbps (6.0 Gbps Per Lane)
Maximum Pixel Clock	600 MHz
Compliance	HDMI (3D, 4K, Deep Color) HDCP 2.2 Compatible Consumer Electronics Control (CEC)
Maximum Resolution	Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Maximum Distance	Up to 5.0 m
Audio
Output	1 x Mini Stereo Jack Female 1 x Captive Screw Connector, 3 Pole
Control
USB	1 x Micro USB Firmware Upgrade
RS-232	Connector: 1 x DB-9 Female (Black) Baud Rate: 19200 Data Bits: 8 Stop Bits: 1 Parity: No Flow Control: No
IR	1 x Mini Stereo Jack Female (Black)
EDID Settings	EDID Mode: Default / Port1 / Remix
Connectors
Power	1 x DC Jack (Black)
Power Consumption	DC5V:2.47W:11BTU/h
Environmental
Operating Temperature	0-40°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.60 kg (1.32 lb)
Dimensions (L x W x H)	20.00 x 7.60 x 4.20 cm (7.87 x 2.99 x 1.65 in.)
Carton Lot	5 pcs
Note	For some rack mount products, the standard physical dimensions of WxDxH are expressed using an LxWxH format.
