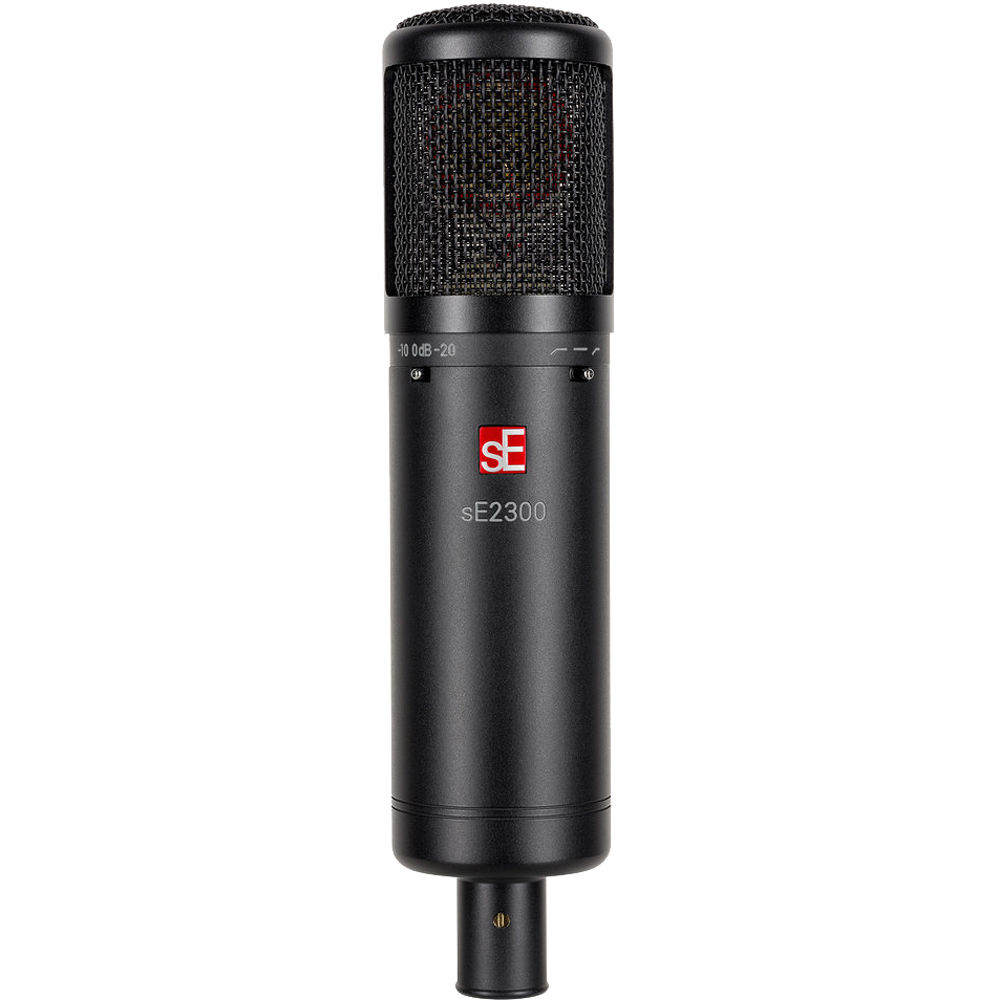

SE ELECTRONICS 2300
SE ELECTRONICS 2300
|
Key Specifications |
|
|
Microphone Type |
Large Diaphragm |
|
Element Type |
Condenser |
|
Polar Pattern |
Cardioid / Figure-8 / Omnidirectional |
|
Sound Field |
Mono |
|

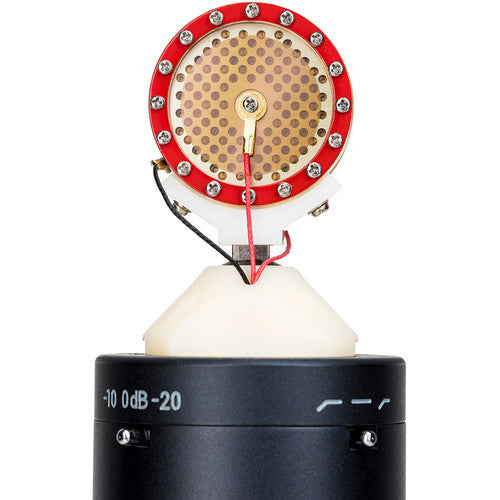

Diaphragm |
1" / 25.4 mm |
|
Orientation |
Side Address |
|
Controls |
Polar Pattern, Pad, Low Cut / HPF |
|
Pad |
-10 / -20 dB |
|
Filter & EQ |
Low-Cut Filter: 80 Hz, 6 dB/Octave / 160 Hz, 6 dB/Octave |
|
Circuitry |
Solid-State |
|
Performance |
|
|
Frequency Response |
20 Hz to 20 kHz |
|
Maximum SPL |
145 dB |
|
Sensitivity |
23.7 mV/Pa |
|
Dynamic Range |
137 dB |
|
Equivalent Noise Level |
9 dB |
|
Connectivity |
|
|
Analog Output |
1x XLR 3-Pin |
|
Power |
|
|
Power Sources |
Phantom Power |
|
Operating Voltage |
48 V |
|
Physical |
|
|
Color |
Black |
|
Mounting Thread Size |
5/8"-27 Female (3/8"-16 Female with Included Adapter) |
|
Dimensions |
ø: 2.01 x L: 8.46" / ø: 51 x L: 215 mm |
|
Weight |
21.55 oz / 611 g |
|
Packaging Info |
|
|
Package Weight |
2.97 lb |
|
Box Dimensions (L × W × H) |
11.05 x 9.25 x 5.3" |
