Key Specifiations

Video Input

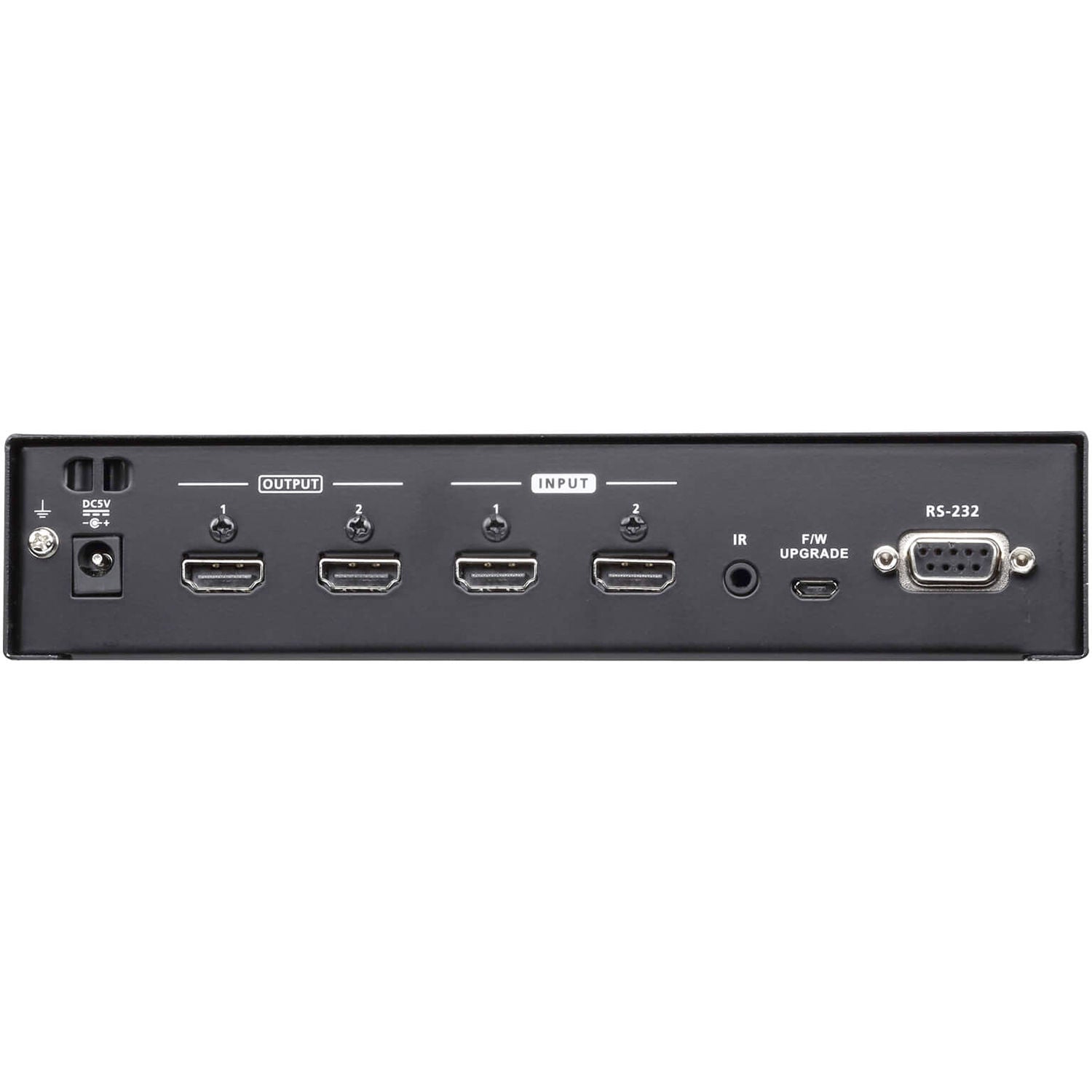

Interfaces

2 x HDMI Type A Female (Black)

Impedance

100 Ohms

Maximum Distance

5.9' (1.8 m)

Video Output

Interfaces

2 x HDMI Type A Female (Black)

Impedance

100 Ohms

Maximum Distance

49' (15 m)

Video

Maximum Data Rate

10.2 Gb/s (3.4 Gb/s per lane)

Maximum Pixel Clock

340 MHz

Maximum Resolution

Up to 4096 x 2160 / 3840 x 2160 at 60 Hz (4:2:0)
4096 x 2160 / 3840 x 2160 at 30 Hz (4:4:4)

Maximum Distance

Up to 49' (15 m)

Compliance

HDMI (3D, 4K, Deep Color)
HDCP 1.4 Compatible
Consumer Electronics Control (CEC)

Control

USB

1 x Micro-USB for Firmware Upgrade

RS-232

Connector: 1 x DB-9 Female (Black)
Baud Rate: 19200
Data Bits: 8
Stop Bits: 1
Parity: No
Flow Control: No

IR Control

1 x Mini Stereo Jack Female (Black)

EDID

EDID Mode: Default / Port1 / Remix

Power

Connector

1 x DC Jack (Black)

Supply

5 VDC

Power Consumption

4.3 W

Environmental

Operating Temperature

32 to 104°F (0 to 40°C)

Storage Temperature

-4 to 140°F (-20 to 60°C)

Humidity

0 to 80% RH, Non-Condensing

General

Material

Metal Housing

Dimensions

7.87 x 2.99 x 1.65" (20 x 7.6 x 4.2 cm)

Weight

1.28 lb (0.58 kg)

Packaging Info

Package Weight

2.3 lb

Box Dimensions (L x W x H)

9.5 x 6.4 x 2.4"
