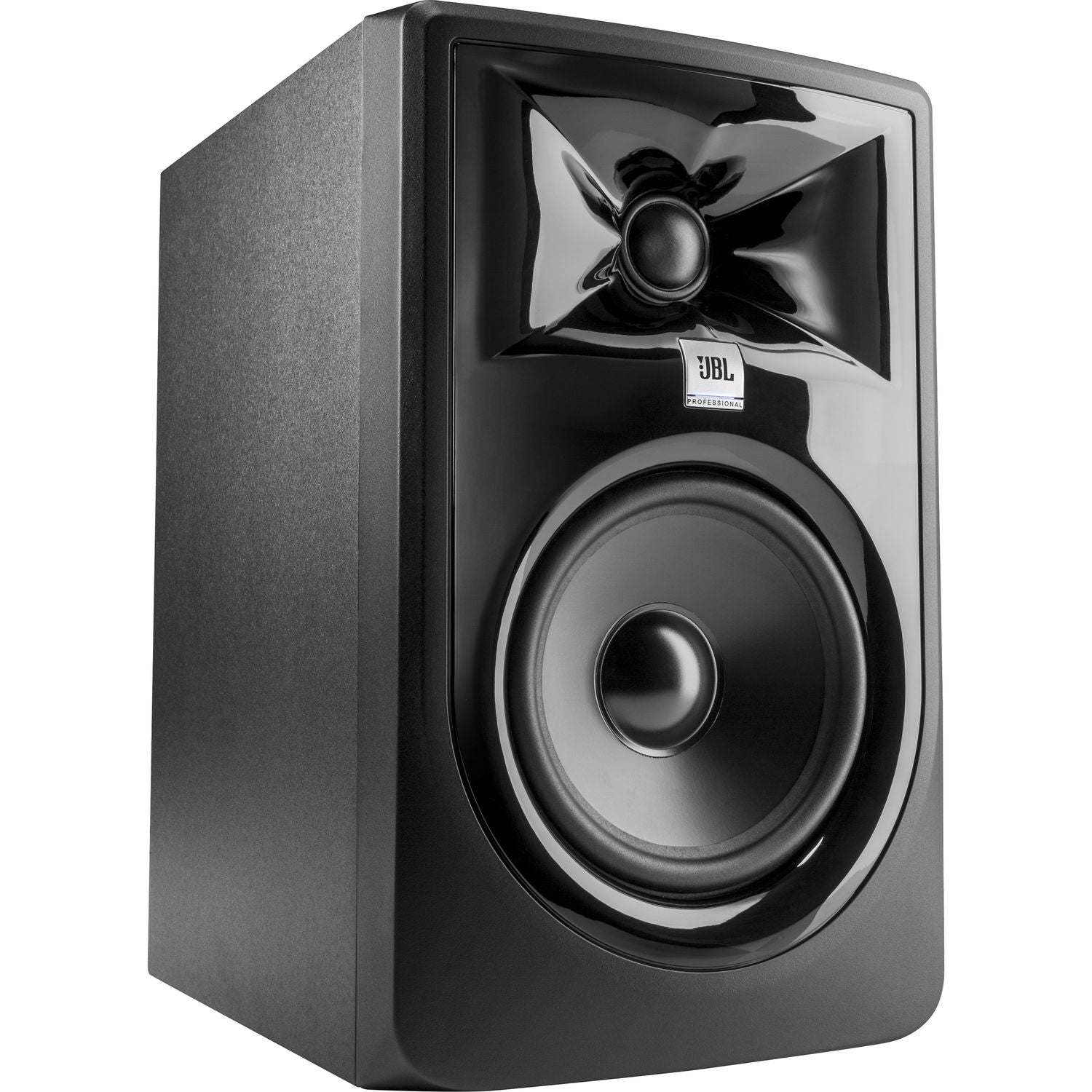

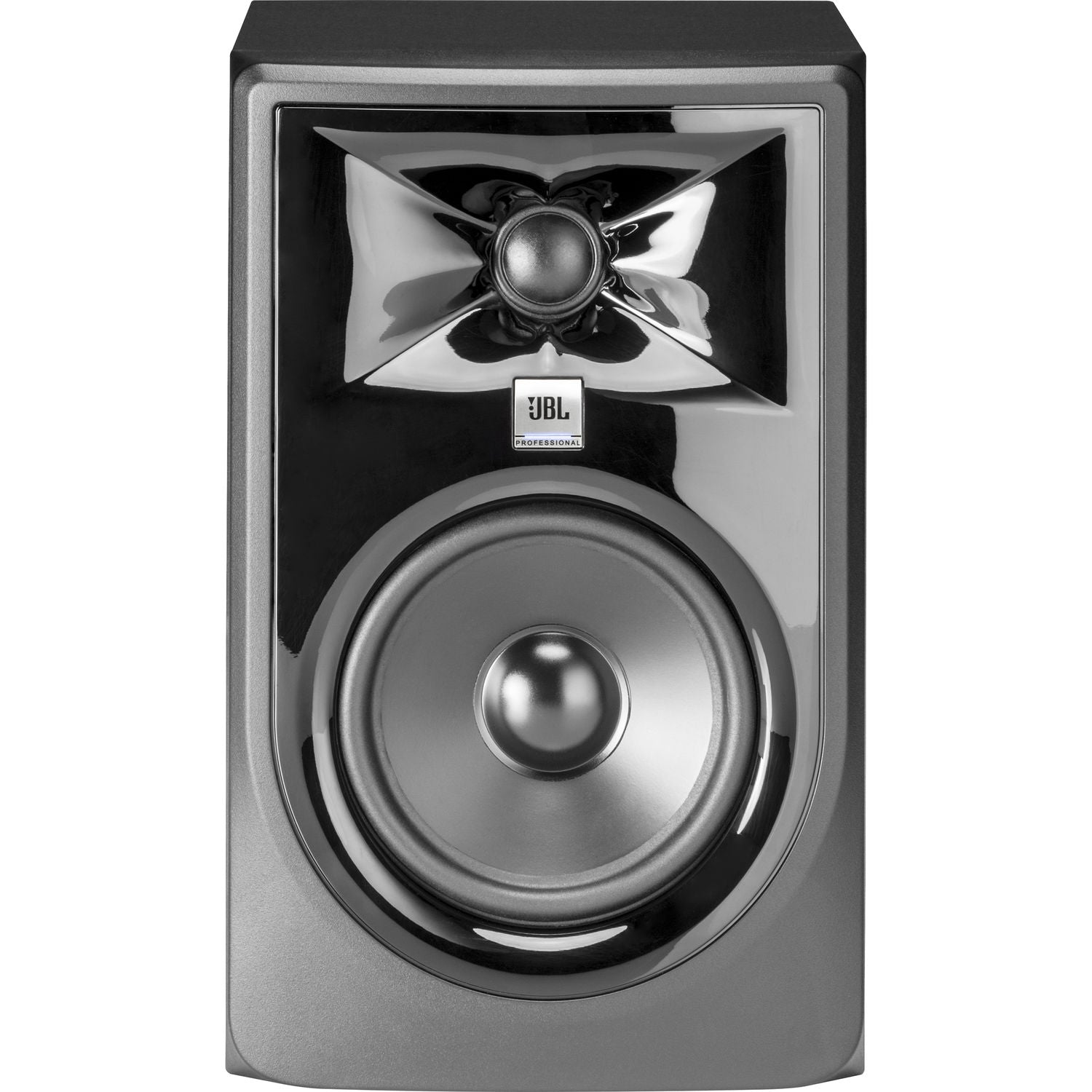

Audio engineers, producers, and musicians looking for a high-quality monitoring solution will be impressed with the JBL 305P MkII Powered 5" Two-Way Studio Monitor, a bi-amplified reference monitor with next-generation drivers, offering high detail, precise imaging, a wide sweet spot, and a remarkable dynamic range to enhance the mix capabilities of any modern workspace. The magnetically shielded 305P MkII features dual 41W Class-D amplifiers, which power the 5" low frequency woofer and woven-composite 1" neodymium tweeter. The combined output of the woofer and tweeter offer a frequency response of 49 Hz to 20 kHz with a peak SPL of 108 dB.
The monitor features JBL's Image Control Waveguide technology for accurate audio reproduction and JBL's Slip Stream port design for improved bass response. The 305P MkII is equipped with a boundary EQ for controlling the low frequency response when placed near a wall, as well as a 3-position HF trim switch. To ensure flexible connectivity, JBL included a balanced XLR input and a balanced 1/4" TRS input, both of which feature detented level controls. Other features include a selectable input sensitivity switch that ensures compatibility with a range of signal sources. The JBL 305P MkII ships with a power cord.
Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot
High-quality JBL transducers for optimized transient response and improved linearity
Patented Slip Stream low-frequency port for superior bass performance at all playback levels
Dual integrated, custom Class-D amplifiers provide 112W of power for high output and dynamic range
Boundary EQ settings compensate for low-frequency variants introduced by the environment
HF Trim switch adjusts high-frequency output to room acoustics or personal preferences

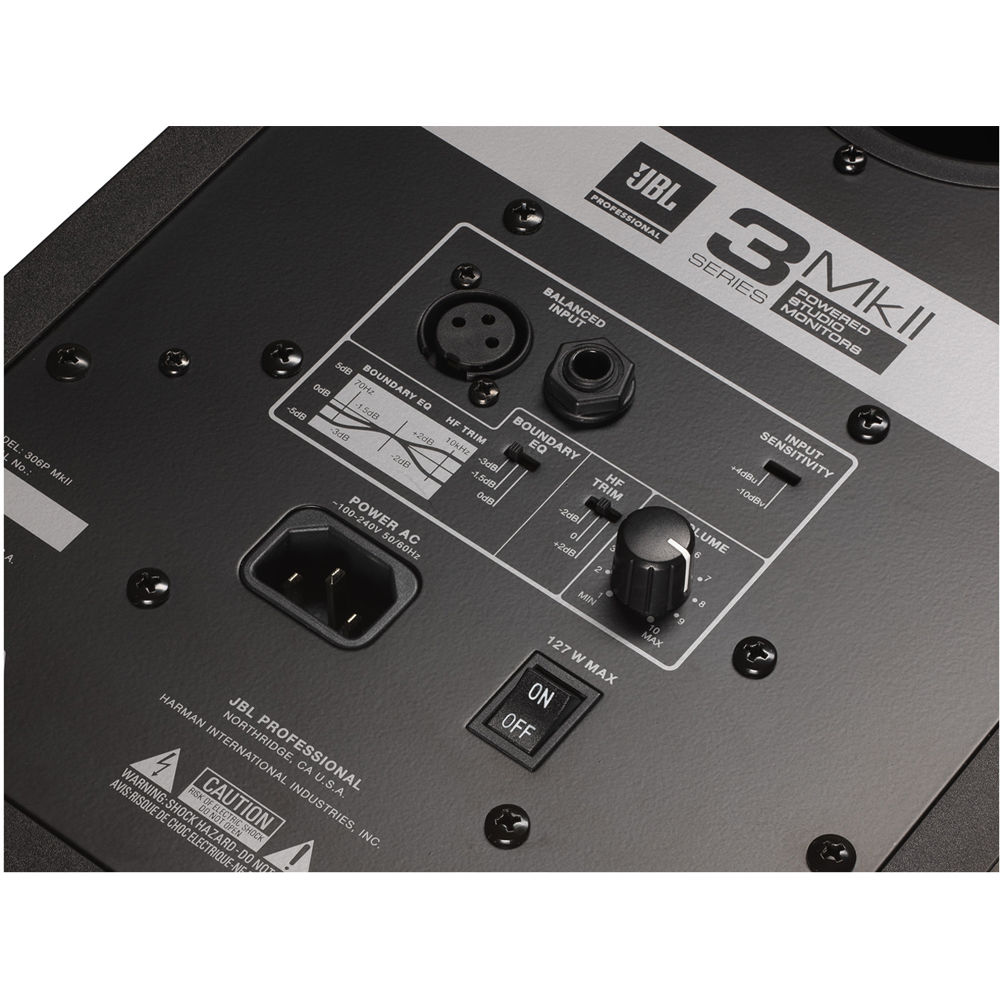

Flexible connectivity with balanced XLR and 1/4" TRS inputs, +4 dBu / -10 dBV input-sensitivity switch and adjustable volume control
Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
Strenuous JBL 100-hour full-power test ensures years of reliability
Sleek, modern design provides a visual upgrade to any studio
JBL 305Pmkii
Key Specifications
Monitor
Monitor Type & Configuration: Active 2-Way
Total Power Output: 82 W
Number of Included Monitors: Single Monitor
Enclosure: Bass-Reflex/Ported, Shielded
Drivers per Monitor
Tweeter: 1x 1" / 25.4 mm Dome
Woofer: 1x 5" / 12.7 cm Cone
Amplifiers
HF: 41 W Class-D
LF: 41 W Class-D
Performance
Frequency Range: 43 Hz to 24 kHz (-10 dB)
Frequency Response: 49 Hz to 20 kHz ± 3 dB
Maximum Sound Pressure Level (SPL): 108 dB
Signal-to-Noise Ratio: 75 dBA
Total Harmonic Distortion (THD): <10%
Maximum Input Level: +20.3 dBu (Balanced), +6 dBV (Unbalanced)
Protections and Limiting: Peak Limiter
Signal Processing
EQ: HF Shelf, LF Shelf
Crossover Frequency: 1725 Hz, 24 dB/Octave Slope
Connectivity
Audio I/O: 1x XLR 3-Pin Balanced Line Input, 1x 1/4" TRS Balanced Line Input
Digital Audio I/O: No
Network I/O: No
USB: No
Wireless: No
Mobile App Compatible: No
Power
AC Input Power: 100 to 240 VAC, 50/60 Hz
Physical
Color: Black
Monitor Orientation: Vertical
Enclosure Material: ABS, MDF
Mounting Points: No
Dimensions (W x H x D): 7.3 x 11.7 x 9.1" / 185.4 x 297.2 x 231.1 mm
