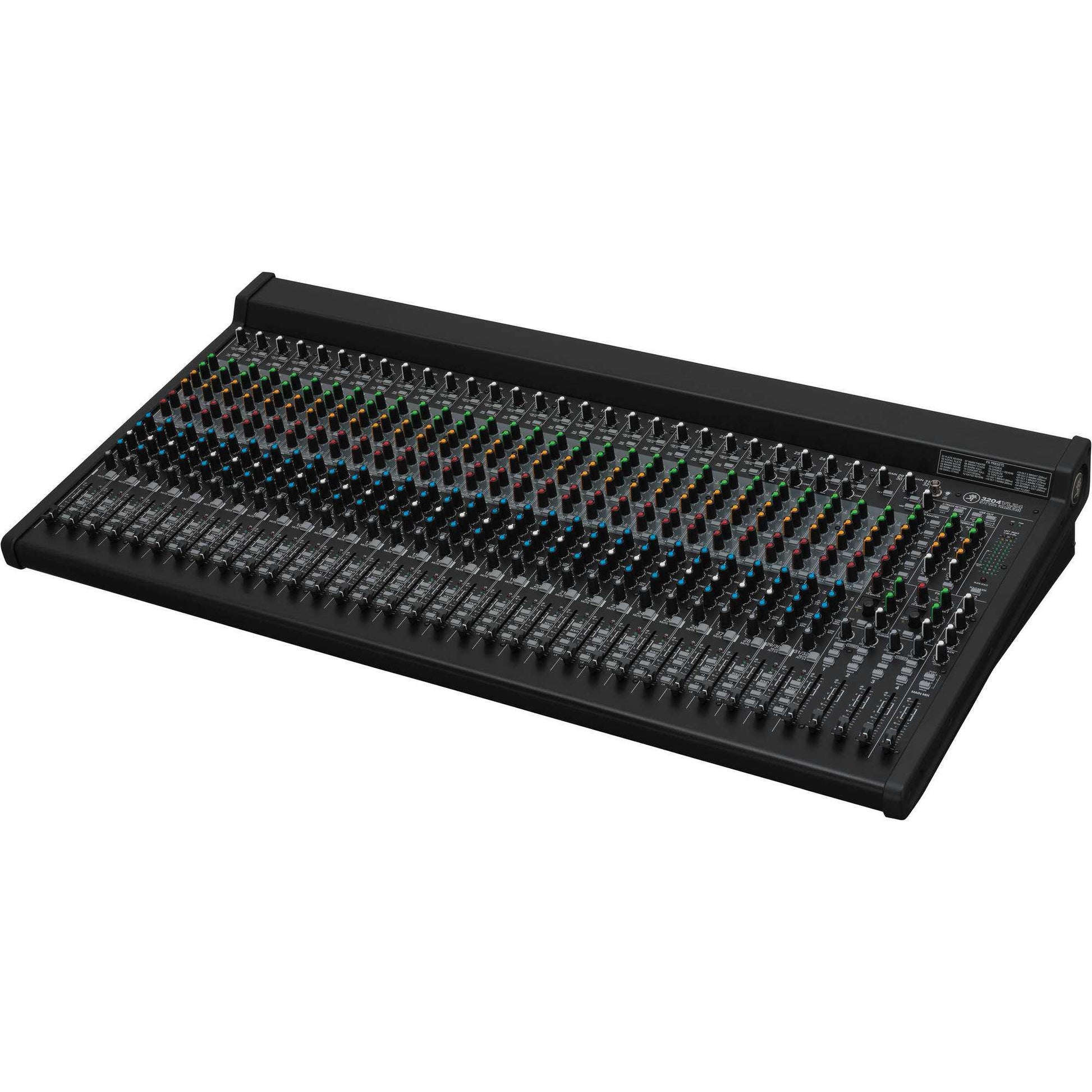

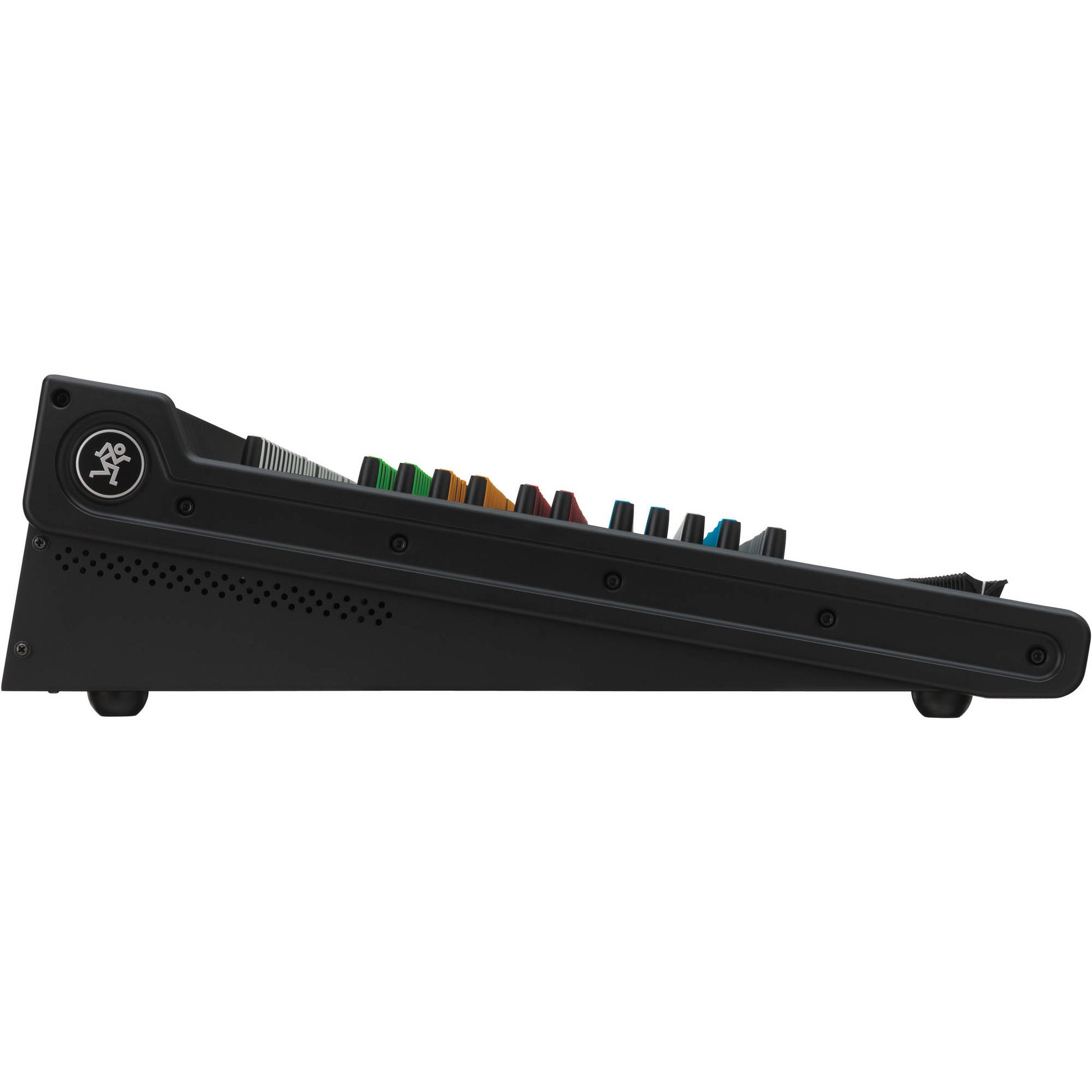

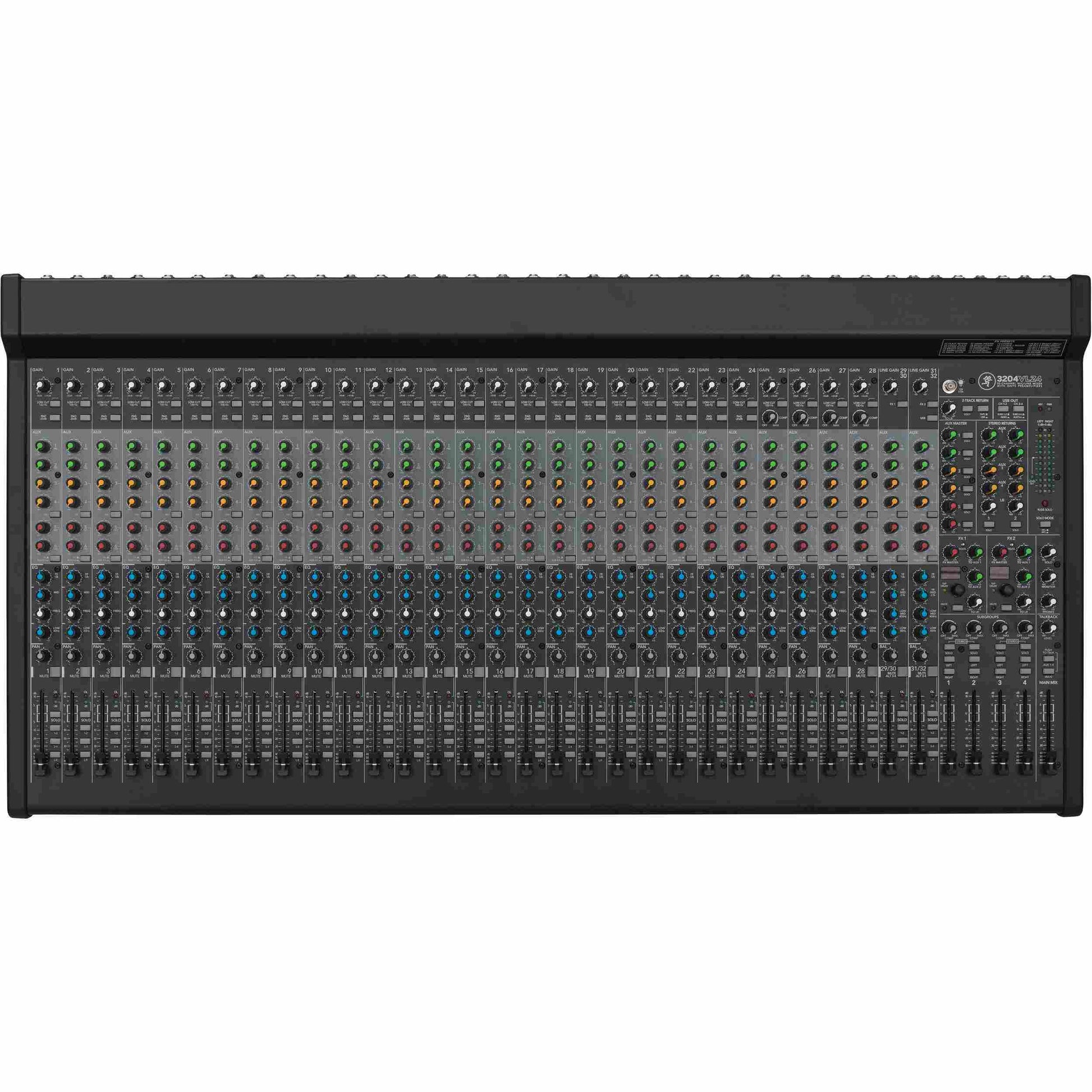

The Mackie 3204VLZ4 32-Channel 4-Bus FX Mixer with USB from the VLZ4 4-Bus Series features Onyx microphone preamps in a high-headroom / low-noise 4-bus design with a feature set suitable for live sound. The mixer is equipped with dual 32-bit RMFX+ effect processors, each with 24 effects including tap delay. It also includes compression on dedicated channels and subgroups that allow for simple, sweet dynamic control.
Additionally, both of the FX processors feature a tap delay and the delays may easily be synchronized with the song at the tap of a finger. The processed signal may be sent directly to the mains and monitors from the effects section or re-routed to the 2 stereo channels to bring them through the EQ and AUX section, utilizing the 60mm fader to draw them into the mix.
The 32-channel, 4-bus FX mixer has 8 single-knob compressors to stop the dynamic signals from poking out of the mix. There are 4 compressors are located on the last 4 microphone inputs so that critical signals (such as vocals, snare drum, guitar or keyboards) may be addressed. In addition, there are single-knob compressors on each of the 4 subgroups so that grouped signals (such as a drum set or a choir of vocalists) may be blended together for paramount smoothness.
This mixer also features a 4 x 2 USB recording and playback function. This means that up to 4 signals may be recorded simultaneously and a stereo mix returned to the mixer for playback. Its built-like-a-tank construction delivers years of reliable use under strenuous conditions. The VLZ4 4-Bus Series offers a compact FX mixer solution in a design that’s flexible, rugged, and professional.
MACKIE 3204-VLZ4
Key Specification
Model
3204-VLZ4
Noise
Main Mix Noise: Main Mix Fader @ Unity, Channel Faders Down: -84.5 dBu (-88.5 dB SNR, ref +4 dBu) Main Mix Fader @ Unity, Channel Faders @ Unity: -80 dBu (20 Hz–20 kHz, 1/4" main out, gains @ unity, EQs flat, odd L / even R)
Total Harmonic Distortion (THD)
Mic In → Insert Send: <0.001% Mic In → Main Out: <0.005% (1 kHz @ 15 dB gain, 20 Hz–20 kHz)
Crosstalk / Attenuation
Channel Mute Engaged: -90 dBu Channel Fader Down: -88 dBu (1 kHz relative to +10 dBu, 20 Hz–20 kHz, mic in, 1/4" main out)
Frequency Response
Mic In → Main Out (Unity Gain): +0/-1 dB, 20 Hz–50 kHz +0/-3 dB, <10 Hz–>100 kHz
Equivalent Input Noise
150 Ω Termination: -128.5 dBu (20 Hz–20 kHz, mic in → insert send, max gain)
Common Mode Rejection Ratio
Better than -70 dB @ 1 kHz
Maximum Level
Mic In: +21 dBu All Other Inputs: +21 dBu Main Mix XLR Out: +27 dBu All Other Outputs: +21 dBu
Impedance
Mic In: 2.7 kΩ Channel Insert Return: 2.5 kΩ All Other Inputs: ≥10 kΩ Tape Out: <10 Ω All Other Outputs: 120 Ω
Equalizer
Mono Channels (3-Band): High: ±15 dB @ 12 kHz Mid: ±15 dB sweep 100 Hz–8 kHz Low: ±15 dB @ 80 Hz Low-Cut: 18 dB/oct, -3 dB @ 100 Hz
Stereo Channels (4-Band): High: ±15 dB @ 12 kHz Hi-Mid: ±15 dB @ 2.5 kHz Low-Mid: ±15 dB @ 400 Hz Low: ±15 dB @ 80 Hz
