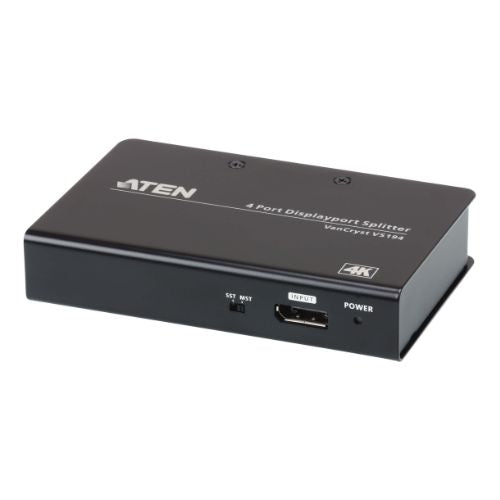

4-port True 4K DisplayPort Splitter
4-port True 4K DisplayPort Splitter
ATEN
Price for Inquiry
UNIT: PIECE/S
Product Code: SKU:ATEN-VS194-CHN-7953
Key Features
ATEN 4-port True 4K DisplayPort Splitter
ATEN 4-port True 4K DisplayPort Splitter
|
Key Specifications |
|
|
Video Output Interfaces |
4 x DisplayPort Female (Black) |
|
Max Output Distance |
4.6 m at 4096 × 2160 / 3840 × 2160 @ 60Hz |
|
Video Input Interface |
1 x DisplayPort Female (Black) |
|
Max Input Distance |
4.6 m at 4096 × 2160 / 3840 × 2160 @ 60Hz |
|
DisplayPort Compliance |
DP 1.2a; HDCP 1.3 |
|
Max Resolution |
Up to 4096 × 2160 / 3840 × 2160 @ 60Hz |
|
Max Data Rate |
21.6 Gbps (5.4 Gbps per lane) |
|
Power Consumption |
DC 5V: 3.36W (44 BTU/h) |
|
Connectors |
|
|
Power |
1 x DC Jack |
|
Environmental |
|
|
Operating Temperature |
0 - 40°C |
|
Storage Temperature |
-20 - 60°C |
|
Humidity |
0 - 80% RH (Non-Condensing) |
|
Physical Properties |
|
|
Housing |
Metal |
|
Weight |
0.33 kg (0.73 lb) |
|
Dimensions |
12.50 x 8.00 x 2.50 cm (4.92 x 3.15 x 0.98 in.) |
|
Carton Lot |
20 pcs |
ATEN 4-port True 4K DisplayPort Splitter Accessories
- No accessories available.
