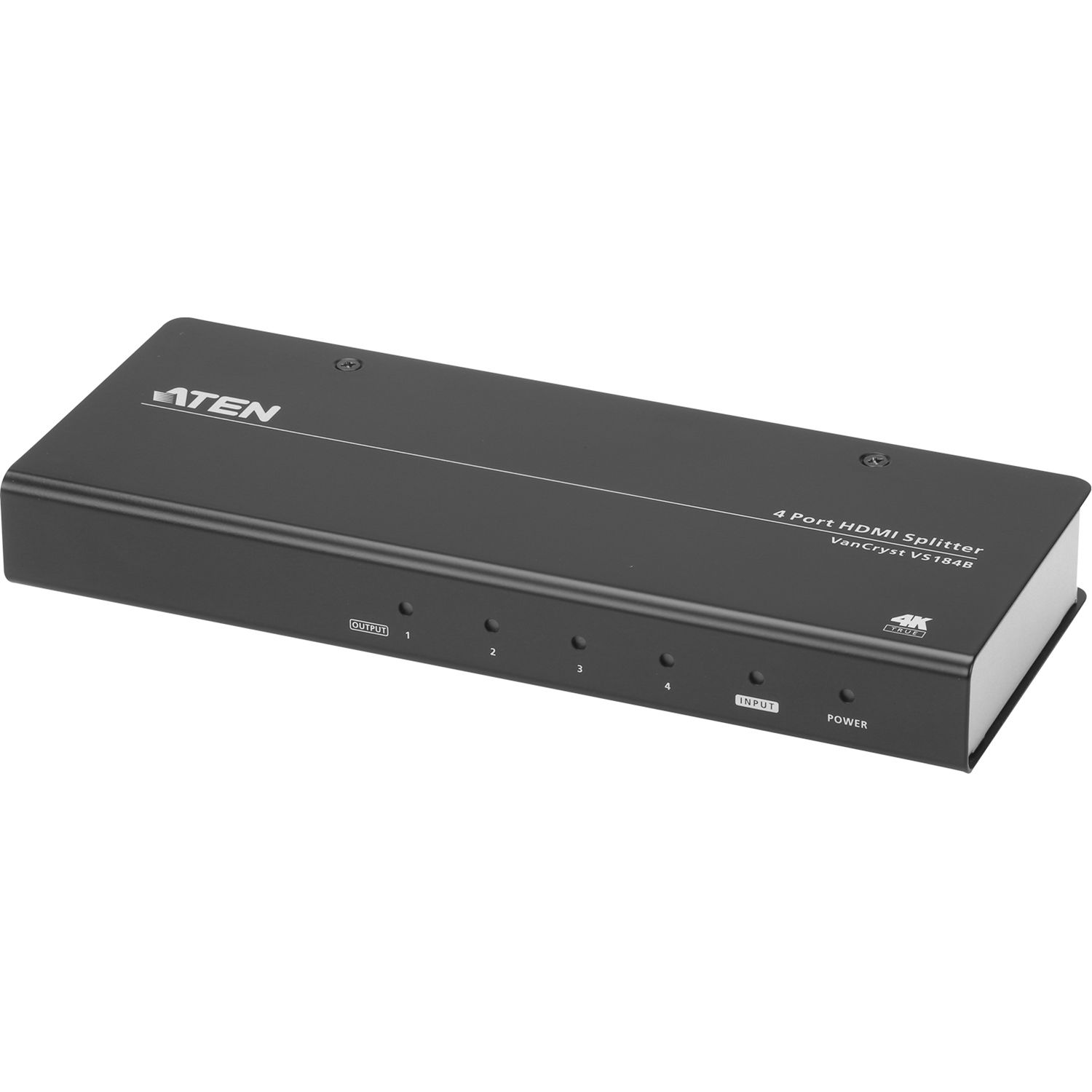

4-Port True 4K HDMI Splitter
4-Port True 4K HDMI Splitter
ATEN
Price for Inquiry
UNIT: PIECE/S
Product Code: SKU:ATEN-VS184B-CHN-5980
Key Features
ATEN 4-Port True 4K HDMI Splitter
ATEN 4-Port True 4K HDMI Splitter
|
Key Specifications |
|
|
Video Input Interfaces |
1 x HDMI Type A Female (Black) |
|
Impedance |
100 Ω |
|
Max Input Distance |
5 m at 4K@60Hz (4:4:4) |
|
Video Output Interfaces |
4 x HDMI Type A Female (Black) |
|
Max Output Distance |
5 m at 4K@60Hz (4:4:4) |
|
Max Data Rate |
18 Gbps (6 Gbps per lane) |
|
Max Pixel Clock |
600 MHz |
|
HDMI Compliance |
HDMI 2.0 (3D, Deep Color, 4K) |
|
Max Resolution |
Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
|
Audio Input |
1 x HDMI Type A Female (Black) |
|
Audio Output |
4 x HDMI Type A Female (Black) |
|
Power & Environment |
|
|
Power Connector |
1 x DC Jack |
|
Power Consumption |
DC 5V: 4.84W (23 BTU/h) |
|
Operating Temperature |
0 - 40°C |
|
Storage Temperature |
-20 - 60°C |
|
Humidity |
0 - 80% RH (Non-Condensing) |
|
Physical |
|
|
Housing |
Metal |
|
Weight |
0.48 kg (1.06 lb) |
|
Dimensions |
20.00 x 8.00 x 2.50 cm (7.87 x 3.15 x 0.98 in) |
ATEN 4-Port True 4K HDMI Splitter Accessories
- No accessories available.
