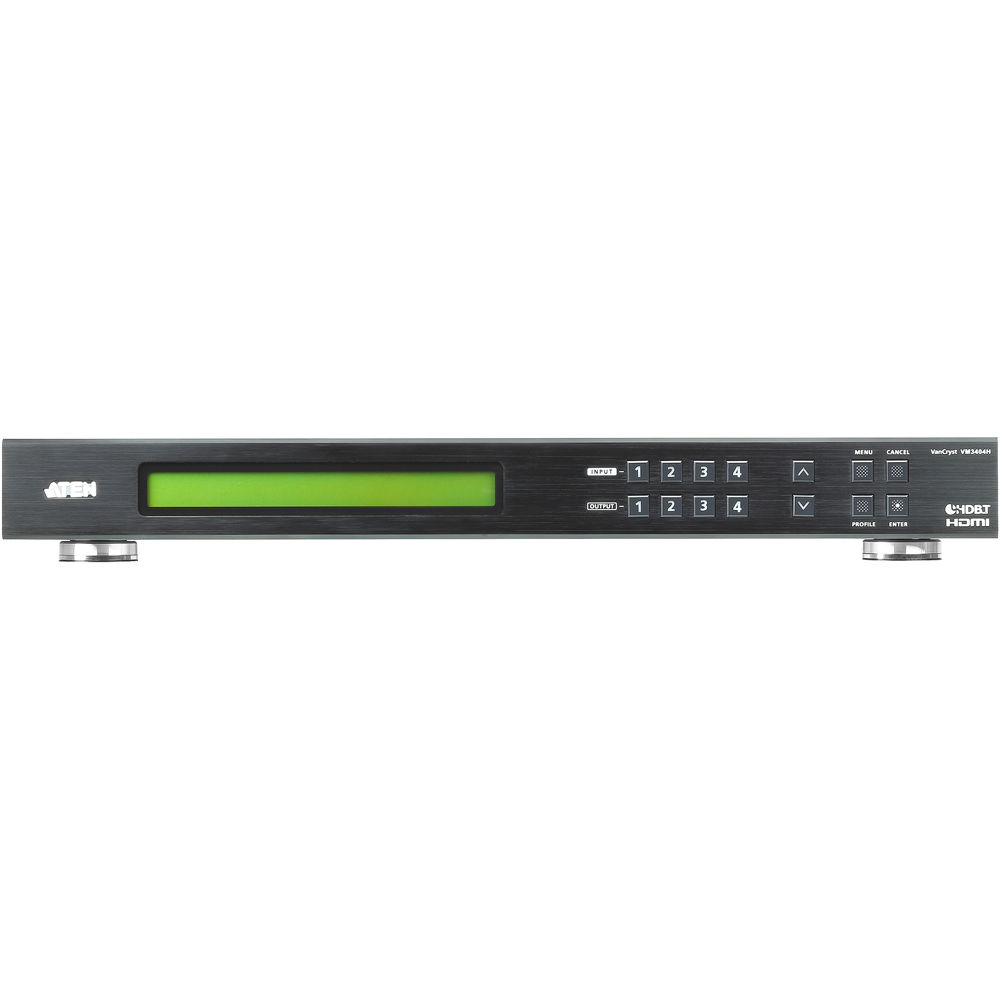

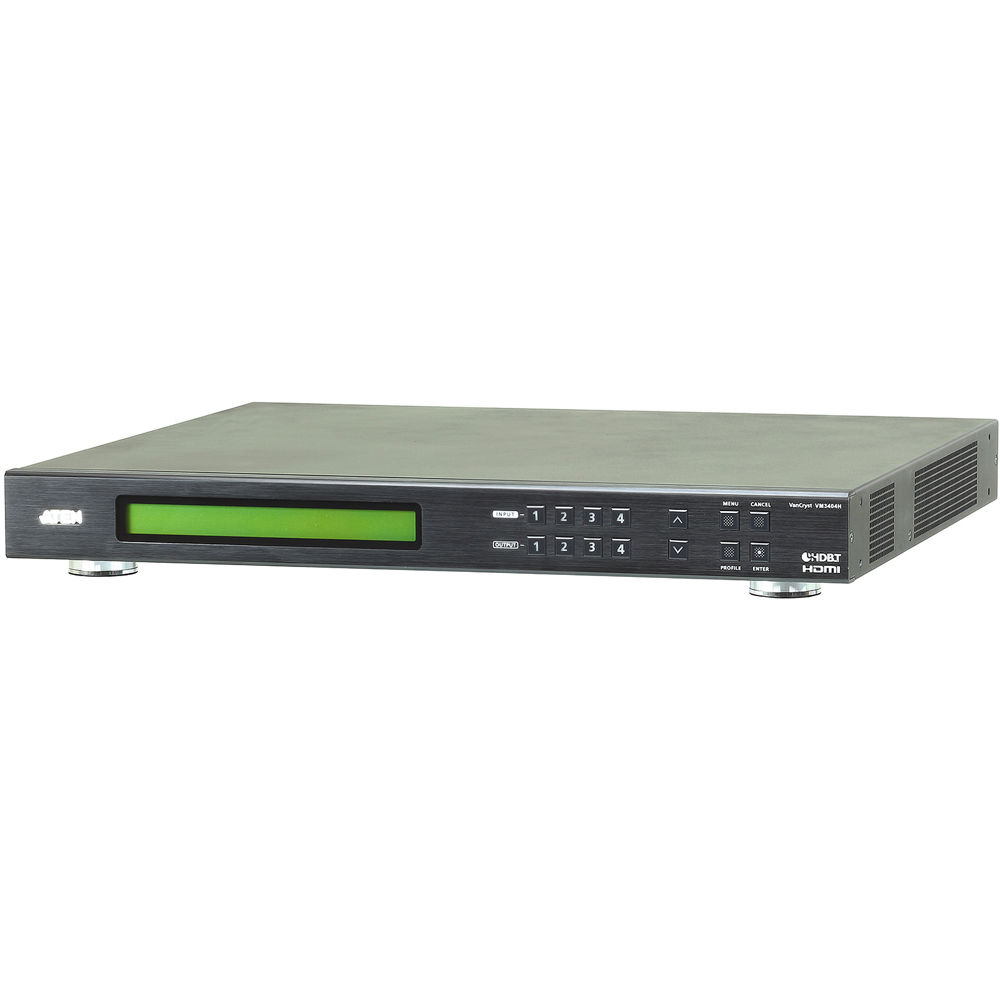

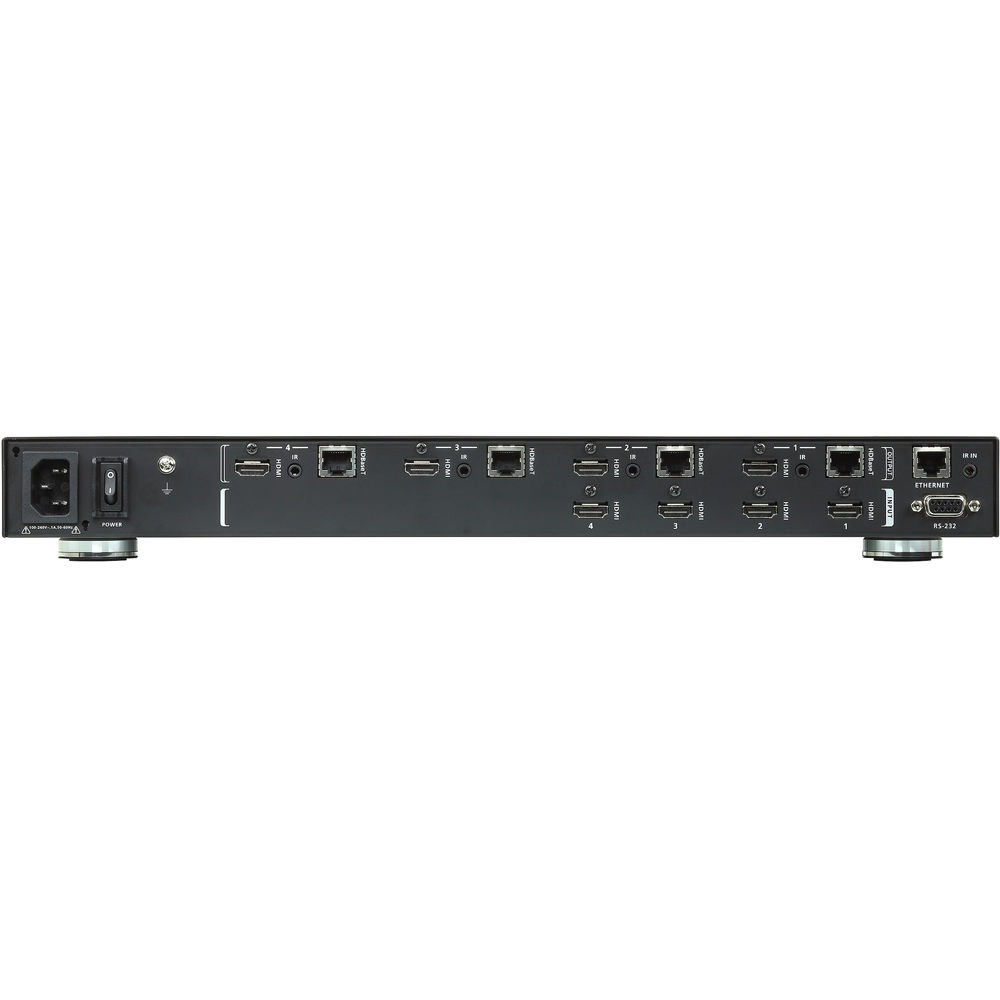

4 x 4 4K HDMI HDBaseT-Lite Matrix Switch

PRICE FOR INQUIRY

Supports 4 HDMI inputs and mirrored 4 HDMI and HDBaseT outputs
The mirrored HDMI outputs can be used to verify the corresponding HDBaseT output or as an additional video display*
HDBaseT Connectivity – connects HDMI displays over a long distance via one Cat 5e/6/6a cable
HDBaseT Anti-jamming – resists signal interference during high-quality video transmission
Power over HDBaseT (POH) – supplies power over a long distance from the switch to a receiver over a single Cat 5e/6/6a cable

Price for Inquiry

UNIT: PIECE/S

Product Code: SKU:ATEN-VM3404H-CHN-4689

Supports 4 HDMI inputs and mirrored 4 HDMI and HDBaseT outputs
The mirrored HDMI outputs can be used to verify the corresponding HDBaseT output or as an additional video display*
HDBaseT Connectivity – connects HDMI displays over a long distance via one Cat 5e/6/6a cable
HDBaseT Anti-jamming – resists signal interference during high-quality video transmission
Power over HDBaseT (POH) – supplies power over a long distance from the switch to a receiver over a single Cat 5e/6/6a cable

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

ATEN 4 x 4 4K HDMI HDBaseT-Lite Matrix Switch

Key Specifications
Video Input
Interfaces	4 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	3.0 m
Video Output
Interfaces	4 x HDMI Type A Female (Black) 4 x RJ-45 Female
Impedance	100 Ω
Max. Distance	HDMI: up to 15 m HDBaseT (Class B): 4K up to 35 m (Cat 5e/6) / 40 m (Cat 6a) 1080p up to 60 m (Cat 5e/6) / 70 m (Cat 6a)
Control
RS-232	Connector: 1 x DB-9 Female (Black) Baud Rate: 19200 Data Bits: 8 Stop Bits: 1 Parity: No Flow Control: No
IR Channel	4 x Mini Stereo Jack Female (Black) 30~60 KHz full range transmission
Ethernet	1 x RJ-45 Female
EDID Settings	EDID Mode: Default / Port 1 / Remix / Customized
Video
Max. Data Rate	10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock	340 MHz
Compliance	HDMI (3D, Deep Color, 4K) HDCP 1.4 Compatible Consumer Electronic Control (CEC) HDBaseT Compatible
Max. Resolution	Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0) 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Max. Distance	Up to 70 m
Connectors
Power	1 x 3-Prong AC Socket
Carton Lot	1 pc
Environmental
Operating Temperature	0-50°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Power
Power Consumption	AC110V: 62W : 291BTU/h AC220V: 60.6W : 284BTU/h
Maximum Input Power Rating	100-240 VAC; 50-60 Hz; 1.0A
Physical Properties
Housing	Metal
Weight	5.62 kg (12.38 lb)
Dimensions (L x W x H)	43.24 x 38.23 x 4.40 cm (17.02 x 15.05 x 1.73 in.)
Note
Additional Information	For rack mount products, standard physical dimensions are expressed using L x W x H format.
