Key Specifications

Video Input

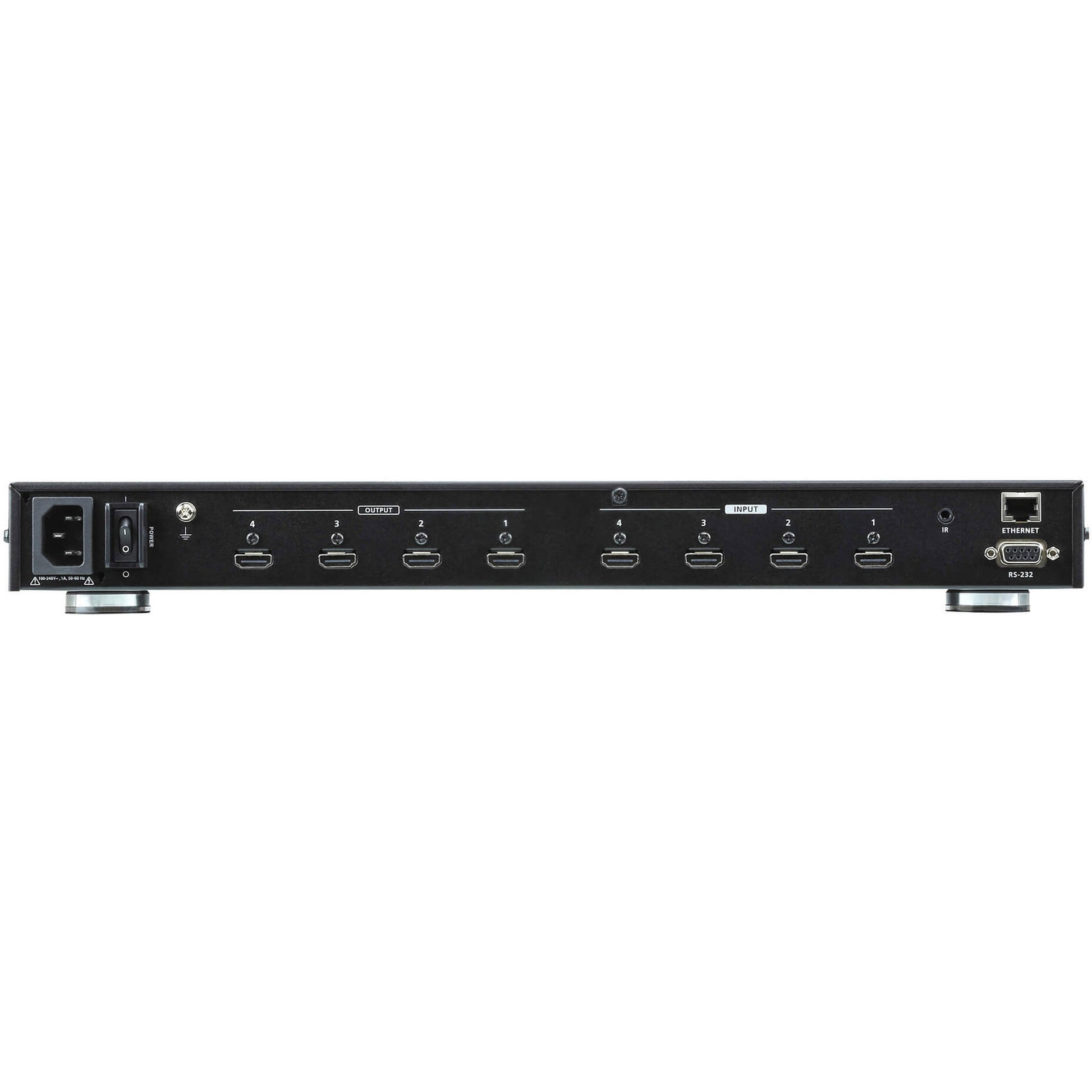

Interfaces

4 x HDMI Type A Female (Black)

Impedance

100 Ω

Maximum Distance

5.0 m / 4K@60Hz (4:4:4)

Video Output

Interfaces

4 x HDMI Type A Female (Black)

Maximum Distance

5m / 4K@60Hz (4:4:4)
15m / 1920 x 1200

Impedance

100 Ω

Video

Maximum Pixel Clock

600 MHz

Maximum Resolution

Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)

Maximum Data Rate

18 Gbps (6 Gbps Per Lane)

Compliance

HDMI (3D, 4K, Deep Color)
HDCP 2.2 Compatible
Consumer Electronics Control (CEC)

Control

RS-232

Connector: 1 x DB-9 Female (Black)
Baud Rate: 19200
Data Bits: 8
Stop Bits: 1
Parity: No
Flow Control: No

IR

1 x Mini Stereo Jack Female (Black)

Ethernet

1 x RJ-45 Female

EDID Settings

EDID Mode: Default / Port 1 / Remix / Customized
(EDID Wizard Support)

Environmental

Operating Temperature

0-40°C

Humidity

0 - 80% RH, Non-Condensing

Storage Temperature

-20 - 60°C

Physical Properties

Weight

2.47 kg (5.44 lb)

Housing

Metal

Dimensions (L x W x H)

43.72 x 15.28 x 4.40 cm
(17.21 x 6.02 x 1.73 in.)

Connectors

Power

1 x 3-Prong AC Socket

Carton Lot

1 pc

Power Consumption

AC110: 17.8W:83BTU/h
AC220: 17.6W:83BTU/h

Power

Maximum Input Power Rating

100-240 VAC; 50-60 Hz; 1.0A

Note

The measurement in Watts indicates the typical power consumption of the device with no external loading.
The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

For some rack mount products, the standard physical dimensions of WxDxH are expressed using an LxWxH format.
