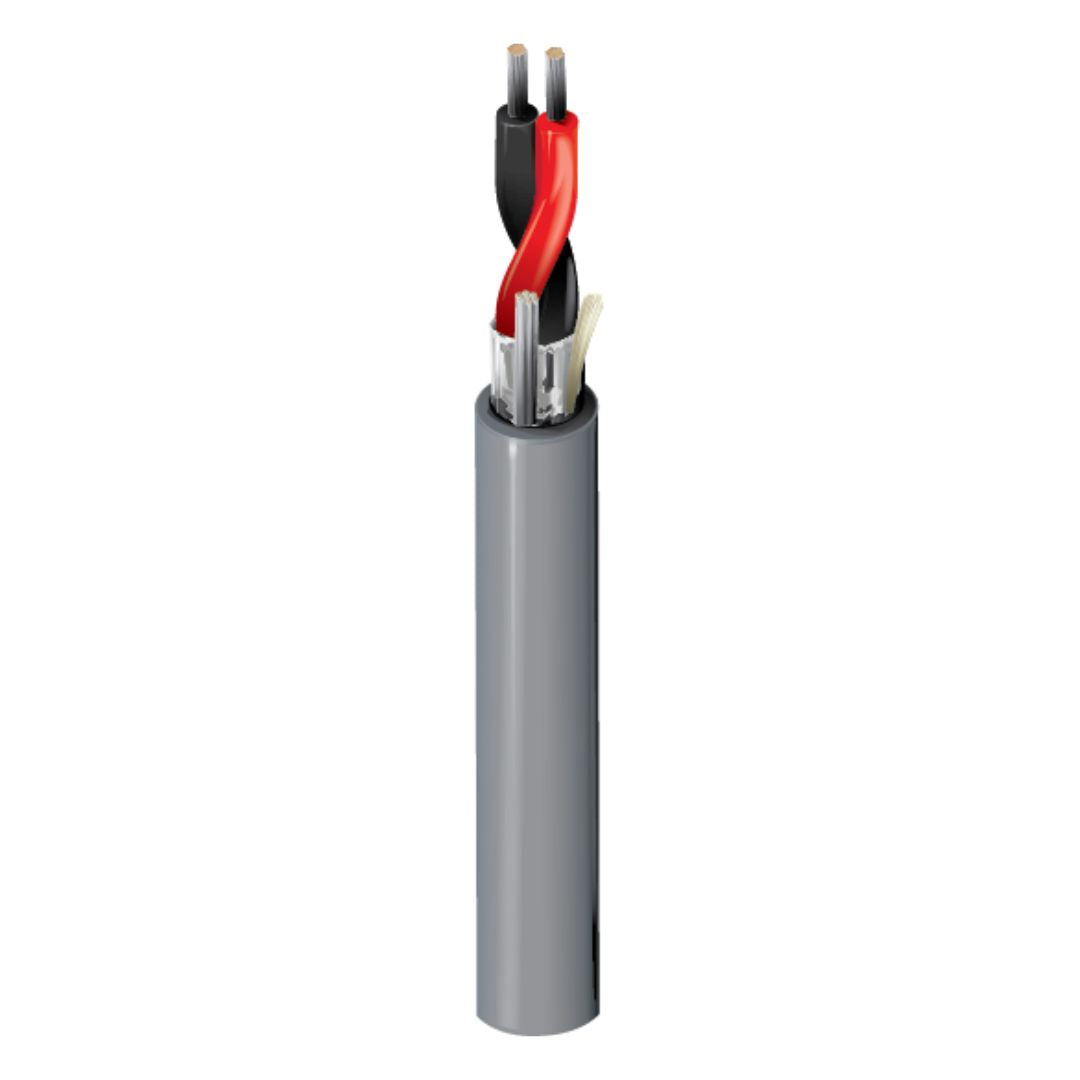

Key Specifications

Life Cycle

Discontinued - the product is no longer manufactured

Discontinuation Announcement Date

2022-04-20

Conductor

Element

Conductor(s)

No. of Elements

2

Size

16 AWG

Stranding

19x29

Material

TC - Tinned Copper

Insulation

Element

Conductor(s)

Material

PP - Polypropylene

Nom. Thickness

0.008 in (0.20 mm)

Nom. Insulation Diameter

0.075 in (1.9 mm)

Color Code

Black, Red

Outer Shield

Shield Type

Tape

Material

Bi-Laminate (Alum+Poly)

Coverage

100%

Drainwire Type

24 AWG (Solid) TC

Outer Jacket

Material

PVC - Polyvinyl Chloride

Nom. Thickness

0.017 in (0.43 mm)

Nom. Diameter

0.188 in

Ripcord

Yes

Overall Cable Diameter (Nominal)

0.188 in

Electricals

Nom. Conductor DCR

4.2 Ohm/1000ft

Nom. Capacitance Cond-to-Cond

58 pF/ft (190 pF/m)

Nom. Capacitance Cond-to-Other (Conds + Shield)

114 pF/ft (374 pF/m)

Nom. Inductance

0.14 µH/ft (0.46 µH/m)

Max. Current

6.25 Amps per Conductor at 25ºC

Nom Outer Shield DCR

16.8 Ohm/1000ft (55.1 Ohm/km)

Voltage

UL Voltage Rating

300 V
