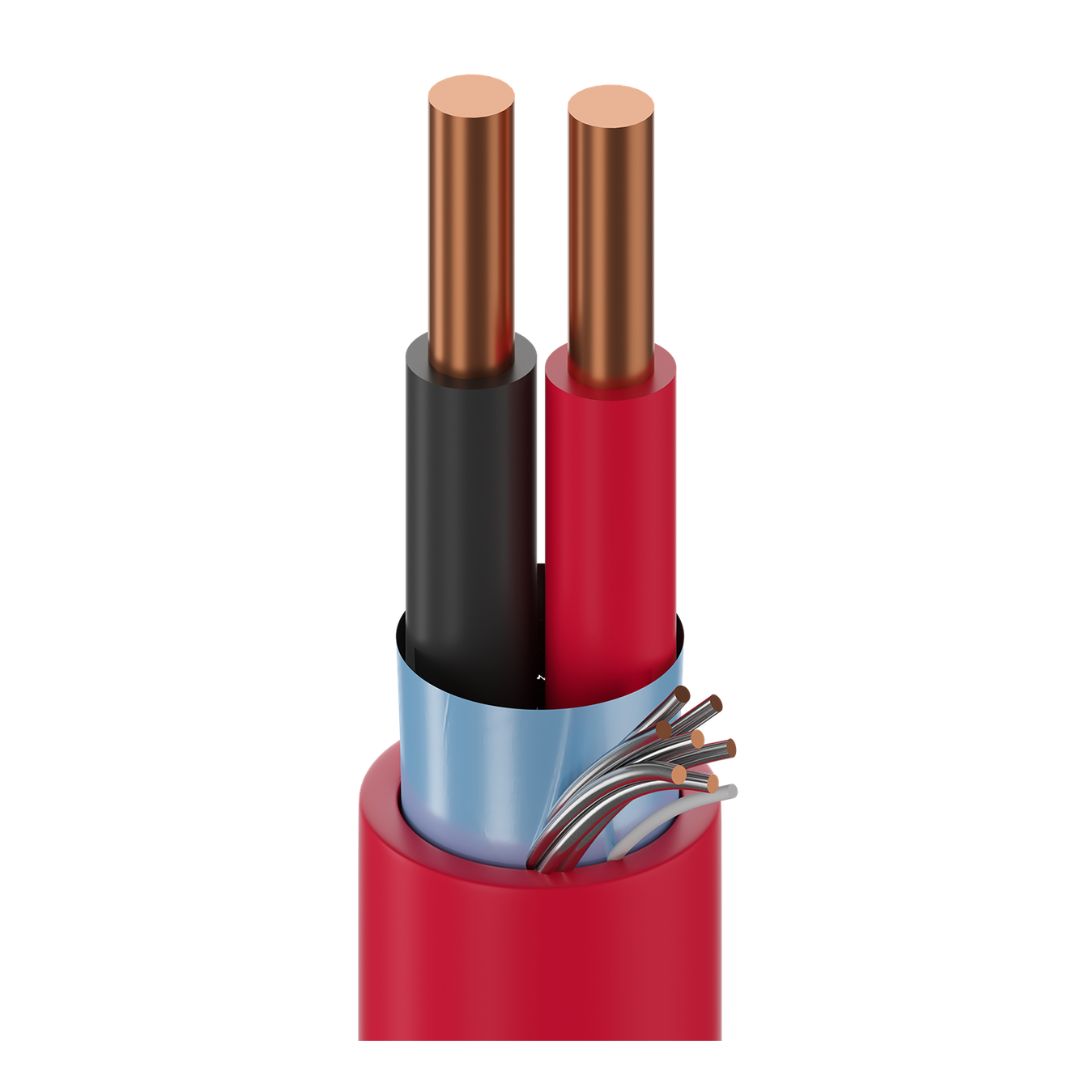

Key Specifications

Conductor

Element

Conductor(s)

No. of Elements

2

Size

16 AWG

Stranding

Solid

Material

BC - Bare Copper

Insulation

Element

Conductor(s)

Material

PP - Polypropylene

Nom. Thickness

0.007 in (0.18 mm)

Nom. Insulation Diameter

0.065 in (1.7 mm)

Color Code

Black, Red

Outer Shield

Shield Type

Tape

Material

Bi-Laminate (Alum+Poly)

Coverage

100%

Drainwire Type

24 AWG (Solid) TC

Outer Jacket

Material

PVC - Polyvinyl Chloride

Nom. Thickness

0.017 in (0.43 mm)

Nom. Diameter

0.170 in (4.32 mm)

Ripcord

Yes

Overall Cable Diameter (Nominal)

0.170 in (4.32 mm)

Electricals

Element

Conductor(s)

Nom. Conductor DCR

3.9 Ohm/1000ft

Nom. Capacitance Cond-to-Cond

65.5 pF/ft (215 pF/m)

Nom. Capacitance Cond-to-Other (Conds + Shield)

118 pF/ft (387 pF/m)

Nom. Inductance

0.14 µH/ft (0.46 µH/m)

Max. Current

6.3 Amps per conductor @ 25°C

Nom Outer Shield DCR

16.9 Ohm/1000ft (55.4 Ohm/km)

Voltage

UL Voltage Rating

300 V (FPLR)
