6160

Hand-crafted true condenser small-diaphragm capsule with gold-sputtered diaphragm
Tight super-cardioid / lobar polar pattern for high gain-before-feedback and superior off-axis rejection

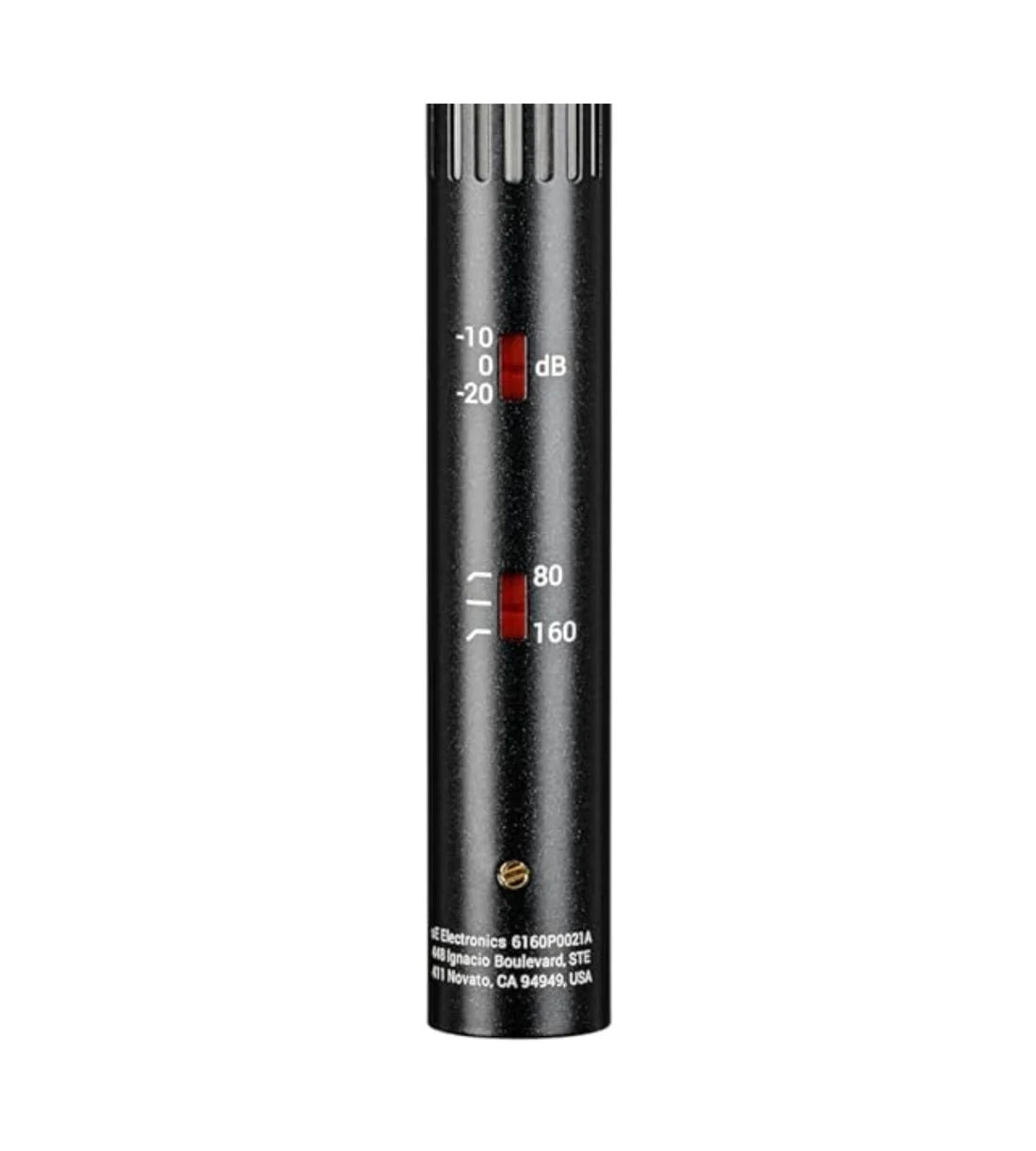

Switchable attenuation pads: -10 dB / -20 dB for loud sound sources
Switchable low-cut filters: 80 Hz / 160 Hz to reduce rumble and proximity effect
Durable die-cast metal housing with lightweight, compact design
Full 20 Hz-20 kHz frequency response and high dynamic range

SE ELECTRONICS

₱26,550.00 VAT INC.

~~₱29,500.00~~ ₱26,550.00

SOLD BY: PIECE/S

Product Code: SKU:SE-6160-CHN-4409

Hand-crafted true condenser small-diaphragm capsule with gold-sputtered diaphragm
Tight super-cardioid / lobar polar pattern for high gain-before-feedback and superior off-axis rejection
Switchable attenuation pads: -10 dB / -20 dB for loud sound sources
Switchable low-cut filters: 80 Hz / 160 Hz to reduce rumble and proximity effect
Durable die-cast metal housing with lightweight, compact design
Full 20 Hz-20 kHz frequency response and high dynamic range

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

SE ELECTRONICS 6160

Key Specifications
Capsule Type	Small-diaphragm true condenser, gold-sputtered
Polar Pattern	Super-cardioid / Lobar (shotgun)
Frequency Range	20 Hz – 20 kHz
Sensitivity	25 mV/Pa (-32 dBV)
Equivalent Noise Level	13 dB(A)
Max SPL (0 / -10 / -20 dB Pad)	137 dB / 147 dB / 157 dB
Dynamic Range (0 / -10 / -20 dB Pad)	124 dB / 134 dB / 144 dB
Output Impedance	110 Ω
Connector	3-pin male XLR
Dimensions (Diameter × Length)	19.6 mm × 250 mm
Weight	110 g
