Key Specifications

Function

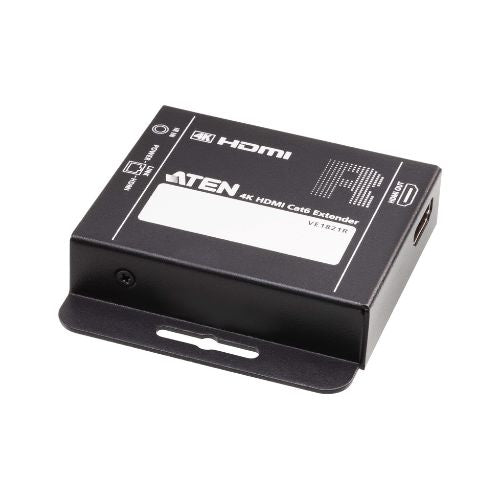

VE1821R

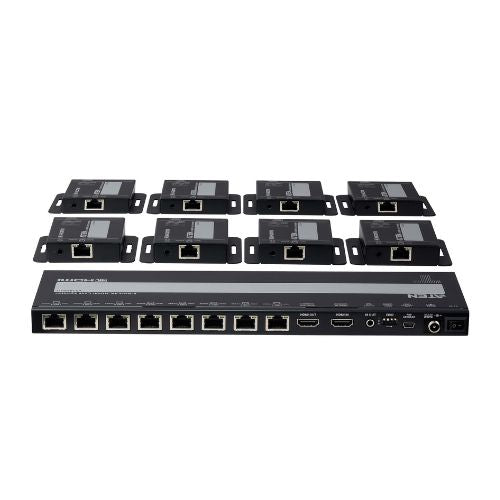

VS1828T

Video Input Interfaces

N/A

1 x HDMI Type A Female (Black)

Impedance (Input)

N/A

100 Ω

Max Input Distance

N/A

3 m

Video Output Interfaces

1 x HDMI Type A Female (Black)

1 x HDMI Type A Female (Black)

Impedance (Output)

100 Ω

100 Ω

Max Output Distance

3 m

3 m

Max Data Rate

10.2 Gbps (3.4 Gbps per lane)

10.2 Gbps (3.4 Gbps per lane)

Max Pixel Clock

340 MHz

340 MHz

HDMI Compliance

HDMI (3D, Deep Color, 4K)
HDCP 1.4 Compatible

HDMI (3D, Deep Color, 4K)
HDCP 1.4 Compatible

Max Resolution / Distance

Up to 4K@30m (Cat5e), 40m (Cat6 / ATEN 2L-2910)
1080p@35m (Cat5e), 50m (Cat6 / 2L-2910)

Up to 4K@30m (Cat5e), 40m (Cat6 / ATEN 2L-2910)
1080p@35m (Cat5e), 50m (Cat6 / 2L-2910)

Audio Input

N/A

1 x HDMI Type A Female (Black)

Audio Output

1 x HDMI Type A Female (Black)

1 x HDMI Type A Female (Black)

IR Channel

1 x Mini Stereo Jack Female (Black)

1 x Mini Stereo Jack Female (Black)

Unit-to-Unit Connection

1 x RJ-45 Female

8 x RJ-45 Female

Power Method

Power over Cable (via VS1828T)

DC Jack (Locking)

Firmware Upgrade

N/A

Micro USB

Switches / Controls

N/A

EDID Mode Selection, Power ON/OFF

Power Consumption

19.2 W

19.2 W

Operating Temperature

0 - 40°C

0 - 40°C

Storage Temperature

-20 - 60°C

-20 - 60°C

Humidity

20 - 90% RH

20 - 90% RH

Housing

Metal

Metal

Weight

0.12 kg (0.28 lb)

0.56 kg (1.24 lb)

Dimensions (L x W x H)

7.95 x 6.80 x 1.65 cm

29.50 x 8.20 x 1.80 cm
