Key Specification

Model

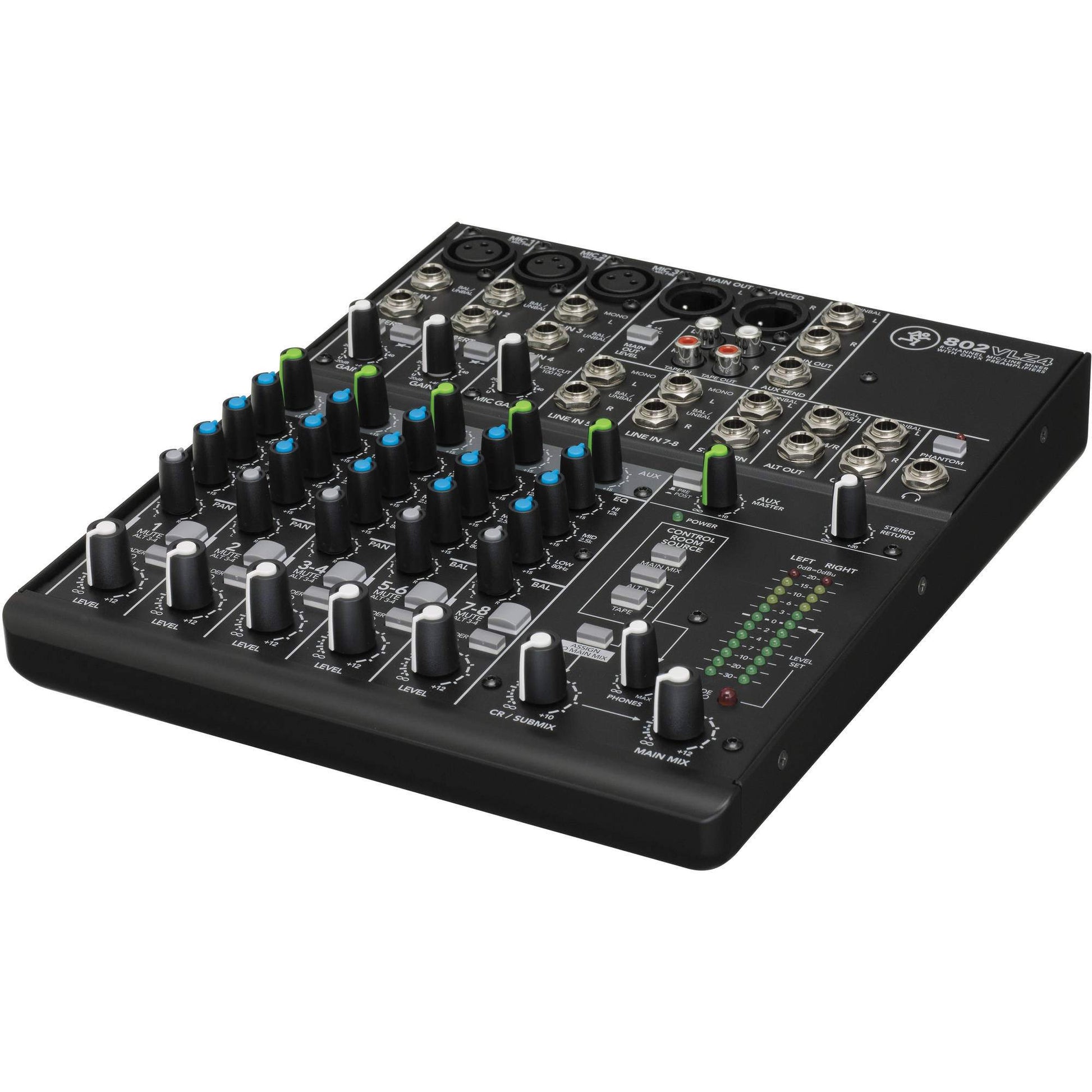

802-VLZ4

Number of Analog Input Channels

8 (2 Mono / 3 Stereo)

Number of Mic Preamps

3

Analog Output Channels

2× Stereo Master Output
1× Stereo Control Room/Monitor Output
1× Stereo ALT Control Room/Monitor Output
1× Mono Aux Send Output
1× Stereo Tape/Record Output
1× Stereo Headphone Output

Mix Routing

Stereo Main Mix
Aux Bus/Subgroup per Mono & Stereo Channels

EQ

3-Band EQ
High: ±15 dB at 12 kHz (Shelving)
Mid: ±15 dB at 2.5 kHz (Notch/Peak)
Low: ±15 dB at 80 Hz (Shelving)

Built-In Effects

No

Meters

2× 12-Segment LED

Gain/Trim Range

60 dB

Filters

High-Pass, 18 dB/Octave

Frequency Response

20 Hz to 50 kHz +0/-1 dB (Unity Gain)
10 Hz to 100 kHz +0/-3 dB (Unity Gain)

Max Input Level

Mic: +21 dBu
Tape: +22 dBu
Line: +22 dBu

Analog Dynamic Range

128.5 dB

I/O Impedance

Mic: 2.55 kΩ
Insert Return: 5 kΩ
Line: ≥ 17 kΩ
Tape Out: 1 kΩ
Headphone: 60 Ω
Main Out: 120 Ω

Noise Floor

XLR Main Out:
-95 dBu (Master -∞, Channels -∞)
-90 dBu (Master Unity, Channels -∞)
-84 dBu (Master Unity, Channels Unity)

1/4" Main Out:
-101 dBu (Master -∞, Channels -∞)
-96 dBu (Master Unity, Channels -∞)
-90 dBu (Master Unity, Channels Unity)

THD

< 0.001% at +35 dB Gain (1 kHz)

Analog Inputs

3× XLR Mic Inputs
2× 1/4" TRS Inputs
6× 1/4" Stereo Inputs (3 Pairs)
2× 1/4" Insert Inputs
1× RCA Stereo Tape Input
2× 1/4" Aux Insert
2× 1/4" Stereo Aux Return

Analog Outputs

2× XLR Main Output (Stereo Pair)
2× 1/4" Main Output
2× 1/4" Stereo Alt Output
2× 1/4" Control Room Output
1× 1/4" Aux Send

Phantom Power

+48 V

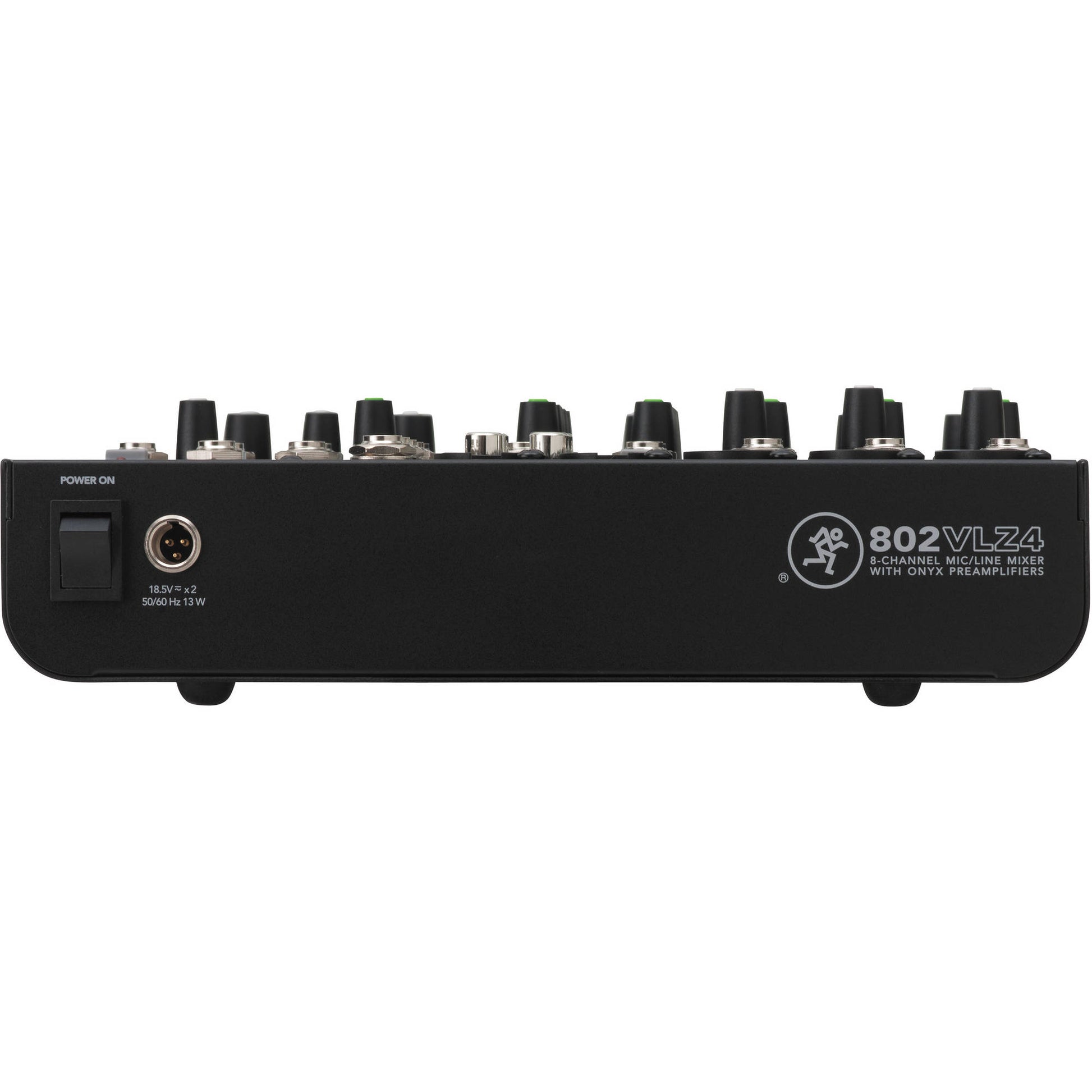

AC Input Power

100–120 VAC, 50/60 Hz

Power Supply Output

18.5 VAC

Operating Conditions

32–104°F / 0–40°C

Dimensions

10.7 × 8.9 × 1.8 in / 273 × 227 × 47 mm

Weight

5.5 lb / 2.5 kg

Package Weight

6 lb

Box Dimensions (L×W×H)

16 × 12.35 × 4.45 in
