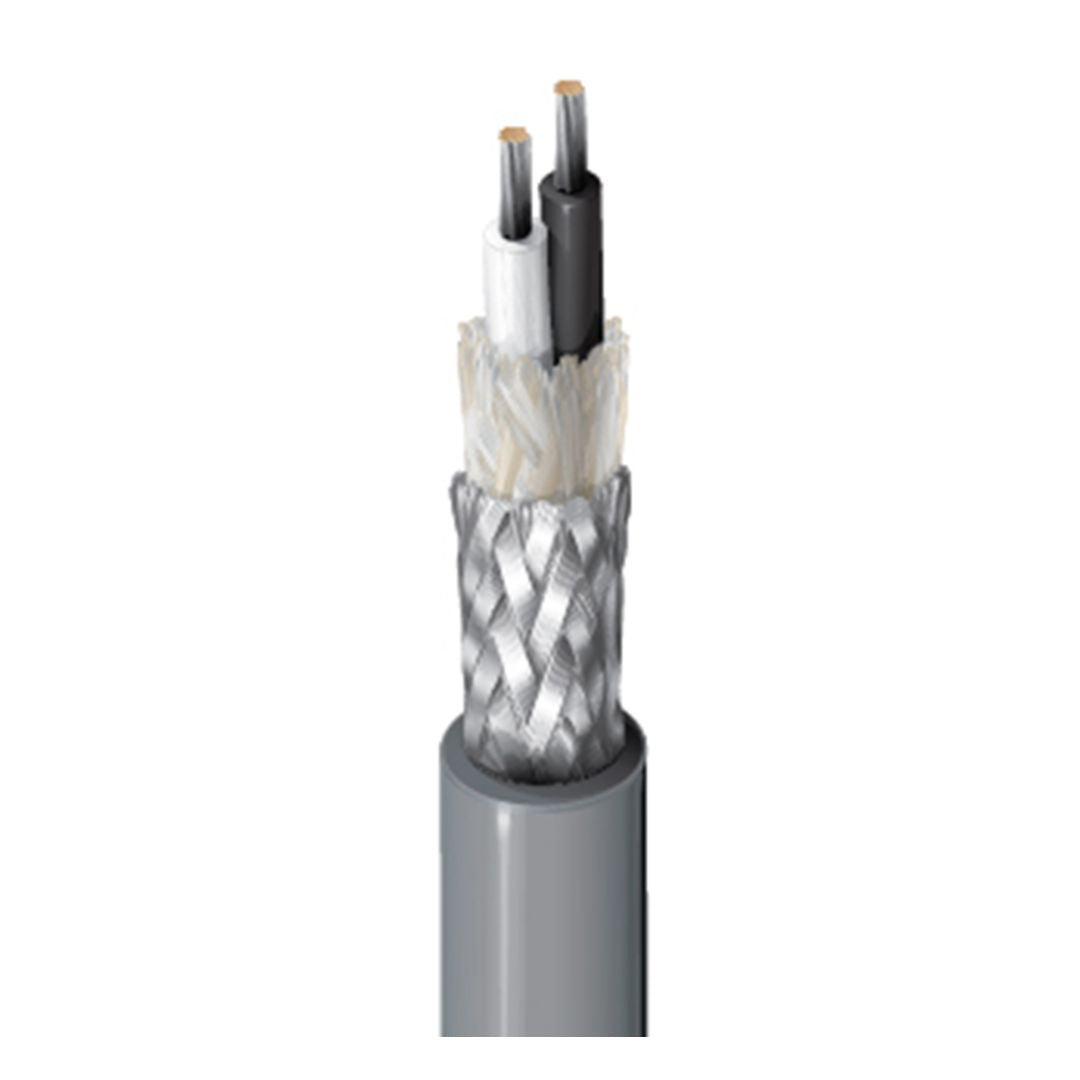

Key Specifications

Conductor

Element

Conductor(s)

No. of Elements

2

Size

22 AWG

Stranding

16x34

Material

TC - Tinned Copper (High Conductivity)

Insulation

Element

Conductor(s)

Material

PE - Polyethylene

Nom. Thickness

0.021 in (0.53 mm)

Nom. Insulation Diameter

0.072 in (1.8 mm)

Color Code

Clear, Black

Outer Shield

Shield Type

Braid

Material

Cotton

Coverage

85%

Shield Type

Braid

Material

Tinned Copper (TC)

Coverage

85%

Outer Jacket

Material

PVC - Polyvinyl Chloride

Nom. Thickness

0.029 in (0.74 mm)

Nom. Diameter

0.231 in (5.87 mm)

Overall Cable Diameter (Nominal)

0.231 in (5.87 mm)

Electricals

Element

Conductor(s)

Nom. Conductor DCR

15.9 Ohm/1000ft

Nom. Capacitance Cond-to-Cond

18 pF/ft (59 pF/m)

Nom. Capacitance Cond-to-Other (Conds + Shield)

32 pF/ft (100 pF/m)

Nom. Characteristic Impedence

90 Ohm

Nom. Inductance

0.22 µH/ft (0.72 µH/m)

Max. Current

2.9 Amps per conductor @ 25°C

Nom Outer Shield DCR

3.5 Ohm/1000ft (11 Ohm/km)

Voltage

Voltage Rating

1000 V
