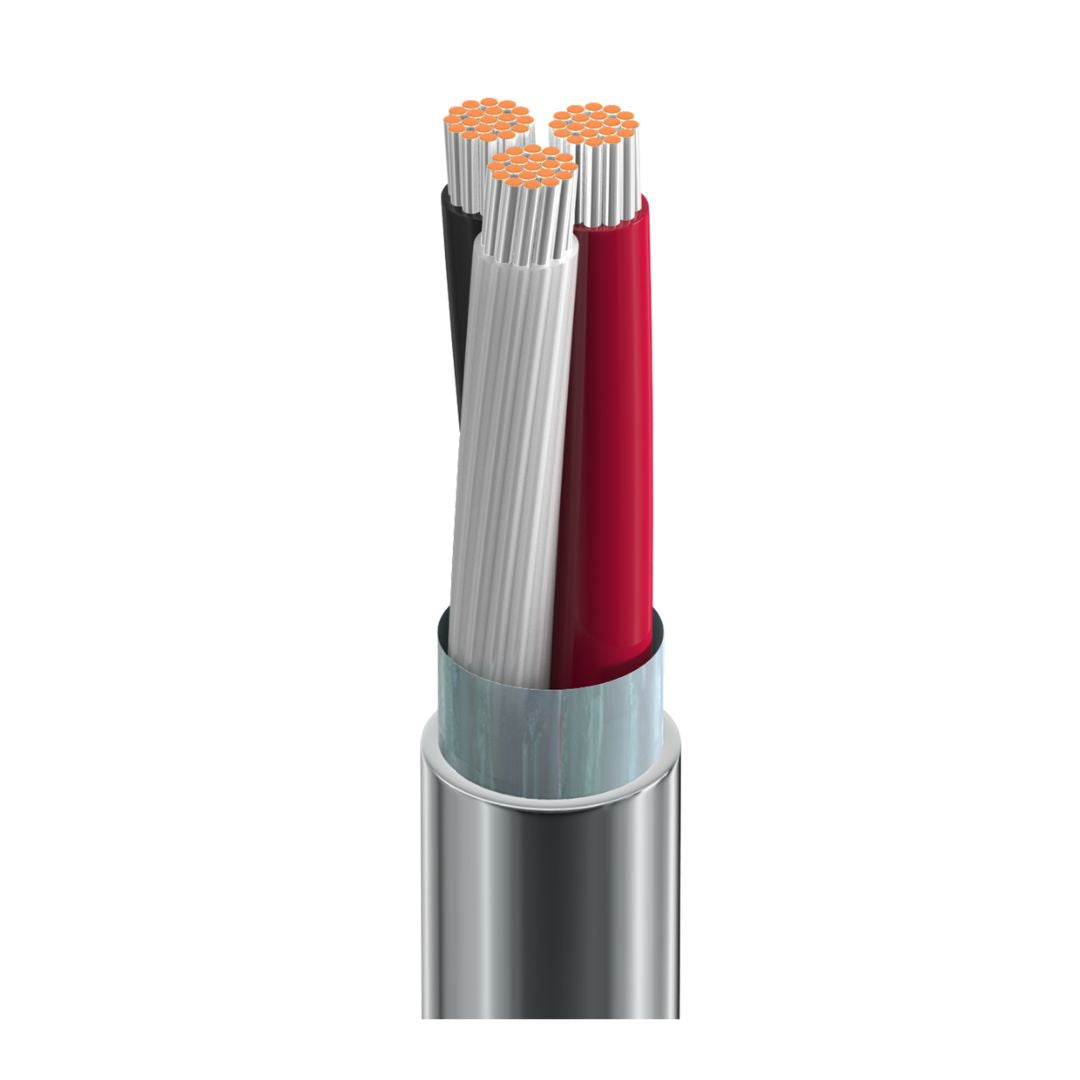

Key Specifications

Conductor

Element

Conductor(s)

No. of Elements

3

Size

16 AWG

Stranding

19x29

Material

TC - Tinned Copper

Insulation

Element

Conductor(s)

Material

PE - Polyethylene

Nom. Thickness

0.032 in (0.81 mm)

Nom. Insulation Diameter

0.122 in (3.10 mm)

Color Code

Black, Red, Clear

Outer Shield

Shield Type

Tape

Material

Bi-Laminate (Alum+Poly)

Coverage

100%

Drainwire Type

18 AWG (16x30) TC

Outer Jacket

Material

PVC - Polyvinyl Chloride

Nom. Thickness

0.031 in (0.79 mm)

Nom. Diameter

0.327 in (8.31 mm)

Overall Cable Diameter (Nominal)

0.327 in (8.31 mm)

Electricals

Element

Conductor(s)

Nom. Conductor DCR

4.44 Ohm/1000ft

Nom. Capacitance Cond-to-Cond

26 pF/ft (85 pF/m)

Nom. Capacitance Cond-to-Other (Conds + Shield)

50 pF/ft (160 pF/m)

Max. Current

16 Amps per Conductor at 30ºC

Nom Outer Shield DCR

5.54 Ohm/1000ft (18.2 Ohm/km)

Voltage

UL Voltage Rating

600 V (UL AWM 20253), 300 V (CL3)
