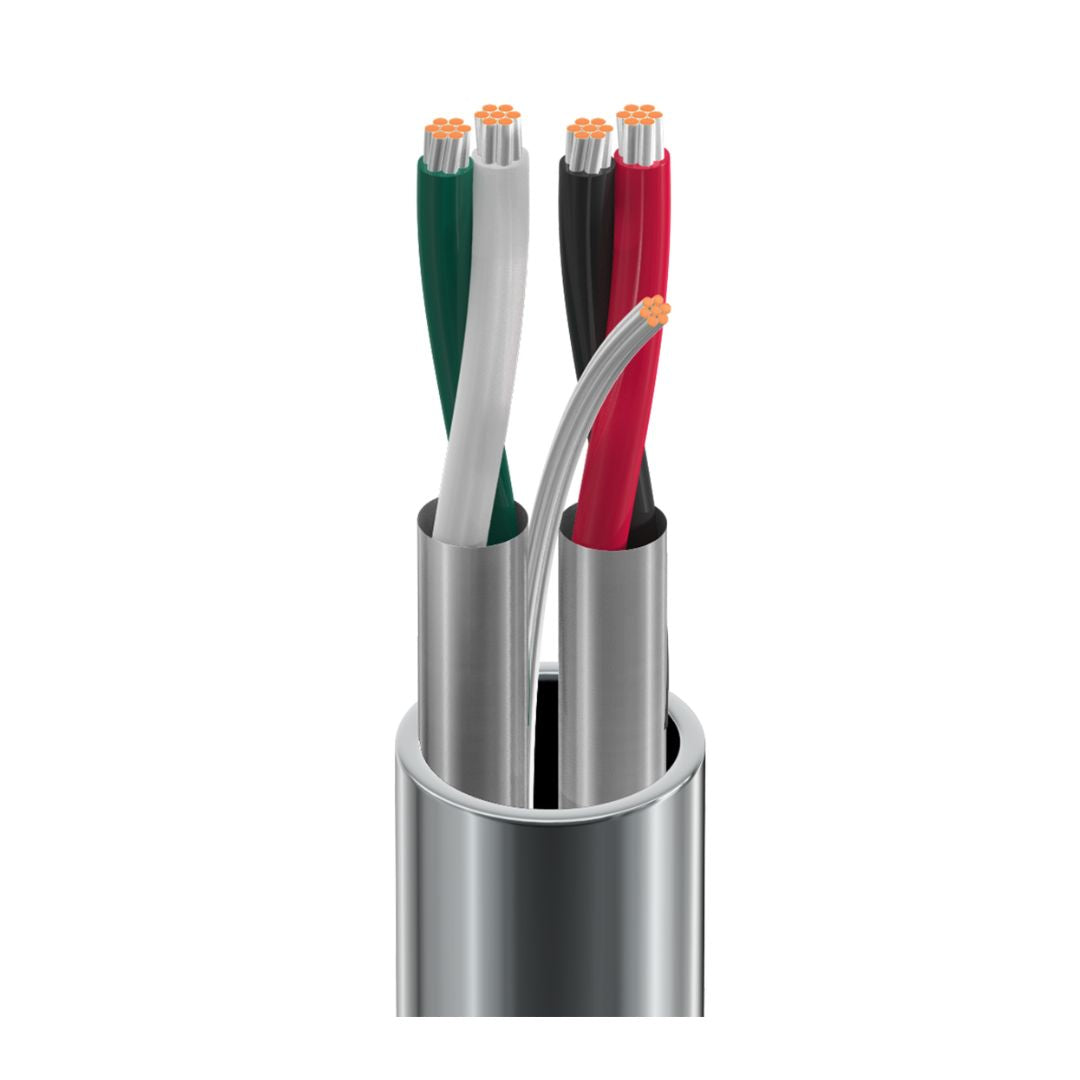

Key Specifications

Conductor

Element

Pair(s)

No. of Elements

2

Size

22 AWG

Stranding

7×30

Material

TC - Tinned Copper

Insulation

Element

Pair(s)

Material

PP - Polypropylene

Nom. Thickness

0.009 in (0.23 mm)

Nom. Insulation Diameter

0.046 in (1.2 mm)

Color Code

Black & Red, Green & White

Inner Shield

Element

Pair(s)

Shield Type

Tape

Material

Bi-Laminate (Alum+Poly)

Coverage

100%

Drainwire Type

24 AWG (7×32) TC

Notes

foil-out tape on each pair, one drain wire

Outer Jacket

Material

PVC - Polyvinyl Chloride

Nom. Thickness

0.020 in (0.51 mm)

Nom. Diameter

0.160 in (4.06 mm)

Overall Cable Diameter (Nominal)

0.160 in (4.06 mm)

Electricals

Element

Pair(s)

Nom. Conductor DCR

18.2 Ohm/1000ft

Nom. Inner Shield DCR

18.38 Ohm/1000ft (60.30 Ohm/km)

Nom. Capacitance Cond-to-Cond

33 pF/ft (110 pF/m)

Nom. Capacitance Cond-to-Other (Conds + Shield)

62 pF/ft (200 pF/m)

Nom. Characteristic Impedence

52 Ohm

Nom. Inductance

0.17 µH/ft (0.56 µH/m)

Nom. Velocity of Prop.

66%

Max. Current

2.8 Amps per Conductor at 25ºC

High Frequency (Nominal/Typical)

Nom. Insertion Loss (Attenuation)

10 dB/100m

Voltage

UL Voltage Rating

300 V (CM)
