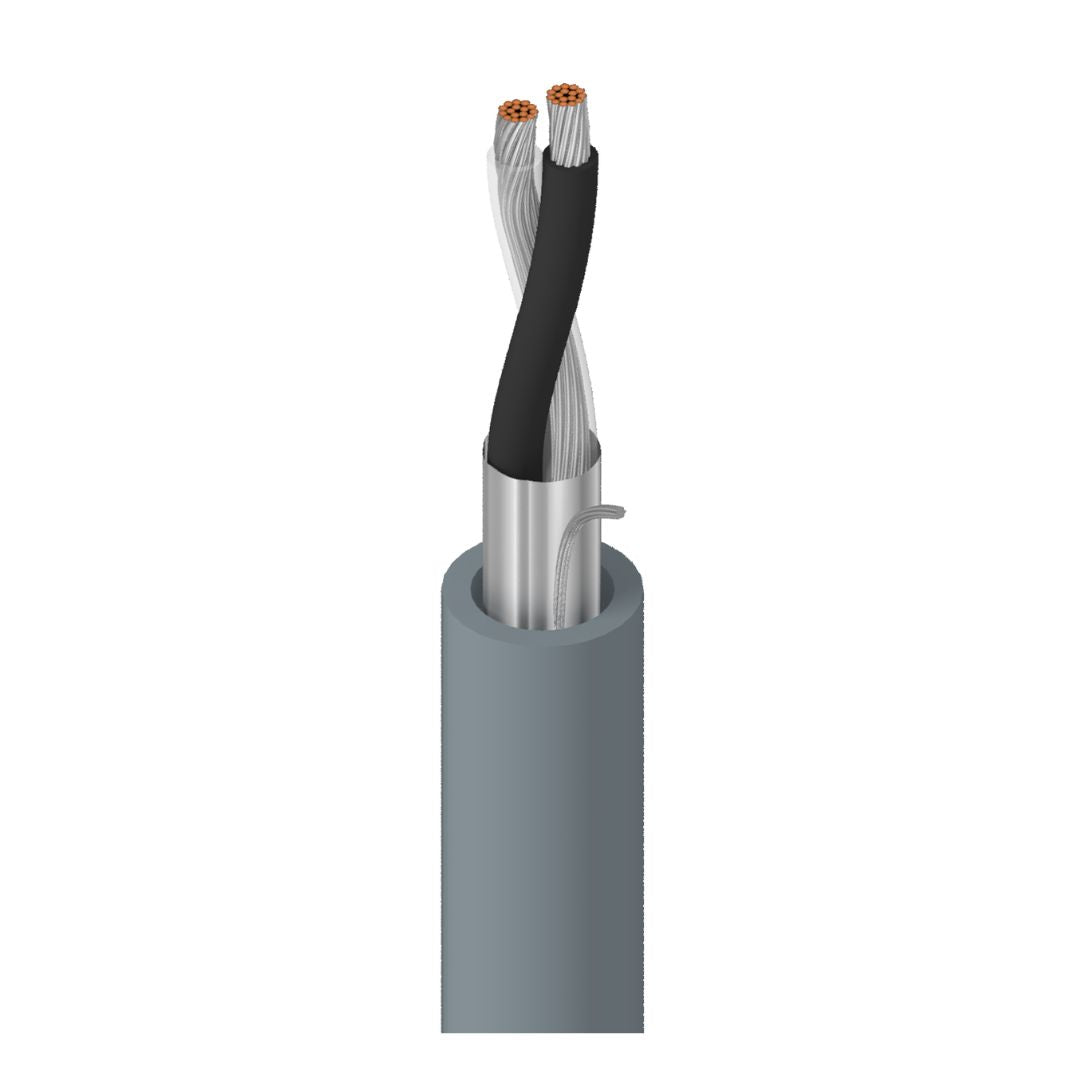

Key Specifications

Conductor

Element

Pair(s)

No. of Elements

1

Size

18 AWG

Stranding

16x30

Material

TC - Tinned Copper

Insulation

Element

Pair(s)

Material

PE - Polyethylene

Nom. Thickness

0.018 in (0.46 mm)

Nom. Insulation Diameter

0.082 in (2.1 mm)

Color Code

Black, Clear

Outer Shield

Shield Type

Tape

Material

Bi-Laminate (Alum+Poly)

Coverage

100%

Drainwire Type

20 AWG (7x28) TC

Outer Jacket

Material

PVC - Polyvinyl Chloride

Nom. Thickness

0.028 in (0.71 mm)

Nom. Diameter

0.222 in (5.64 mm)

Overall Cable Diameter (Nominal)

0.222 in (5.64 mm)

Electricals

Element

Pair(s)

Nom. Conductor DCR

7.06 Ohm/1000ft

Nom. Capacitance Cond-to-Cond

27.2 pF/ft (89.2 pF/m)

Nom. Inductance

0.18 µH/ft (0.59 µH/m)

Max. Current

14 Amps per Conductor at 30ºC

Nom Outer Shield DCR

8.49 Ohm/1000ft (27.9 Ohm/km)

Voltage

UL Voltage Rating

300 V (CM), 300 V (UL AWM 2092))
