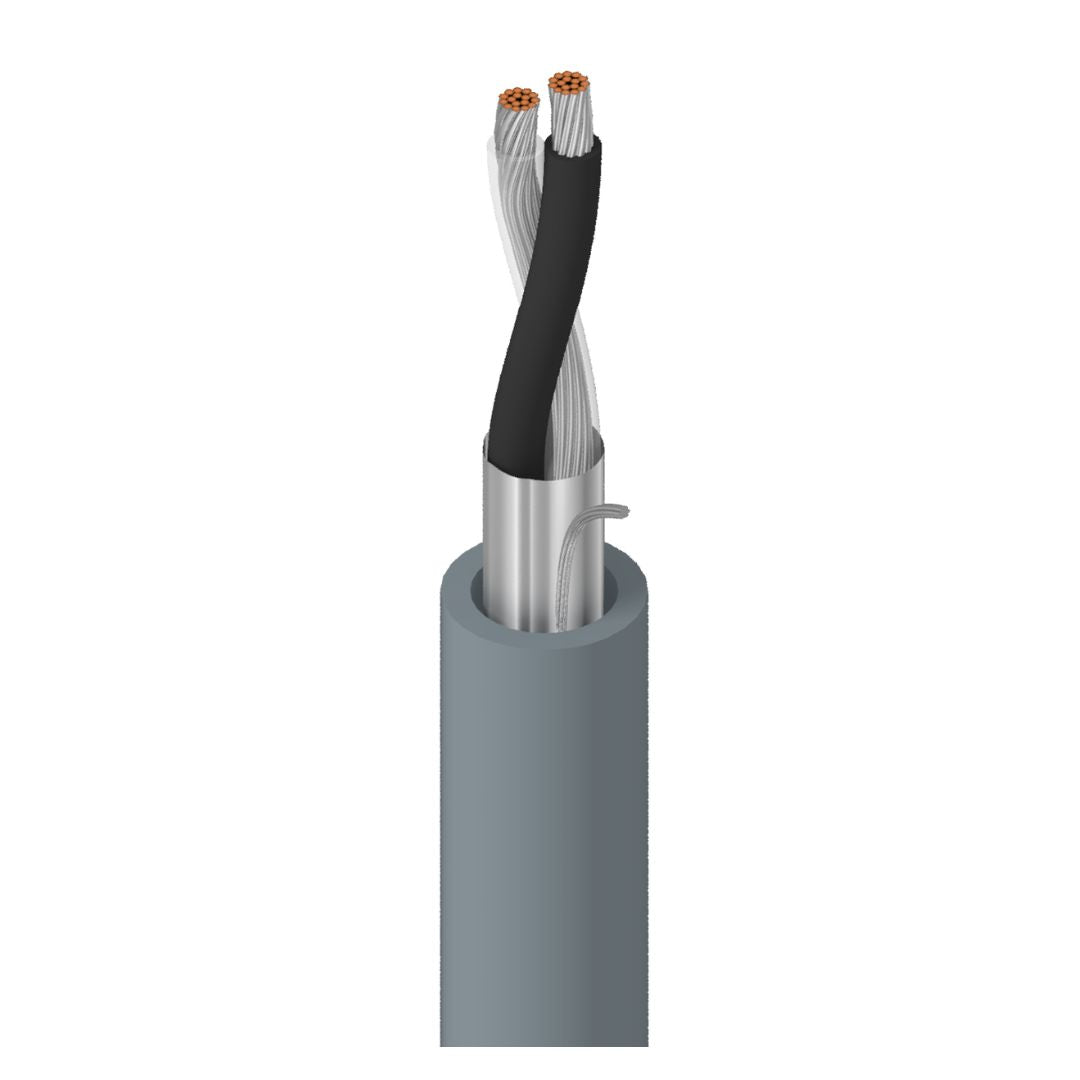

BELDEN 8762
BELDEN 8762
|
Key Specifications |
|
|
Conductor |
|
|
Element |
Pair(s) |
|
No. of Elements |
1 |
|
Size |
20 AWG |
|
Stranding |
7x28 |
|
Material |
TC - Tinned Copper |
|
Insulation |
|
|
Element |
Pair(s) |
|
Material |
PE - Polyethylene |
|
Nom. Thickness |
0.017 in (0.43 mm) |
|
Nom. Insulation Diameter |
0.070 in (1.8 mm) |
|
Color Code |
Black, Clear |
|
Outer Shield |
|
|
Shield Type |
Tape |
|
Material |
Bi-Laminate (Alum+Poly) |
|
Coverage |
100% |
|
Drainwire Type |
20 AWG (7x28) TC |
|
Outer Jacket |
|
|
Material |
PVC - Polyvinyl Chloride |
|
Nom. Thickness |
0.028 in (0.71 mm) |
|
Nom. Diameter |
0.204 in (5.18 mm) |
|
Overall Cable Diameter (Nominal) |
|
|
0.204 in (5.18 mm) |
|
|
Electricals |
|
|
Element |
Pair(s) |
|
Nom. Conductor DCR |
11.3 Ohm/1000ft |
|
Nom. Capacitance Cond-to-Cond |
27 pF/ft (89 pF/m) |
|
Nom. Capacitance Cond-to-Other (Conds + Shield) |
49 pF/ft (160 pF/m) |
|
Nom. Characteristic Impedence |
56 Ohm |
|
Nom. Inductance |
0.18 µH/ft (0.59 µH/m) |
|
Max. Current |
8 Amps per Conductor at 30ºC |
|
Nom Outer Shield DCR |
|
|
8.49 Ohm/1000ft (27.9 Ohm/km) |
|
|
Voltage |
|
|
UL Voltage Rating |
300 V (CM), 300 V (UL AWM 2092)) |
