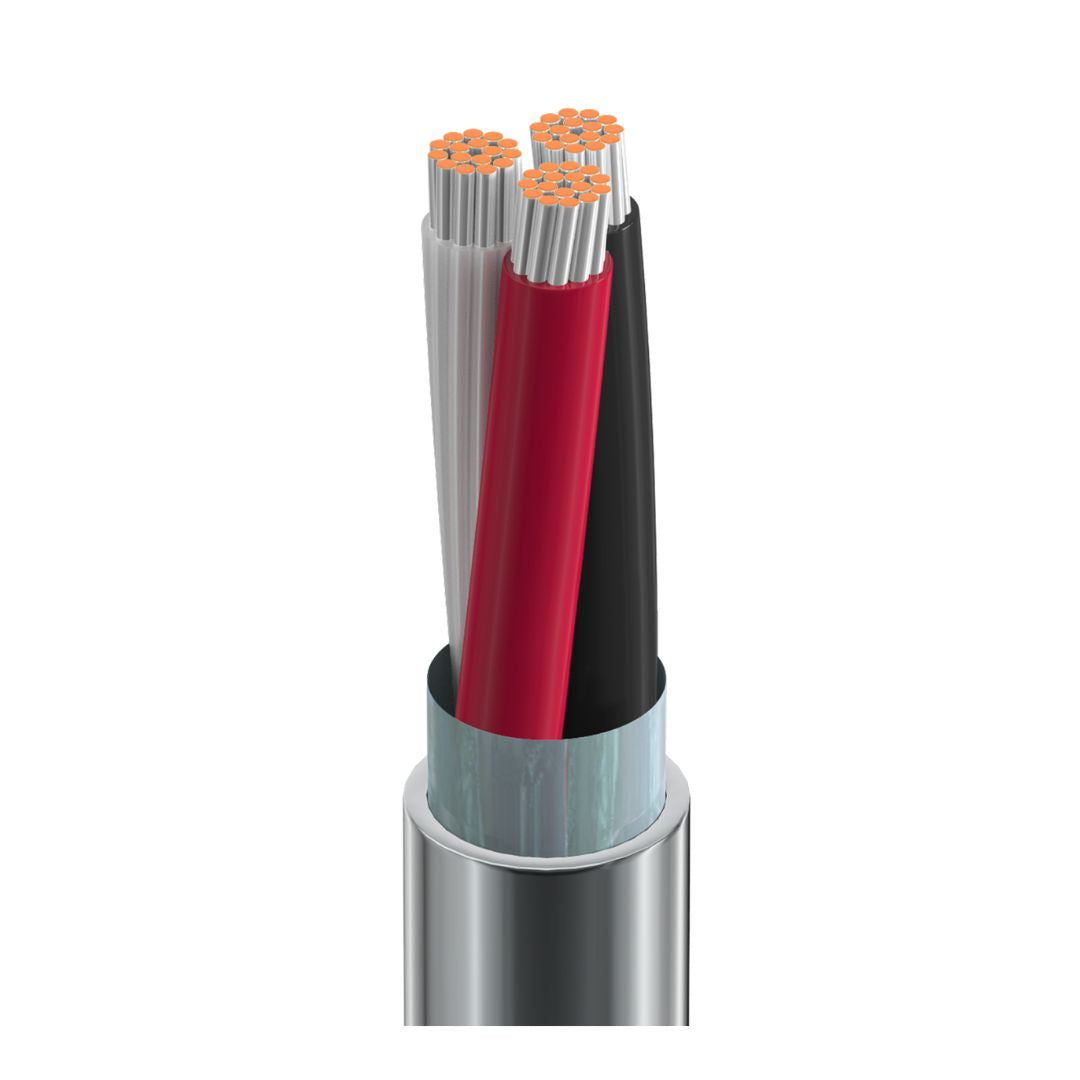

Key Specifications

Conductor

Element

Conductor(s)

No. of Elements

3

Size

18 AWG

Stranding

16x30

Material

TC - Tinned Copper

Insulation

Element

Conductor(s)

Material

PE - Polyethylene

Nom. Thickness

0.018 in (0.46 mm)

Nom. Insulation Diameter

0.082 in (2.1 mm)

Color Code

Black, Red, Clear

Outer Shield

Shield Type

Tape

Material

Bi-Laminate (Alum+Poly)

Coverage

100%

Drainwire Type

20 AWG (7x28) TC

Outer Jacket

Material

PVC - Polyvinyl Chloride

Nom. Thickness

0.033 in (0.84 mm)

Nom. Diameter

0.246 in (6.25 mm)

Overall Cable Diameter (Nominal)

0.246 in (6.25 mm)

Electricals

Element

Conductor(s)

Nom. Conductor DCR

7.06 Ohm/1000ft

Nom. Capacitance Cond-to-Cond

24 pF/ft (79 pF/m)

Nom. Capacitance Cond-to-Other (Conds + Shield)

48 pF/ft (160 pF/m)

Nom. Characteristic Impedence

69 Ohm

Nom. Inductance

0.18 µH/ft (0.59 µH/m)

Max. Current

14 Amps per Conductor at 30ºC

Nom Outer Shield DCR

8.08 Ohm/1000ft (26.5 Ohm/km)

Voltage

UL Voltage Rating

300 V (CM), 300 V (UL AWM 2093)
