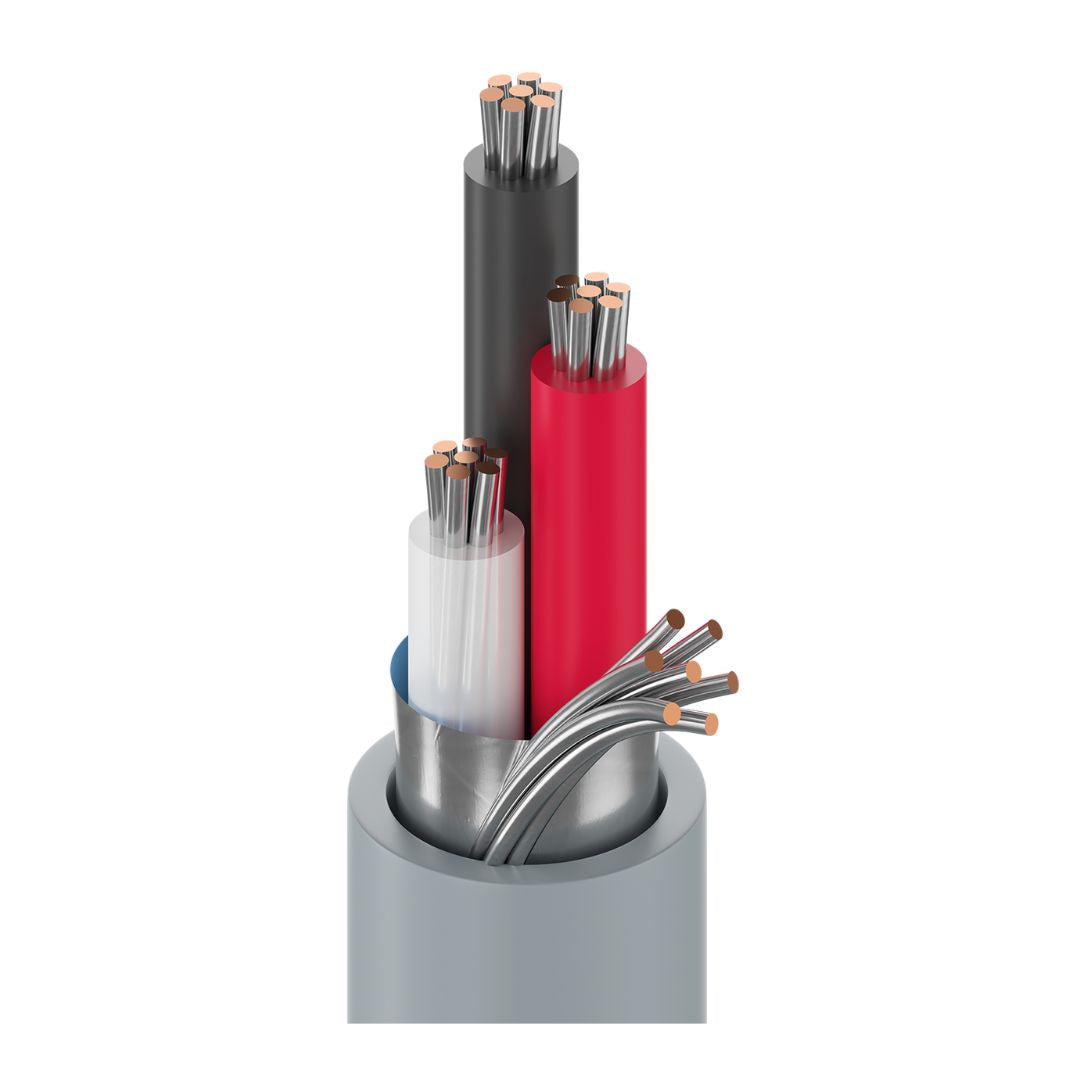

Key Specifications

Conductor

Element

Conductor(s)

No. of Elements

3

Size

22 AWG

Stranding

7x30

Material

TC - Tinned Copper

Insulation

Element

Conductor(s)

Material

PE - Polyethylene

Nom. Thickness

0.017 in (0.43 mm)

Nom. Insulation Diameter

0.062 in (1.6 mm)

Color Code

Black, Red, Clear

Outer Shield

Shield Type

Tape

Material

Bi-Laminate (Alum+Poly)

Coverage

100%

Drainwire Type

22 AWG (7x30) TC

Outer Jacket

Material

PVC - Polyvinyl Chloride

Nom. Thickness

0.033 in (0.84 mm)

Nom. Diameter

0.199 in (5.05 mm)

Overall Cable Diameter (Nominal)

0.199 in (5.05 mm)

Electricals

Element

Conductor(s)

Nom. Conductor DCR

17.8 Ohm/1000ft

Nom. Capacitance Cond-to-Cond

23 pF/ft (75 pF/m)

Nom. Capacitance Cond-to-Other (Conds + Shield)

41 pF/ft (130 pF/m)

Max. Current

6 Amps per Conductor at 30ºC

Nom Outer Shield DCR

12.86 Ohm/1000ft (42.19 Ohm/km)

Voltage

UL Voltage Rating

300 V (CM), 300 V (UL AWM 2093)
