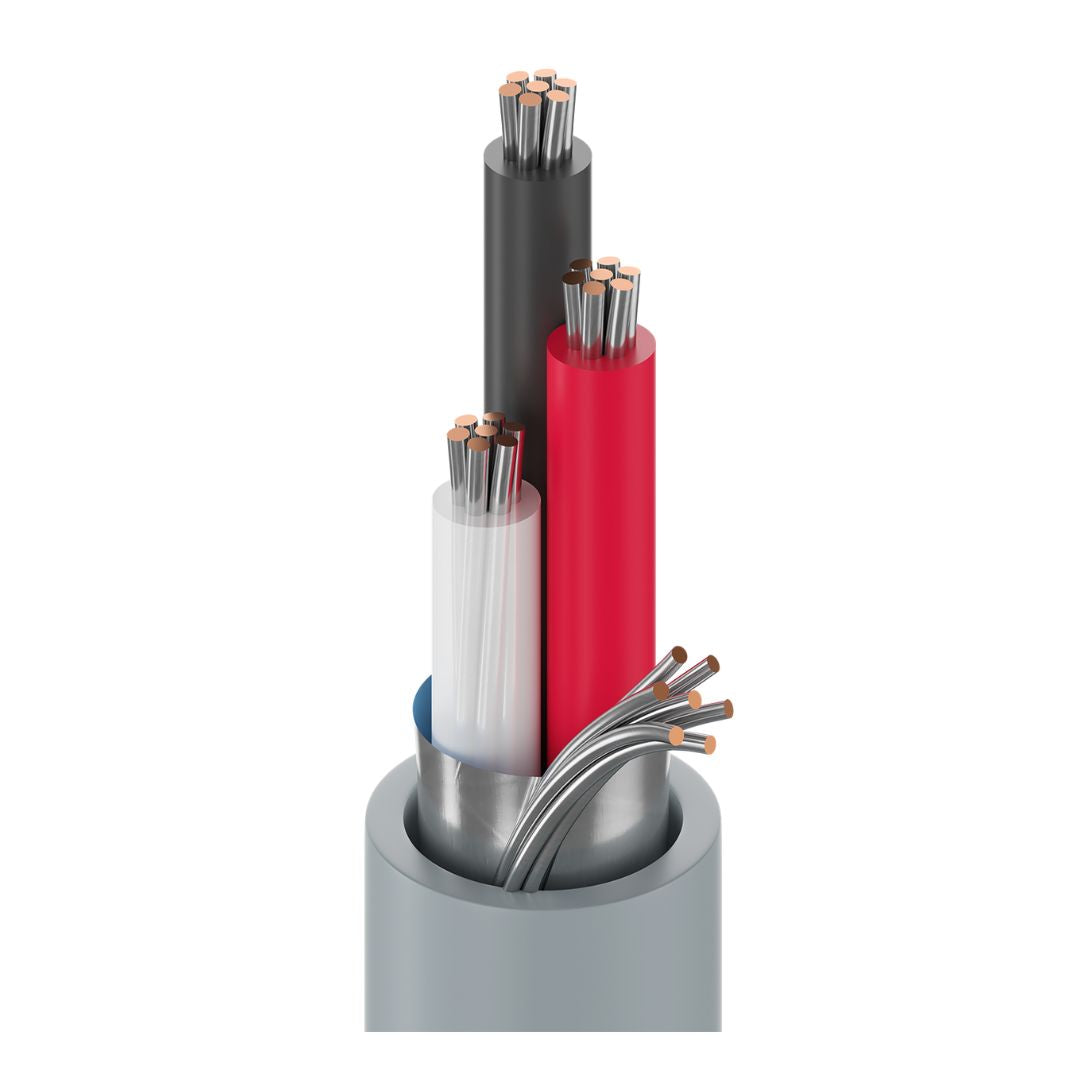

Key Specifications

Conductor

Element

Conductor(s)

No. of Elements

3

Size

20 AWG

Stranding

7x28

Material

TC - Tinned Copper

Insulation

Element

Conductor(s)

Material

PE - Polyethylene

Nom. Thickness

0.017 in (0.43 mm)

Nom. Insulation Diameter

0.070 in (1.8 mm)

Color Code

Black, Red, Clear

Outer Shield

Shield Type

Tape

Material

Bi-Laminate (Alum+Poly)

Coverage

100%

Drainwire Type

20 AWG (7x28) TC

Outer Jacket

Material

PVC - Polyvinyl Chloride

Nom. Thickness

0.033 in (0.84 mm)

Nom. Diameter

0.218 in (5.54 mm)

Overall Cable Diameter (Nominal)

0.218 in (5.54 mm)

Electricals

Element

Conductor(s)

Nom. Conductor DCR

11.1 Ohm/1000ft

Nom. Capacitance Cond-to-Cond

27 pF/ft (89 pF/m)

Nom. Capacitance Cond-to-Other (Conds + Shield)

51 pF/ft (170 pF/m)

Max. Current

8 Amps per Conductor at 30ºC

Nom Outer Shield DCR

8.08 Ohm/1000ft (26.5 Ohm/km)

Voltage

UL Voltage Rating

300 V (CM), 300 V (UL AWM 2093)
