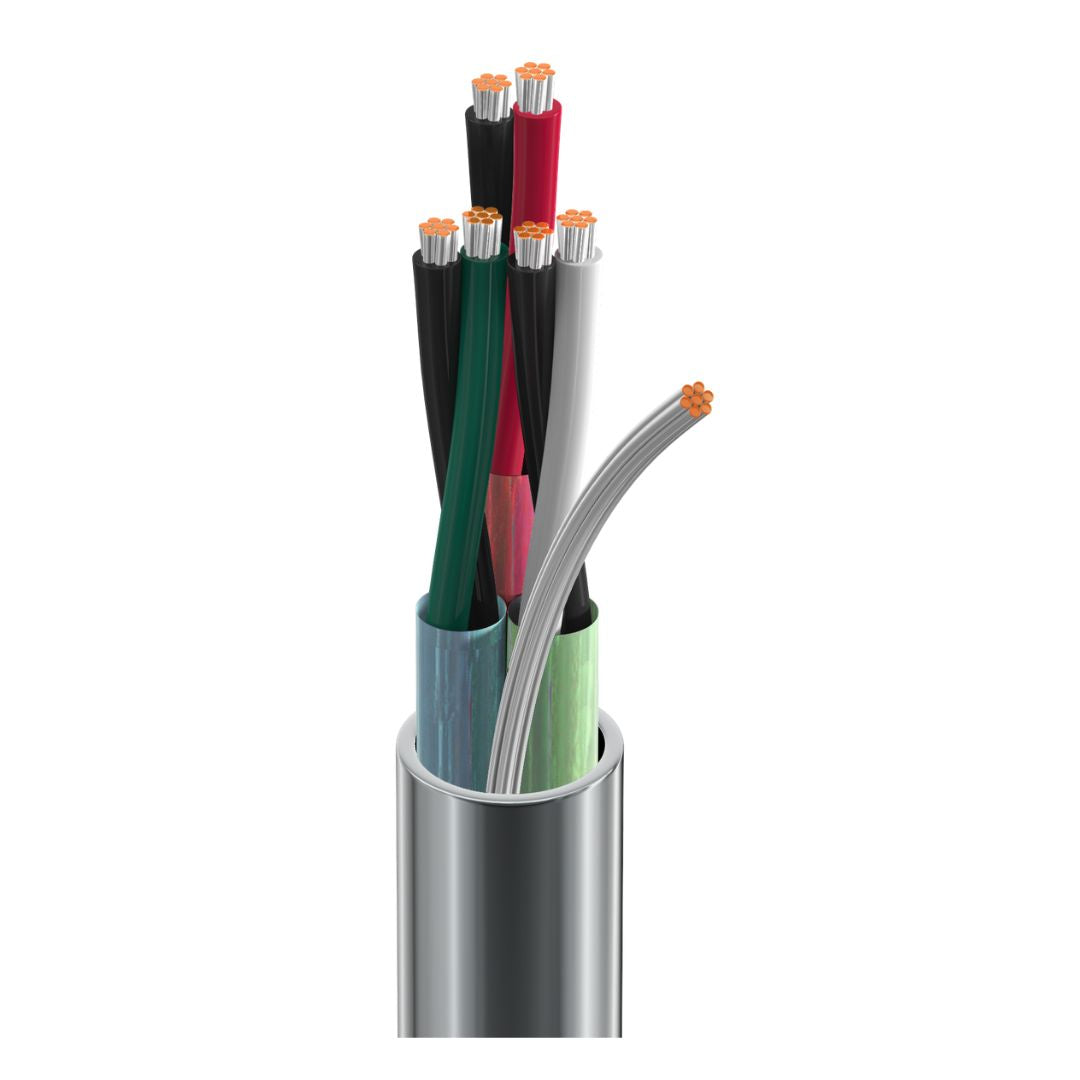

Key Specifications

Conductor

Element

Pair(s)

No. of Elements

3

Size

22 AWG

Stranding

7x30

Material

TC - Tinned Copper

Insulation

Element

Pair(s)

Material

PP - Polypropylene

Nom. Thickness

0.011 in (0.28 mm)

Nom. Insulation Diameter

0.050 in (1.3 mm)

Color Code

Black & Red, Black & White, Black & Green

Inner Shield

Element

Pair(s)

Shield Type

Tape

Material

Bi-Laminate (Alum+Poly)

Coverage

100%

Drainwire Type

22 AWG (7x30) TC

Notes

each pair

Outer Jacket

Material

PVC - Polyvinyl Chloride

Nom. Thickness

0.034 in (0.86 mm)

Nom. Diameter

0.273 in (6.93 mm)

Overall Cable Diameter (Nominal)

0.273 in (6.93 mm)
