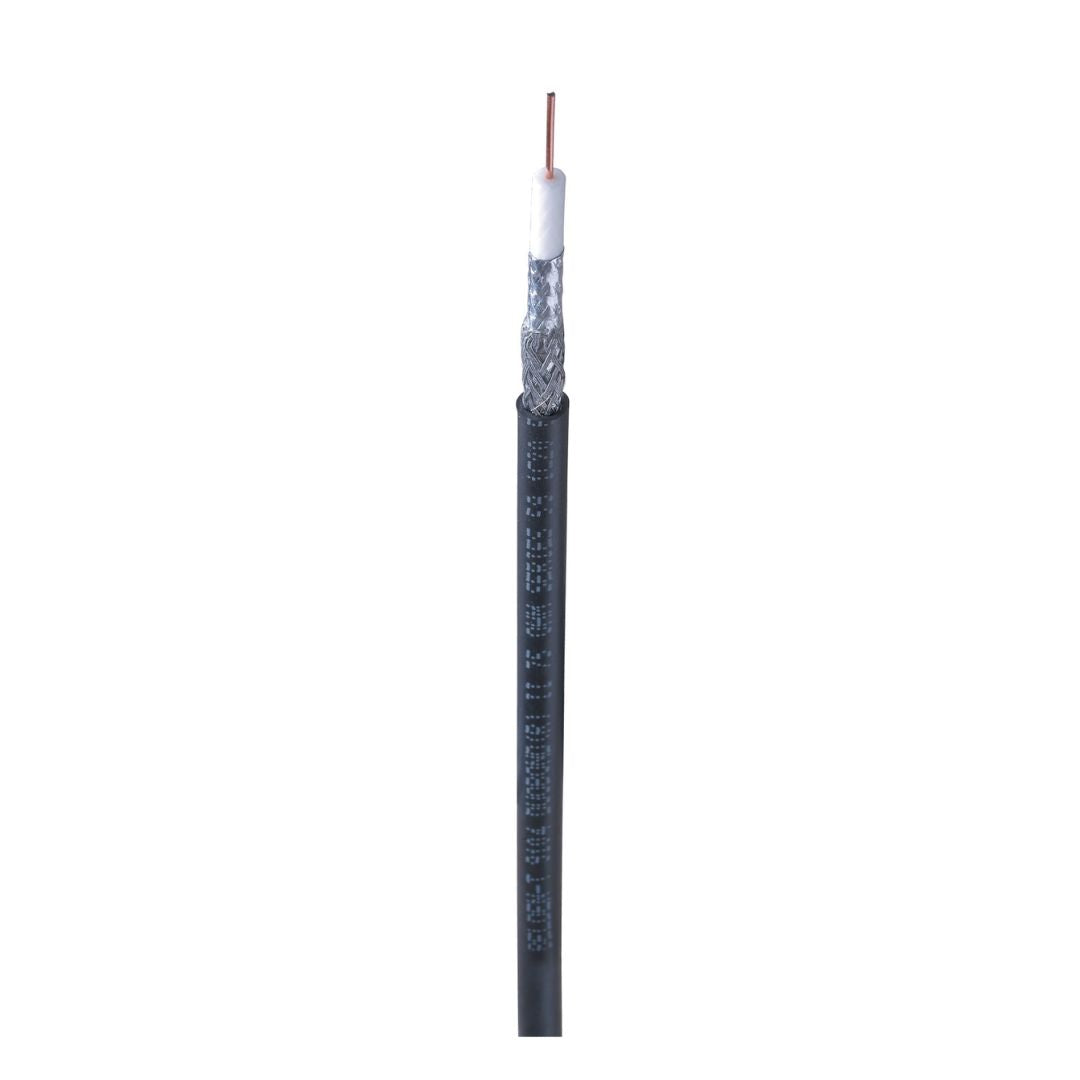

Key Specifications

Series Type

59

Conductor

No. of Elements

1

Size

20 AWG

Stranding

Solid

Nom. Diameter

0.032 in

Material

BCCS - Bare Copper Covered Steel

Insulation

Material

PE - Polyethylene (Foam)

Nom. Insulation Diameter

0.145 in (3.68 mm)

Color Code

White

Insulation Table Notes

Gas Injected

Outer Shield

Layer

1

Outer Shield Type

Tape

Material

Tri-Laminate (Alum+Poly+Alum)

Material Trade Name

Duofoil®

Coverage

100%

Layer

2

Outer Shield Type

Braid

Material

Aluminum

Coverage

65%

Outer Jacket

Material

PVC - Polyvinyl Chloride

Nom. Diameter

0.237 in (6.02 mm)

Overall Cable Diameter (Nominal)

0.237 in (6.02 mm)

Return Loss

Frequency

5-1000 MHz

Min. Structural Return Loss

20 dB

Attenuation

Frequency

5 MHz

Max. Attenuation

0.86 dB/100ft

Frequency

55 MHz

Max. Attenuation

2.05 dB/100ft

Frequency

211 MHz

Max. Attenuation

3.80 dB/100ft

Frequency

270 MHz

Max. Attenuation

4.22 dB/100ft

Frequency

300 MHz

Max. Attenuation

4.45 dB/100ft

Frequency

350 MHz

Max. Attenuation

4.80 dB/100ft

Frequency

400 MHz

Max. Attenuation

5.10 dB/100ft

Frequency

450 MHz

Max. Attenuation

5.40 dB/100ft

Frequency

550 MHz

Max. Attenuation

5.95 dB/100ft

Frequency

750 MHz

Max. Attenuation

6.97 dB/100ft

Frequency

870 MHz

Max. Attenuation

7.57 dB/100ft

Frequency

1000 MHz

Max. Attenuation

8.12 dB/100ft

Electricals

Nom. Conductor DCR

44.5 Ohm/1000ft (146 Ohm/km)

Nom. Outer Shield DCR

12 Ohm/1000ft (39 Ohm/km)

Nom. Capacitance Cond-to-Shield

16.2 pF/ft (53.1 pF/m)

Nom. Characteristic Impedance

75 Ohm

Nom. Velocity of Prop.

83%

Voltage
