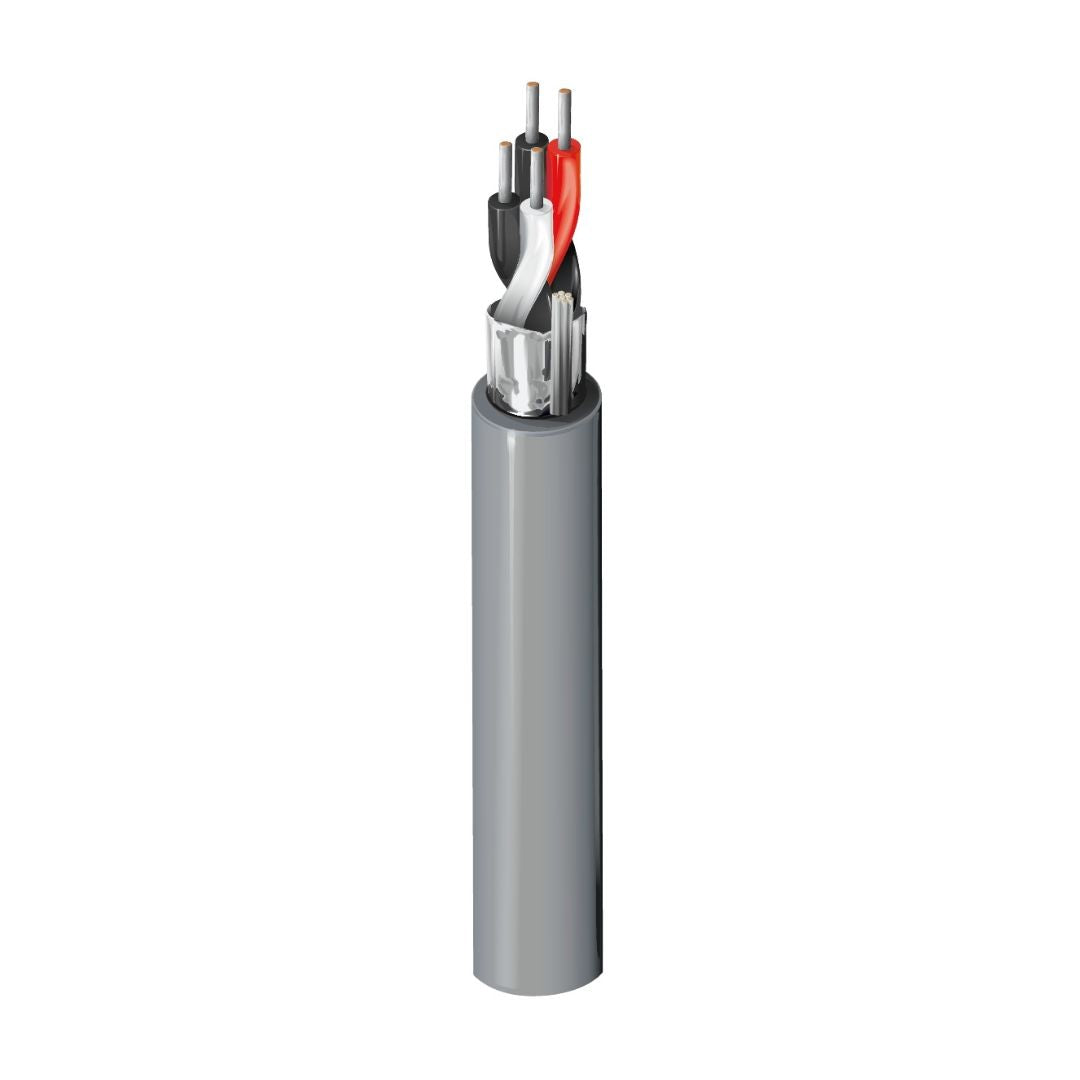

Key Specifications

Conductor

Element

Pair(s)

No. of Elements

2

Size

22 AWG

Stranding

Solid

Material

TC - Tinned Copper

Insulation

Element

Pair(s)

Material

PVC - Polyvinyl Chloride

Nom. Thickness

0.013 in (0.33 mm)

Nom. Insulation Diameter

0.052 in (1.3 mm)

Color Code

Black & Red, Black & White

Outer Shield

Shield Type

Tape

Material

Bi-Laminate (Alum+Poly)

Coverage

100%

Drainwire Type

22 AWG (7x30) TC

Outer Jacket

Material

PVC - Polyvinyl Chloride

Nom. Thickness

0.032 in (0.81 mm)

Nom. Diameter

0.244 in (6.20 mm)

Overall Cable Diameter (Nominal)

0.244 in (6.20 mm)

Electricals

Nom. Conductor DCR

20.6 Ohm/1000ft

Nom. Capacitance Cond-to-Cond

35 pF/ft (110 pF/m)

Nom. Capacitance Cond-to-Other (Conds + Shield)

50 pF/ft (160 pF/m)

Nom. Inductance

0.2 µH/ft (0.66 µH/m)

Max. Current

4.8 Amps per Conductor at 30ºC

Nom Outer Shield DCR

15.79 Ohm/1000ft (51.80 Ohm/km)

Voltage

UL Voltage Rating

300 V
