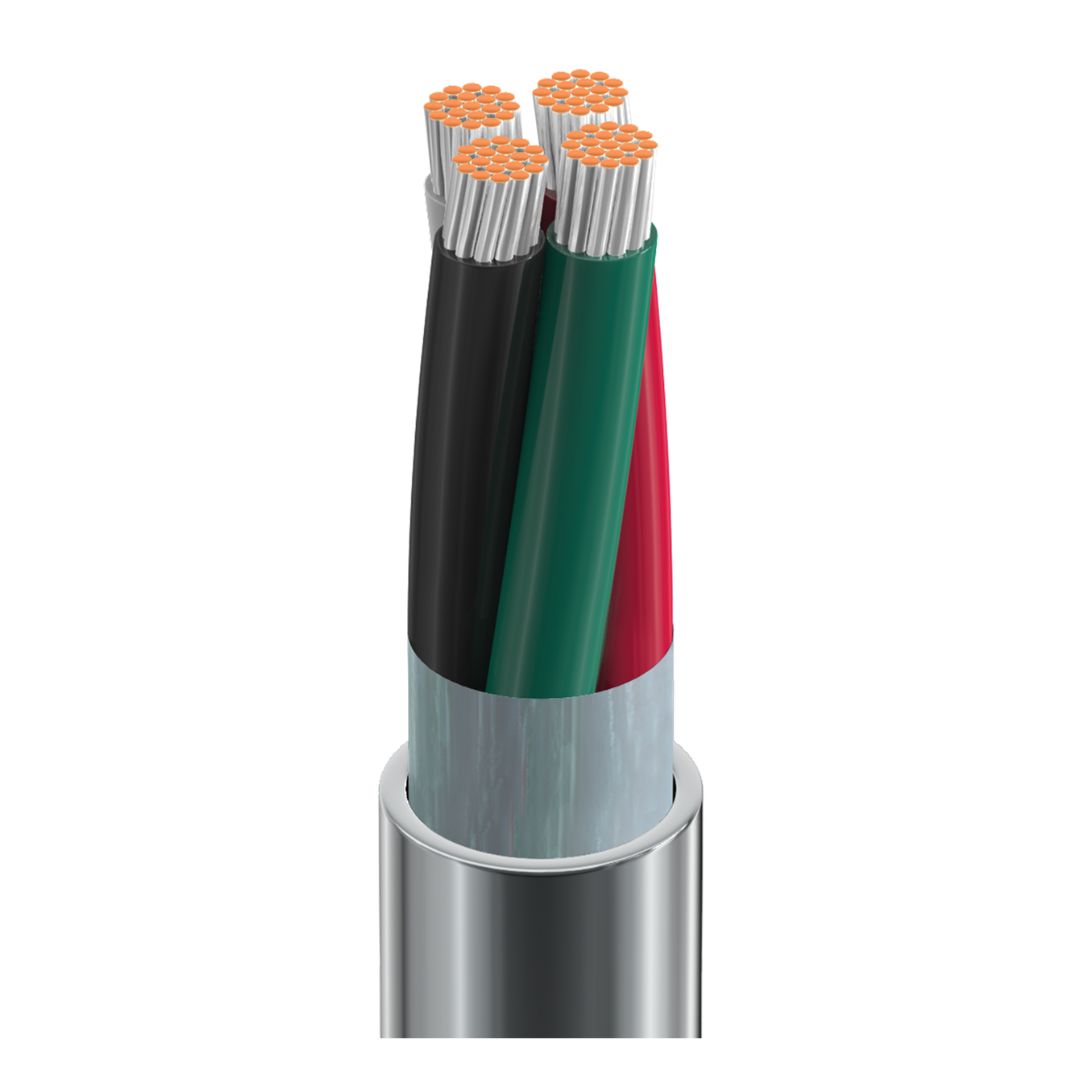

Key Specifications

Conductor

Element

Conductor(s)

No. of Elements

4

Size

18 AWG

Stranding

19x30

Material

TC - Tinned Copper

Insulation

Element

Conductor(s)

Material

SR-PVC - Polyvinyl Chloride (Semi-Rigid)

Nom. Thickness

0.011 in (0.28 mm)

Nom. Insulation Diameter

0.066 in (1.7 mm)

Color Code

Red, Green, Black, White

Outer Shield

Shield Type

Tape

Material

Bi-Laminate (Alum+Poly)

Coverage

100%

Drainwire Type

20 AWG (19x32) TC

Outer Jacket

Material

PVC - Polyvinyl Chloride

Nom. Thickness

0.035 in (0.89 mm)

Nom. Diameter

0.245 in (6.22 mm)

Overall Cable Diameter (Nominal)

0.245 in (6.22 mm)

Electricals

Element

Conductor(s)

Nom. Conductor DCR

6.5 Ohm/1000ft

Nom. Capacitance Cond-to-Cond

40 pF/ft (130 pF/m)

Nom. Capacitance Cond-to-Other (Conds + Shield)

72 pF/ft (240 pF/m)

Max. Current

5 Amps per Conductor at 25ºC

Nom Outer Shield DCR

8.5 Ohm/1000ft (28 Ohm/km)

Voltage

UL Voltage Rating

300 V (CMG), 300 V (UL AWM 2464)
