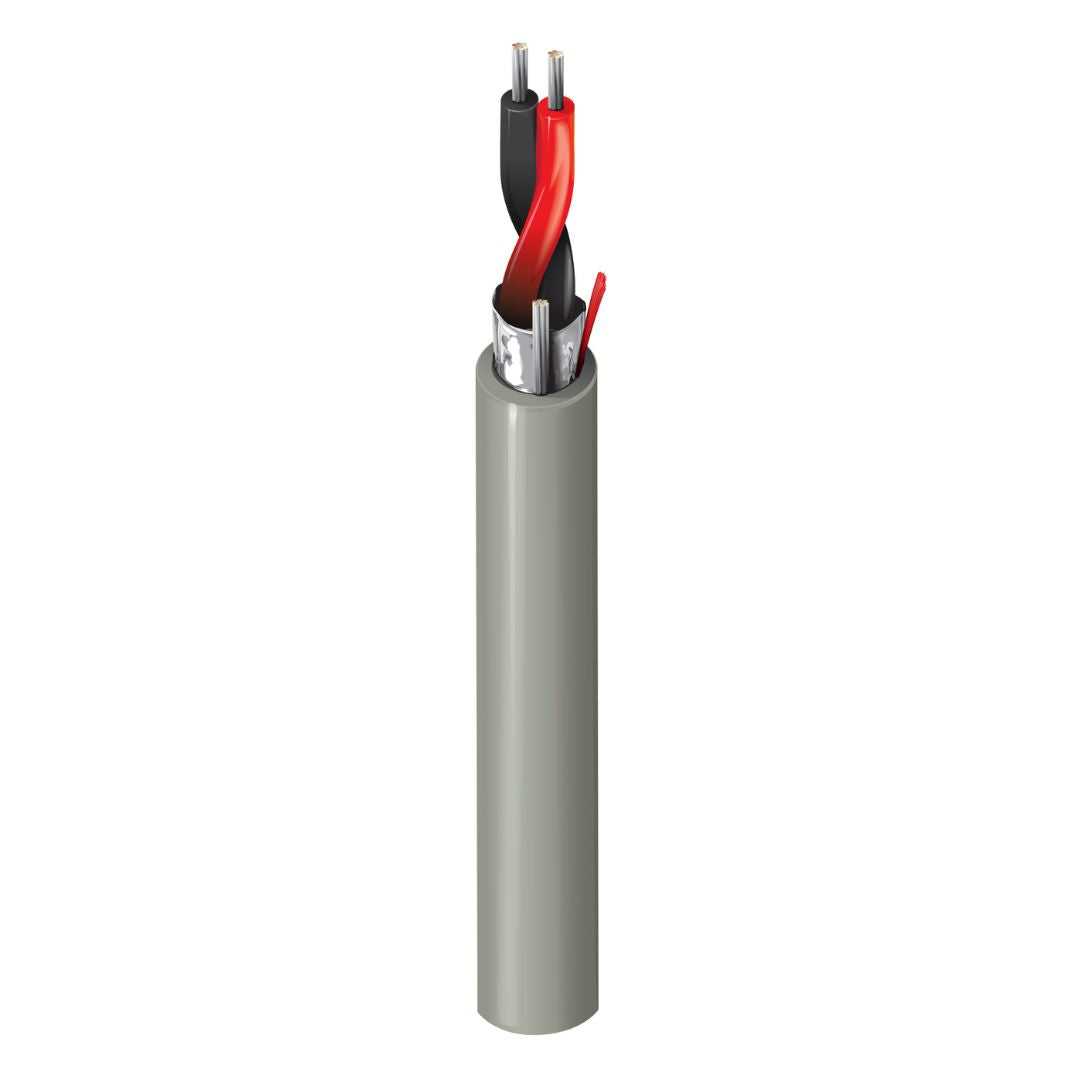

Key Specifications

Conductor

Element

Pair(s)

No. of Elements

1

Size

24 AWG

Stranding

7x32

Material

TC - Tinned Copper

Insulation

Element

Pair(s)

Material

SR-PVC - Polyvinyl Chloride (Semi-Rigid)

Nom. Thickness

0.011 in (0.28 mm)

Nom. Insulation Diameter

0.044 in (1.1 mm)

Color Code

Black & Red

Outer Shield

Shield Type

Tape

Material

Bi-Laminate (Alum+Poly)

Coverage

100%

Drainwire Type

24 AWG (7x32) TC

Outer Jacket

Material

PVC - Polyvinyl Chloride

Nom. Thickness

0.032 in (0.81 mm)

Nom. Diameter

0.156 in (3.96 mm)

Overall Cable Diameter (Nominal)

0.156 in (3.96 mm)

Electricals

Element

Pair(s)

Nom. Conductor DCR

24 Ohm/1000ft

Nom. Capacitance Cond-to-Cond

40 pF/ft (130 pF/m)

Nom. Capacitance Cond-to-Other (Conds + Shield)

74 pF/ft (240 pF/m)

Nom. Inductance

0.19 µH/ft (0.62 µH/m)

Nom. Velocity of Prop.

60%

Max. Current

2.2 Amps per Conductor at 25ºC

Nom Outer Shield DCR

18 Ohm/1000ft (59 Ohm/km)

High Frequency (Nominal/Typical)

Nom. Insertion Loss (Attenuation)

11.6 dB/100m
