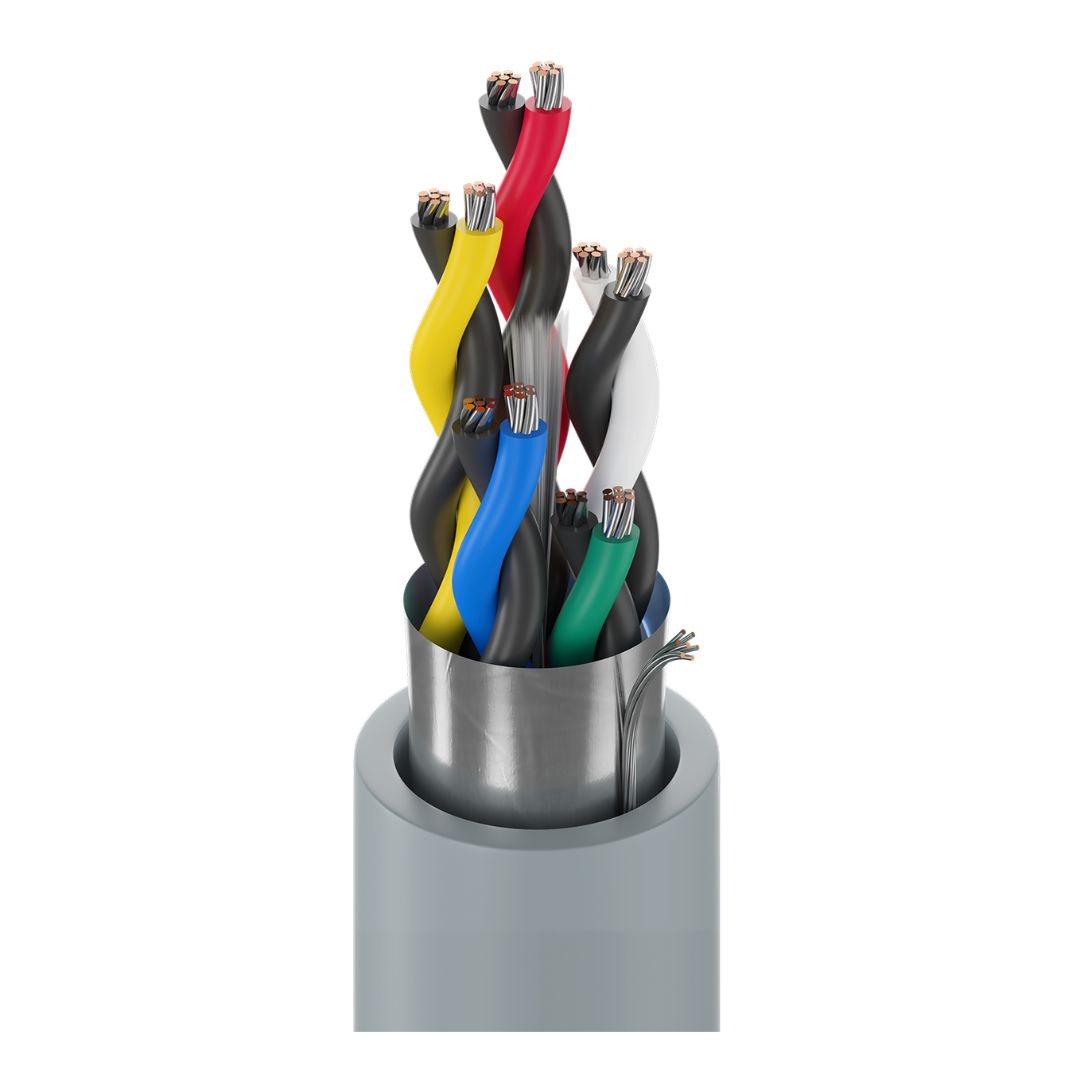

Key Specifications

Conductor

Element

Pair(s)

No. of Elements

5

Size

24 AWG

Stranding

7x32

Material

TC - Tinned Copper

Insulation

Element

Pair(s)

Material

SR-PVC - Polyvinyl Chloride (Semi-Rigid)

Nom. Thickness

0.011 in (0.28 mm)

Nom. Insulation Diameter

0.044 in (1.1 mm)

Color Code

Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow

Outer Shield

Shield Type

Tape

Material

Bi-Laminate (Alum+Poly)

Coverage

100%

Drainwire Type

24 AWG (7x32) TC

Outer Jacket

Material

PVC - Polyvinyl Chloride

Nom. Thickness

0.032 in (0.81 mm)

Nom. Diameter

0.289 in (7.34 mm)

Overall Cable Diameter (Nominal)

0.289 in (7.34 mm)

Electricals

Element

Pair(s)

Nom. Conductor DCR

28.8 Ohm/1000ft

Nom. Capacitance Cond-to-Cond

30 pF/ft (98 pF/m)

Nom. Capacitance Cond-to-Other (Conds + Shield)

50 pF/ft (160 pF/m)

Nom. Characteristic Impedence

75 Ohm

Nom. Velocity of Prop.

60%

Max. Current

2.2 Amps per Conductor at 25ºC

Nom Outer Shield DCR

16.19 Ohm/1000ft (53.12 Ohm/km)

Voltage

UL Voltage Rating

300 V (CMG), 300 V (UL AWM 2464)
