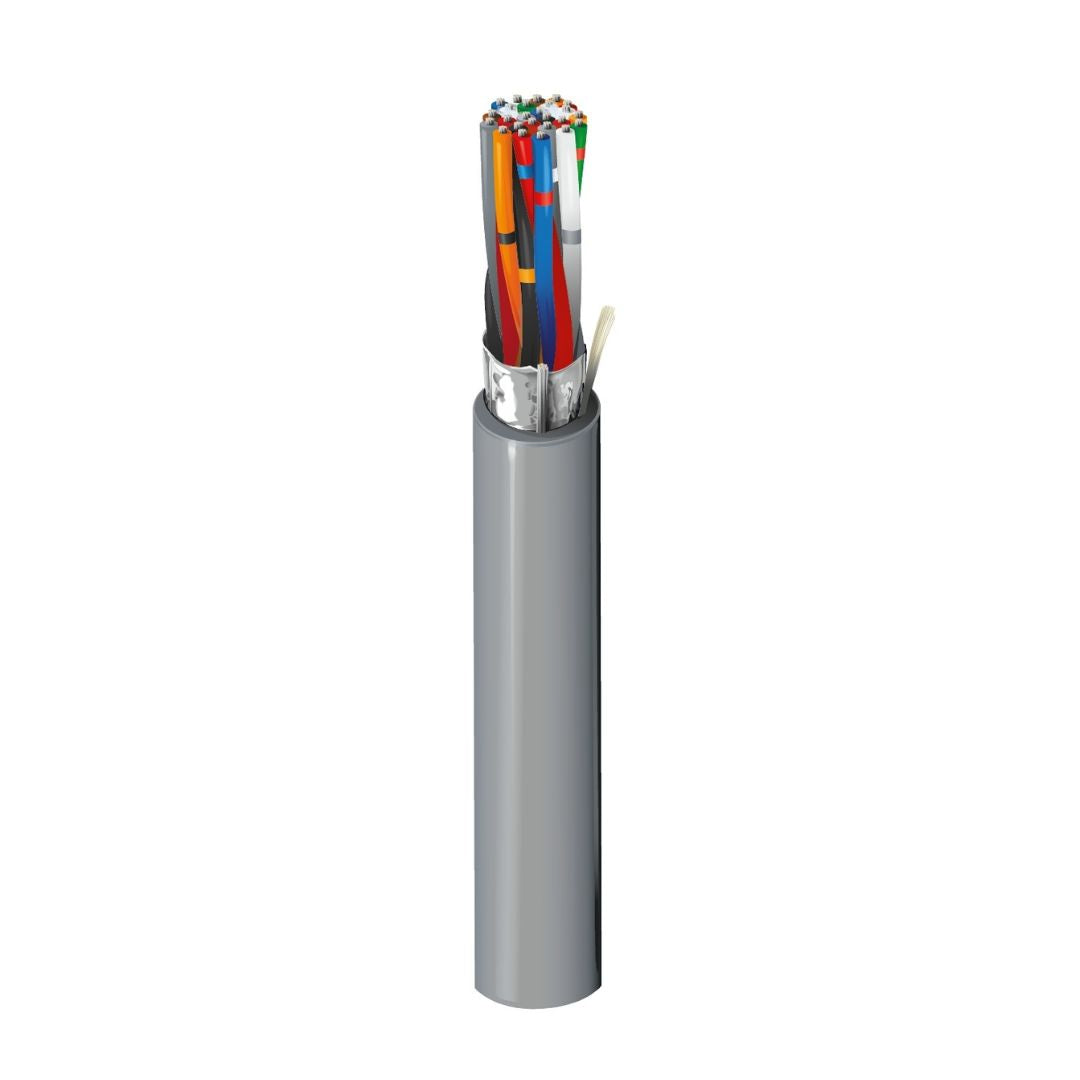

Key Specifications

Conductor

Element

Pair(s)

No. of Elements

12

Size

24 AWG

Stranding

7×32

Material

TC - Tinned Copper

Element

Conductor(s)

No. of Elements

1

Size

24 AWG

Stranding

7×32

Material

TC - Tinned Copper

Insulation

Element

Pair(s)

Material

PE - Polyethylene

Nom. Thickness

0.016 in (0.41 mm)

Nom. Insulation Diameter

0.054 in (1.4 mm)

Color Code

White/Blue & Blue/White, White/Orange & Orange/White, White/Green & Green/White, White/Brown & Brown/White, White/Gray & Gray/White, Red/Blue & Blue/Red, Red/Orange & Orange/Red, Red/Green & Green/Red, Red/Brown & Brown/Red, Red/Gray & Gray/Red, Black/Blue & Blue/Black, Black/Orange & Orange/Black

Element

Conductor(s)

Material

PE - Polyethylene

Nom. Thickness

0.016 in (0.41 mm)

Nom. Insulation Diameter

0.054 in (1.4 mm)

Color Code

Grey

Outer Shield

Shield Type

Tape

Material

Bi-Laminate (Alum+Poly)

Coverage

100%

Drainwire Type

24 AWG (7×32) TC

Outer Jacket

Material

PVC - Polyvinyl Chloride

Nom. Thickness

0.035 in (0.89 mm)

Nom. Diameter

0.445 in

Ripcord

Yes

Overall Cable Diameter (Nominal)

0.445 in

Electricals

Element

Pair(s)

Nom. Conductor DCR

28.8 Ohm/1000ft

Nom. Capacitance Cond-to-Cond

15.5 pF/ft (50.9 pF/m)

Nom. Capacitance Cond-to-Other (Conds + Shield)

27.5 pF/ft (90.2 pF/m)

Nom. Characteristic Impedence

100 Ohm

Nom. Velocity of Prop.

66%

Max. Current

1.05 Amps per Conductor at 30ºC

Element

Conductor(s)

Nom. Conductor DCR

28.3 Ohm/1000ft (92.8 Ohm/km)

Max. Current

3.36 Amps per Conductor at 30ºC

Nom Outer Shield DCR

12 Ohm/1000ft (39 Ohm/km)

Voltage

UL Voltage Rating

30 V (AWM 2919), 300 V (CM)
