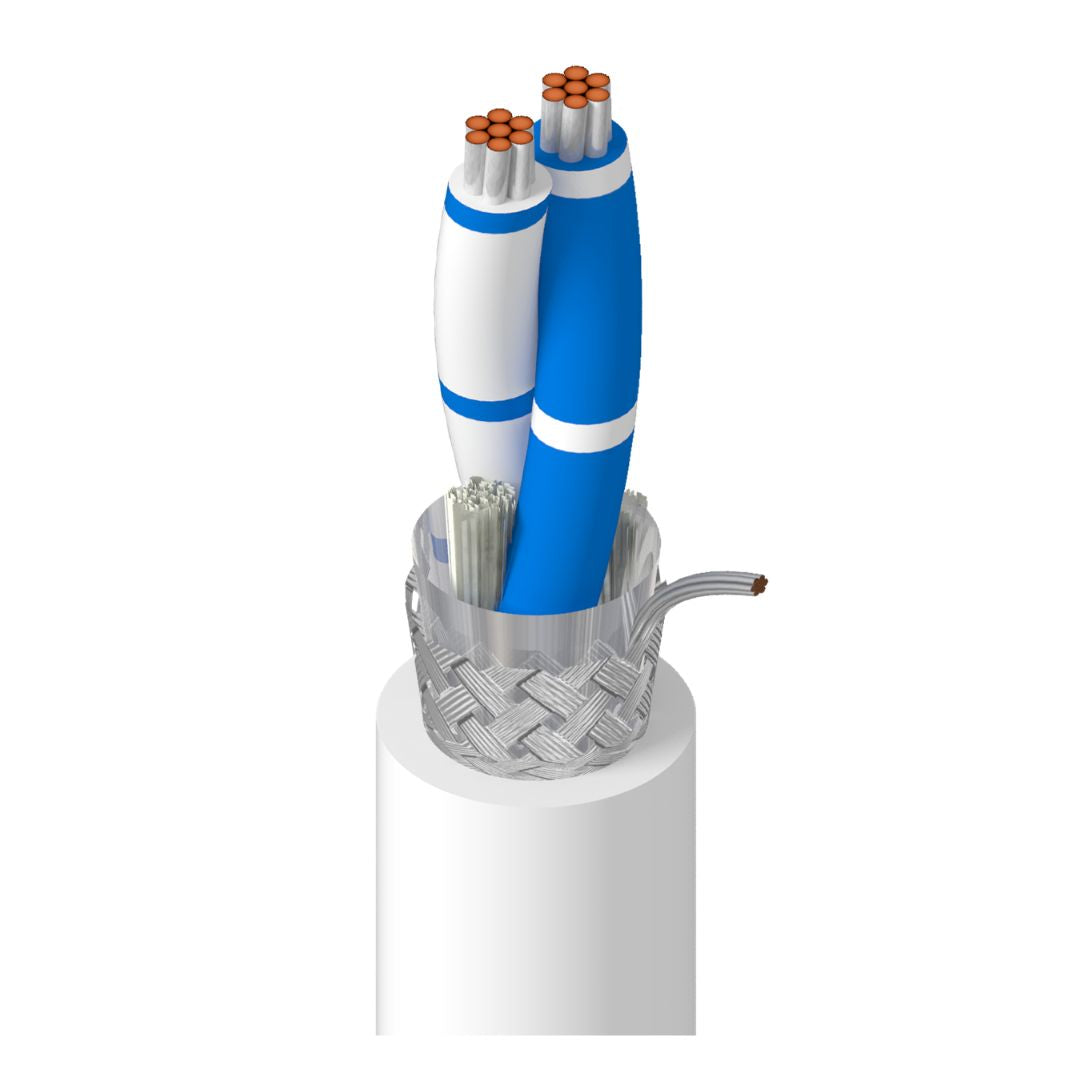

Key Specifications

Conductor

Element

Pair(s)

No. of Elements

1

Size

24 AWG

Stranding

7x32

Material

TC - Tinned Copper

Insulation

Element

Pair(s)

Material

PE - Polyethylene

Nom. Thickness

0.023 in (0.58 mm)

Nom. Insulation Diameter

0.068 in (1.7 mm)

Color Code

White/Blue Stripe & Blue/White Stripe

Outer Shield

Shield Type

Tape

Material

Bi-Laminate (Alum+Poly)

Coverage

100%

Drainwire Type

24 AWG (7x32) TC

Shield Type

Braid

Material

Tinned Copper (TC)

Coverage

90%

Outer Jacket

Material

PVC - Polyvinyl Chloride

Nom. Thickness

0.035 in (0.89 mm)

Nom. Diameter

0.232 in (5.89 mm)

Outer Jacket1 Table Notes

Jacket OD +/- 0.020

Overall Cable Diameter (Nominal)

0.232 in (5.89 mm)
