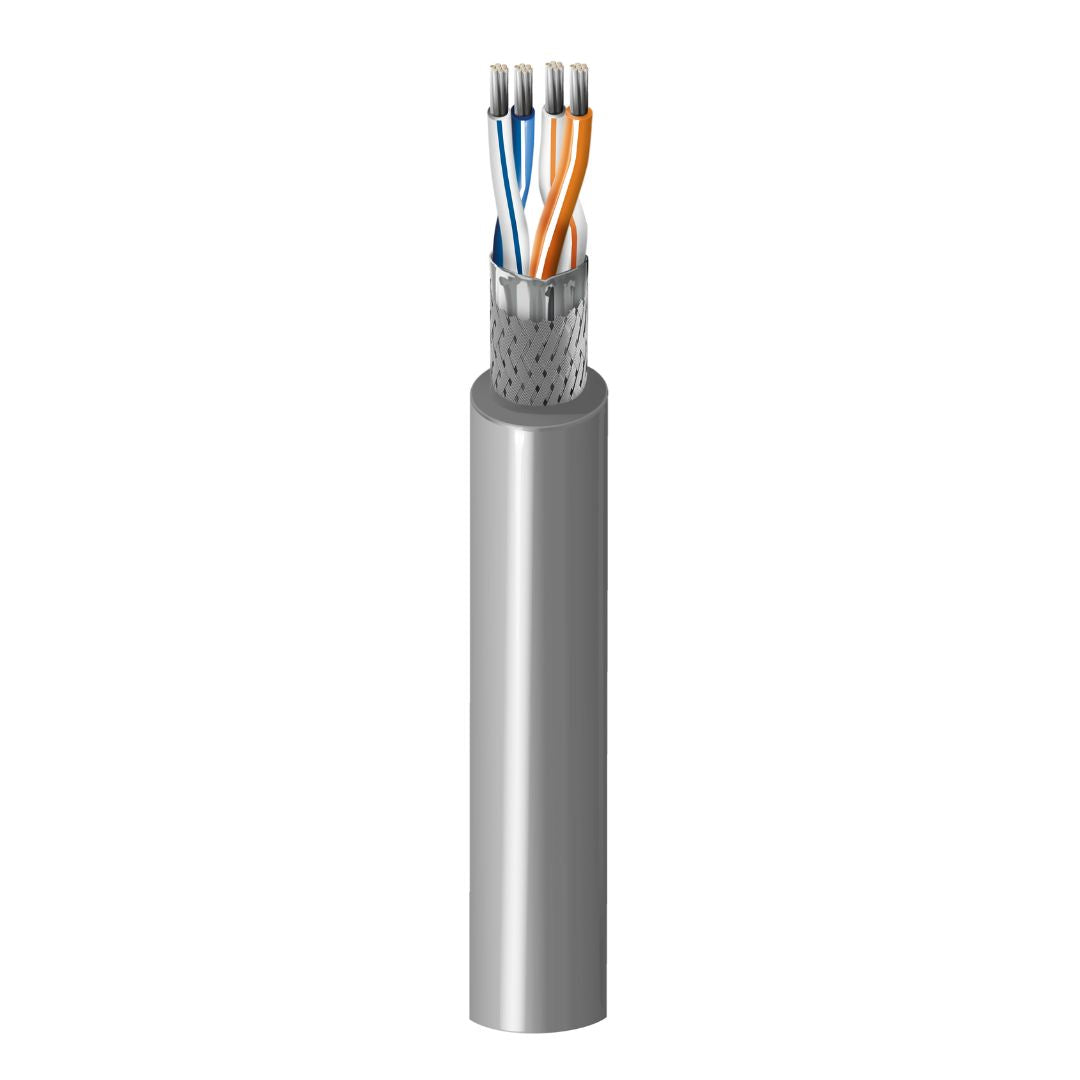

Key Specifications

Conductor

Element

Pair(s)

No. of Elements

2

Size

24 AWG

Stranding

7×32

Material

TC - Tinned Copper

Insulation

Element

Pair(s)

Material

PE - Polyethylene

Nom. Thickness

0.022 in (0.56 mm)

Nom. Insulation Diameter

0.068 in (1.7 mm)

Color Code

White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe

Outer Shield

Shield Type

Tape
Braid

Material

Bi-Laminate (Alum+Poly)
Tinned Copper (TC)

Coverage

100%
90%

Drainwire Type

24 AWG (7×32) TC

Outer Jacket

Material

PVC - Polyvinyl Chloride

Nom. Thickness

0.035 in (0.89 mm)

Nom. Diameter

0.340 in (8.64 mm)

Outer Jacket1 Table Notes

Jacket OD +/- 0.025

Overall Cable Diameter (Nominal)

0.340 in (8.64 mm)

Electricals

Element

Pair(s)

Nom. Conductor DCR

24 Ohm/1000ft (79 Ohm/km)

Nom. Capacitance Cond-to-Cond

12.8 pF/ft (42.0 pF/m)

Nom. Capacitance Cond-to-Other (Conds + Shield)

23 pF/ft (75 pF/m)

Nom. Characteristic Impedence

120 Ohm

Nom. Delay

1.54 ns/ft

Nom. Velocity of Prop.

66%

Max. Current

2.1 Amps per Conductor at 25ºC

Nom Outer Shield DCR

2.2 Ohm/1000ft (7.2 Ohm/km)

High Frequency (Nominal/Typical)

Element

Pair(s)

Frequency [MHz]

1

Nom. Insertion Loss (Attenuation) [dB/100ft]

0.6

Voltage

UL Voltage Rating

300 V (CM), 30 V (UL AWM 2919)
