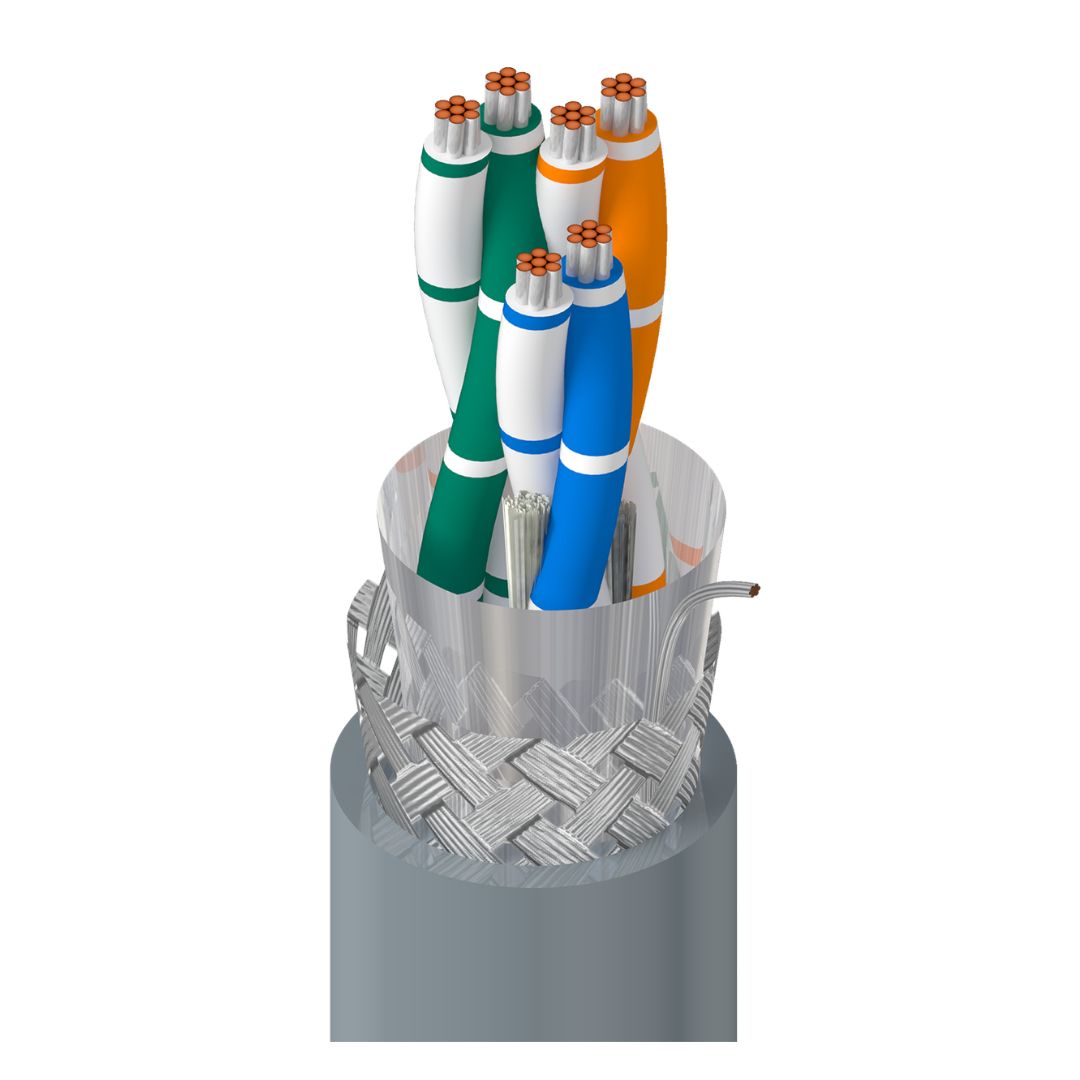

BELDEN 9843
BELDEN 9843
Key Specifications |
|
Conductor |
|
Element |
Pair(s) |
No. of Elements |
3 |
Size |
24 AWG |
Stranding |
7x32 |
Material |
TC - Tinned Copper |
Insulation |
|
Element |
Pair(s) |
Material |
PE - Polyethylene |
Nom. Thickness |
0.022 in (0.56 mm) |
Nom. Insulation Diameter |
0.068 in (1.7 mm) |
Color Code |
White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe, White/Green Stripe & Green/White Stripe |
Outer Shield |
|
Shield Type |
Tape |
Material |
Bi-Laminate (Alum+Poly) |
Coverage |
100% |
Drainwire Type |
24 AWG (7x32) TC |
Braid |
Tinned Copper (TC) |
Coverage |
90% |
Outer Jacket |
|
Material |
PVC - Polyvinyl Chloride |
Nom. Thickness |
0.035 in (0.89 mm) |
Nom. Diameter |
0.360 in (9.14 mm) |
Overall Cable Diameter (Nominal) |
|
0.360 in (9.14 mm) |
|
Electricals |
|
Element |
Pair(s) |
Nom. Conductor DCR |
24 Ohm/1000ft |
Nom. Capacitance Cond-to-Cond |
12.8 pF/ft (42.0 pF/m) |
Nom. Capacitance Cond-to-Other (Conds + Shield) |
23 pF/ft (75 pF/m) |
Nom. Characteristic Impedence |
120 Ohm |
Nom. Delay |
1.6 ns/ft |
Nom. Velocity of Prop. |
66% |
Max. Current |
1.54 Amps per Conductor at 25ºC |
Nom Outer Shield DCR |
|
2.3 Ohm/1000ft (7.5 Ohm/km) |
|
High Frequency (Nominal/Typical) |
|
Element |
Pair(s) |
Frequency [MHz] |
1 |
Nom. Insertion Loss (Attenuation) |
0.6 dB/100ft |
Voltage |
|
UL Voltage Rating |
300 V (CM), 30 V (UL AWM 2919) |
