Key Specifications

Power Supply

AC: 220–240 V, 50/60 Hz
DC: 24 V

Rated Output

240 W

Power Consumption

AC: 600 W (rated output)

AC: 330 W (operation at EN60065)

DC: 20 A (operation at rated output)

Frequency Response

50 Hz (±3 dB) – 20,000 Hz (±5 dB)

Distortion

Less than 1% THD at 1 kHz, 1/3 rated output power

Inputs (Sensitivity, Impedance, Connector)

MIC 1

Rear: 1.0 mV (-60 dB*), Balanced 600 Ω, Phone Jack, Echo

MIC 2–5

Rear: 1.0 mV (-60 dB*), Balanced 600 Ω, Phone Jack

AUX 1–3

Rear: 300 mV (-10 dB*), Unbalanced 10 kΩ, RCA Pin Jack

Outputs

Speaker Outputs

100 V / 4 Ω

PRE AMP OUT

1.0 V (0 dB*), Unbalanced 600 Ω, RCA Pin Jack

PWR AMP IN

1.0 V (0 dB*), Unbalanced 10 kΩ, RCA Pin Jack

REC OUT

1.0 V (0 dB*), Unbalanced 600 Ω, RCA Pin Jack

Phantom Power

DC +21 V (MIC 1)

S/N Ratio

More than 80 dB (volume control full CCW)

More than 50 dB (volume control full CW)

Output Regulation

Less than 3 dB no load to full load

Controls

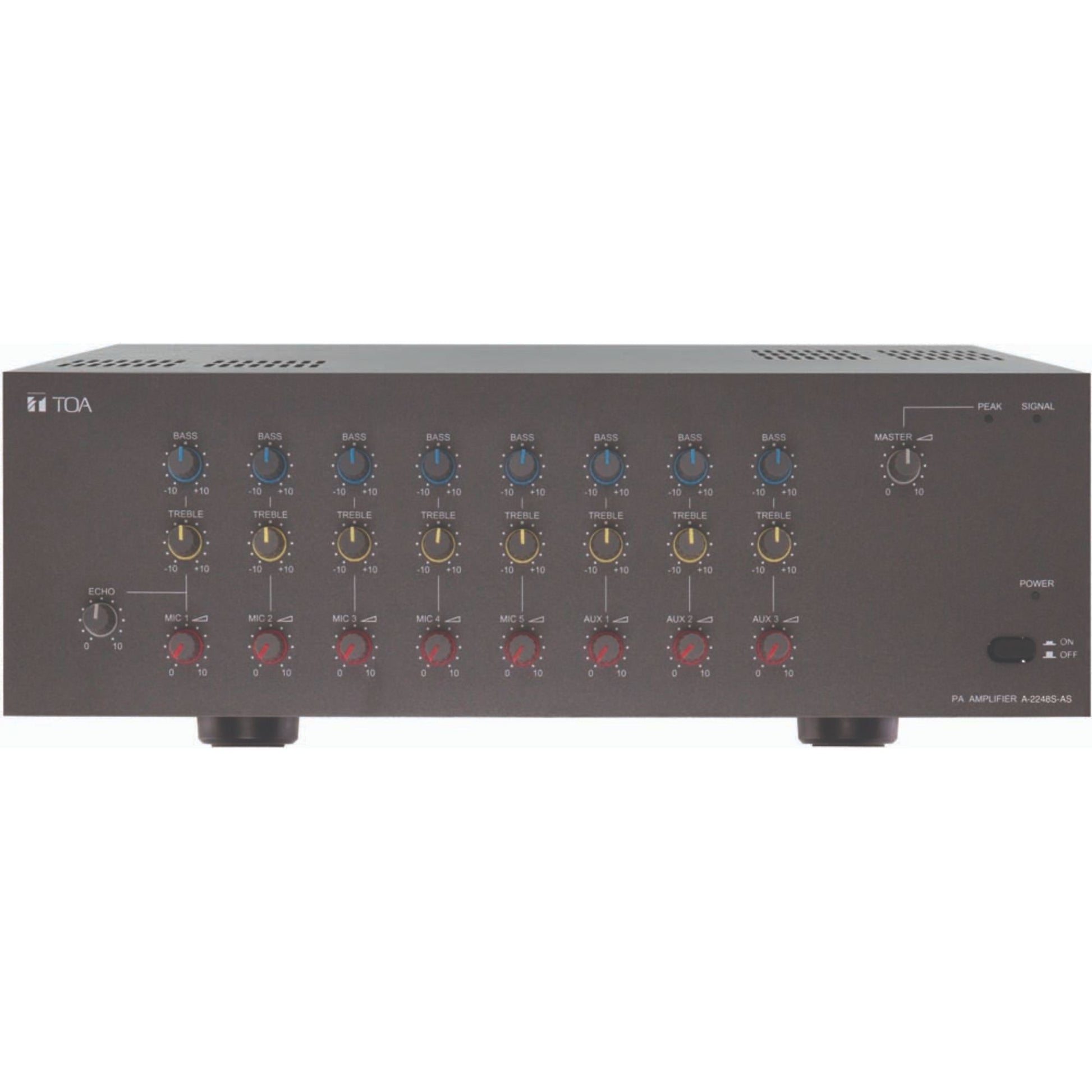

Front Panel Controls

5 Microphone Gain Controls
3 Aux Gain Controls
8 Bass Tone Controls
8 Treble Tone Controls
1 Echo Level Control
1 Master Control
1 Power On/Off Switch

Tone Control

Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10 kHz

Indicators

1 LED Signal, 1 LED Peak, 1 LED Power On

Ambient Temperature

0 °C to +40 °C

Finish

Front Panel: Aluminum Gray
Case: Steel plate, Gray

Dimensions

420 (W) × 144 (H) × 361 (D) mm

Weight

14.5 kg
