Key Specifications

Power & Performance

Power Source

100 - 240 V AC, 50/60 Hz

Rated Output

240 W

Power Consumption

62 W (at 1/8 rated output)

Frequency Response

50 Hz - 20,000 Hz

Distortion / SNR

< 1% (at 1 kHz) | > 60 dB

Audio Inputs & Media

MIC 1 (Phantom Support)

-60 dB | 600 Ω | Balanced Phone or RJ45

MIC 2 - 3

-60 dB | 600 Ω | Balanced Phone Jack

MIC 4 / AUX 1

Switchable: -60 dB (Mic) or -20 dB (Line)

AUX 2

-20 dB | 10 kΩ | Unbalanced RCA

Integrated Media Player

MP3 (USB/SD up to 32GB), Bluetooth, FM, Rec

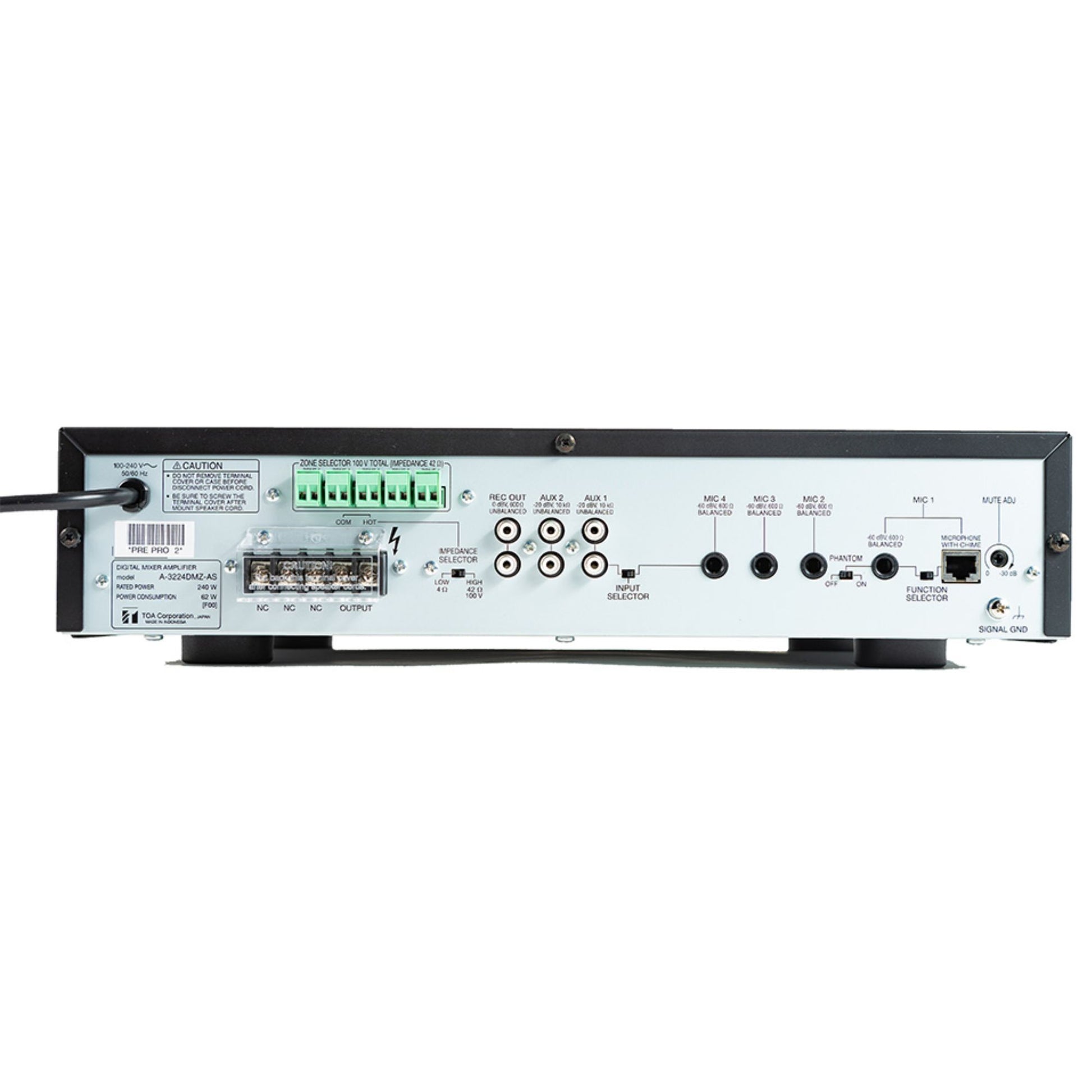

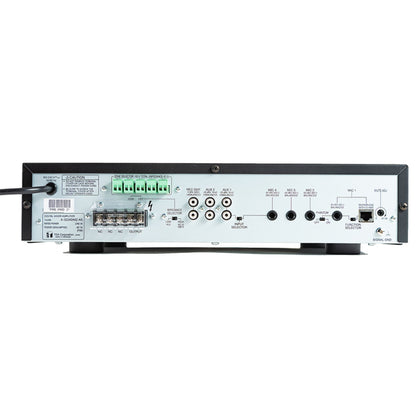

Outputs & Routing

Speaker Output

High Imp: 100 V (42 Ω) | Low Imp: 4 Ω

Zone Management

5-Zone Selector (All zones simultaneously selectable)

Recording Output

0 dB | 600 Ω | Unbalanced RCA

Controls & Physical

Tone Control

Bass & Treble: ±10 dB at 100 Hz / 10 kHz

Muting

MIC 1 overrides other inputs (0-30 dB attenuation)

Dimensions (W x H x D)

420 × 100.9 × 357 mm

Weight / Cooling

4.9 kg (10.8 lb) | Fan Cooling
