Key Specifications

Power Source

100–240 V AC, 50/60 Hz

Rated Output

60 W

Frequency Response

50 Hz – 20,000 Hz

Distortion

≤ 1% (at 1 kHz, rated output)

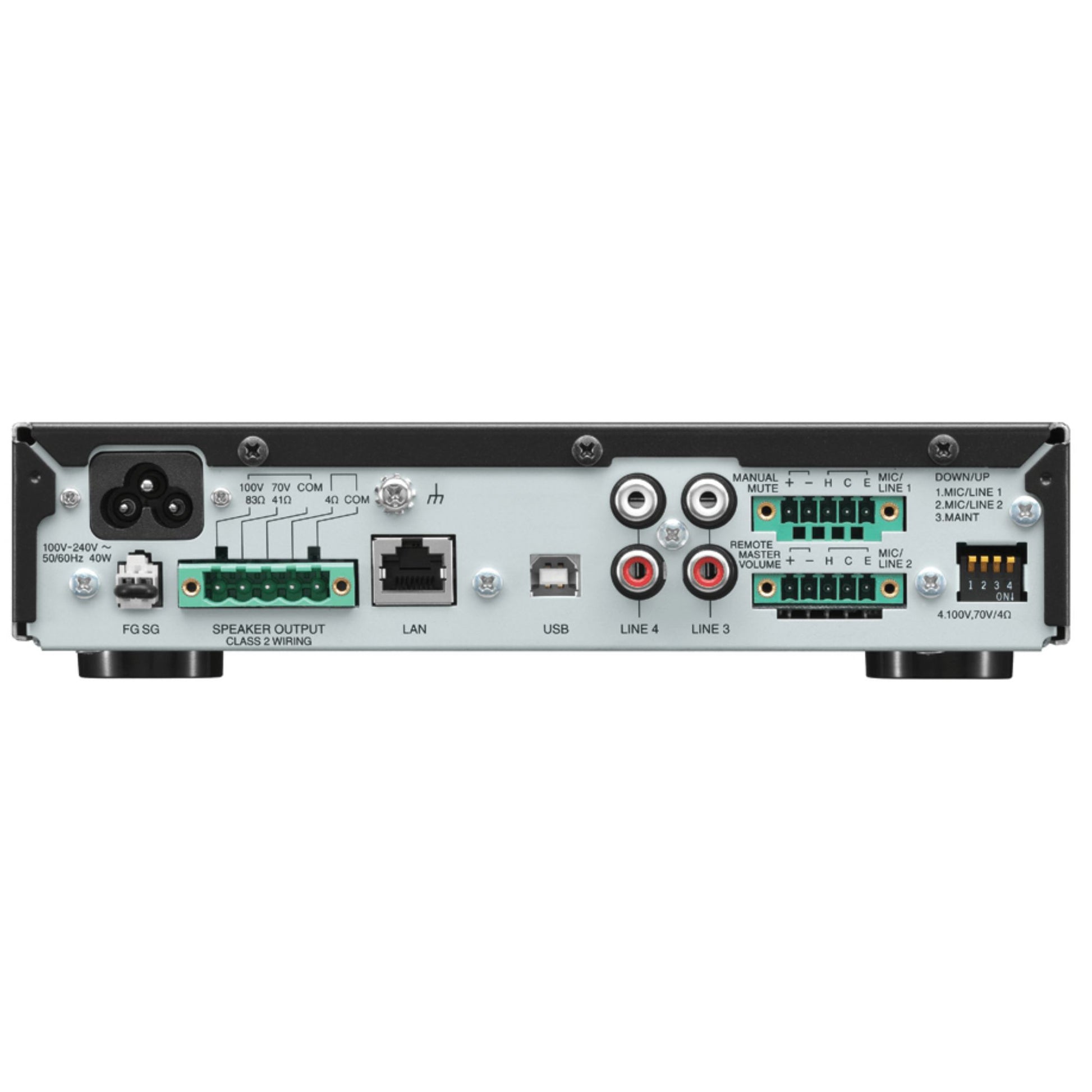

Input & Output Configuration

Inputs 1 & 2

MIC/LINE Selectable (Balanced Terminal Block)

Inputs 3 & 4

LINE (Unbalanced RCA Pin Jack)

Speaker Output

4 Ω / 70 V (83 Ω) / 100 V (170 Ω)

DSP & Digital Functions

Equalization

5-point Parametric EQ (per Input/Output)

Compression

ON/OFF Settable (Inputs 1 & 2)

Network

100BASE-TX (Web Browser Configuration)

Physical Specs

Dimensions

210 (W) × 52.5 (H) × 375 (D) mm

Weight

3.6 kg (7.94 lbs)
