Key Specifications

Power & Performance

Power Source

220 - 240 V AC, 50/60 Hz

Rated Output

120 W

Power Consumption

34 W (at 1/8 maximum output)

Frequency Response

50 Hz - 20,000 Hz (±3 dB)

Distortion / SNR

< 1% (at 1 kHz) | > 60 dB

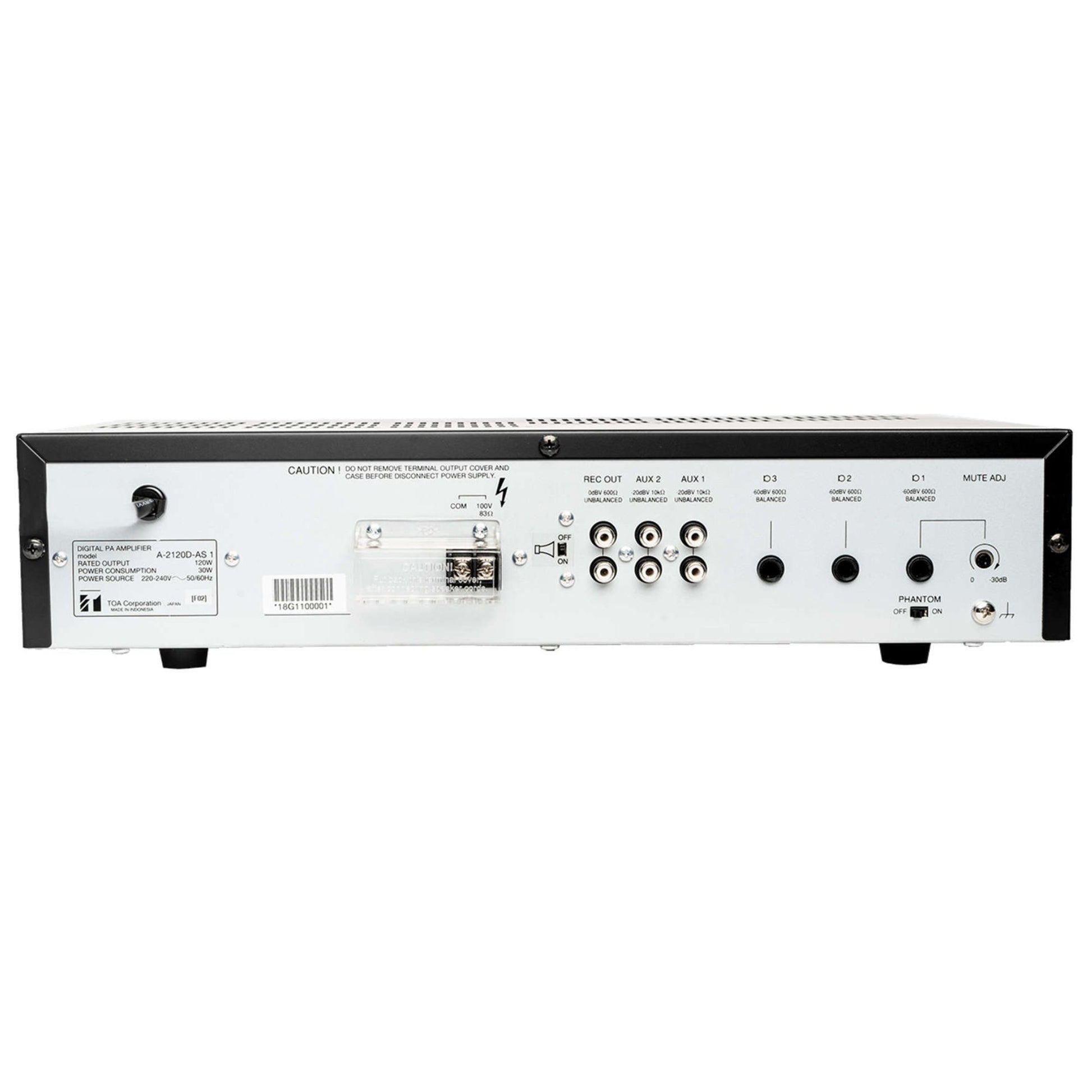

Audio Inputs & Outputs

MIC 1 - 3

-60 dB | 600 Ω | Balanced 3P XLR

AUX 1 - 2

-20 dB | 10 kΩ | Unbalanced RCA

Speaker Output

High Impedance: 100 V (83 Ω) | Balanced

Recording Output

0 dB | 600 Ω | Unbalanced RCA

Controls & Functions

Tone Control

Bass & Treble: ±10 dB at 100 Hz / 10 kHz

Phantom Power

DC +21 V (Available on MIC 1)

Muting Function

MIC 1 overrides other inputs (0-30 dB attenuation)

Visual Indicators

Power LED, Peak LED, Signal LED

Physical Specifications

Dimensions (W x H x D)

420 × 100.6 × 280.3 mm (16.54 × 3.96 × 11.04")

Weight

4.0 kg (8.88 lb)

Finish

Black ABS Resin Panel | Black Steel Case
