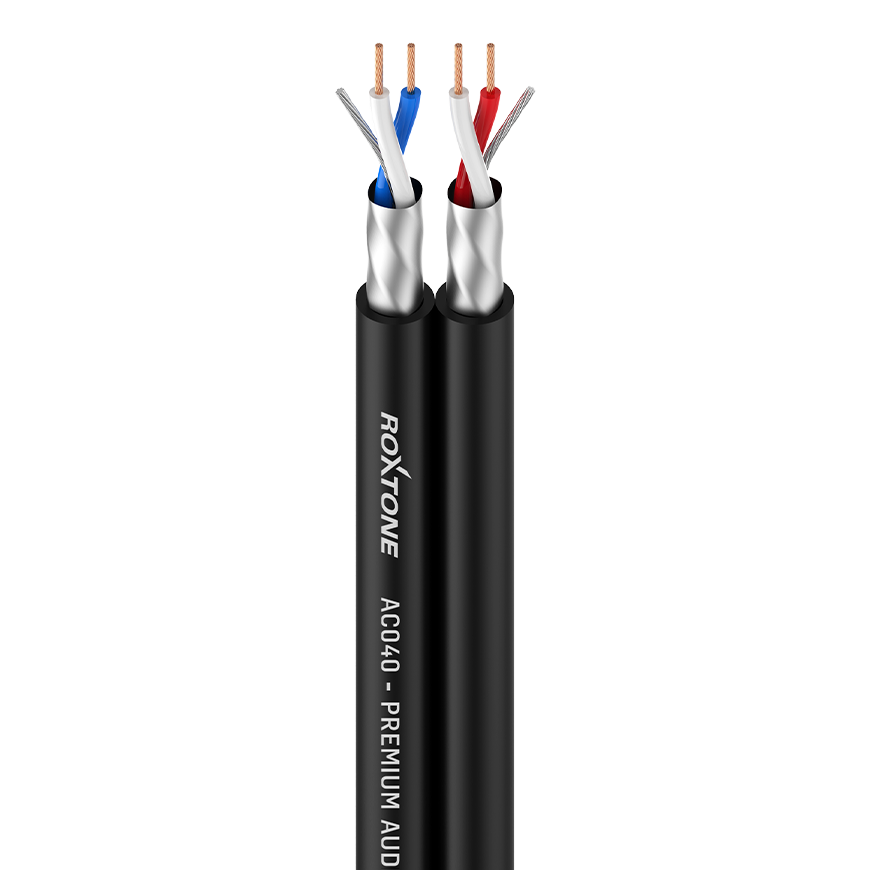

Key Specifications

Jacket Material / Diameter

PVC / 5 x 10 mm

AWG

24

Inner Conductors

2 x 2 x 0.22 mm²

Copper Strand (per Cond.)

28 x 0.10 mm

Conductor Insulation

PE (Polyethylene) 1.40 mm

Shielding Type

AL Fleece (Aluminum Foil)

Shielding Factor

100 %

Temperature Range

-20 °C to +70 °C

Packaging Options

100 m / 300 m roll

Electrical Data

Capacitance (Cond./Cond.)

70 pF per 1 m

Capacitance (Cond./Shield.)

120 pF per 1 m

Conductor Resistance

< 85 Ω per 1 km

Shielding Resistance

26 Ω per 1 km

Insulation Resistance

> 1 GΩ per 1 km

Surge Impedance

Approx. 100 Ω
