The MIPRO ACT-22T is a compact mini transmitter in a solid plastic housing that can be used together with neckband or instrument microphones.The transmitter works in the UHF frequency band of 450-934 MHz and is compatible with all receivers of the ACT series that work with a switching bandwidth of 24 MHz.The channel is easily set by the receiver using the ACT function.
The transmitter has a permanently installed Li-ion battery with an operating time of approx. 6 hours when fully charged.A short charge of 10 minutes is sufficient for an operating time of approx. 40 minutes.The ACT-22T can be connected directly to the MIPRO headsets MU-13d, MU-23d, MU-55 HNSd and MU-210d.

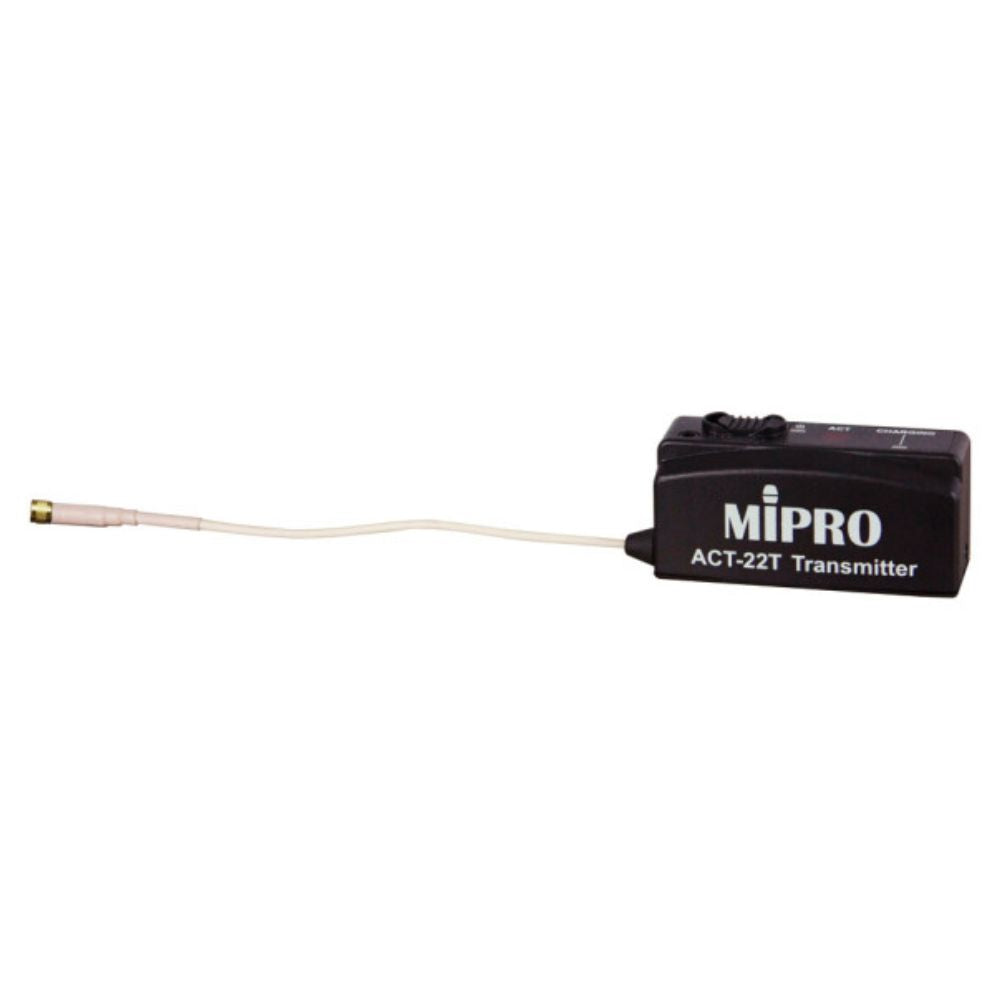

MIPRO ACT-22T
Key Specification
Model
ACT-22T
Frequency Range
UHF 480 ~ 934 MHz (country dependent)
Bandwidth
24 MHz
Oscillation Mode
PLL Synthesized
Frequency Stability
≦ ±0.005% (-10 ~ +60℃)
Channel Set-up
ACT Sync
RF Output Power
10 ~ 30 mW (country dependent)
Deviation
< ±40 kHz
Spurious Emissions
< -55 dBc
Gain
0 dBV
Battery Type
Built-in rechargeable lithium battery
Current Consumption
Approx. 38 mA
Operating Time
Min. 4 hours
MIPRO ACT-22T Accessories
No accessories available.
