ACT 22T / MU 23D
ACT 22T / MU 23D
MIPRO
Regular price
₱20,000.00 VAT INC.
Regular price
Sale price
₱20,000.00
Unit price
per
UNIT: SET
Product Code: SKU:MPRO-ACT22T/M-CHN-5809
Key Features
Authorized Dealer
Certified Quality Products
After-Sales Support
Secure Payments

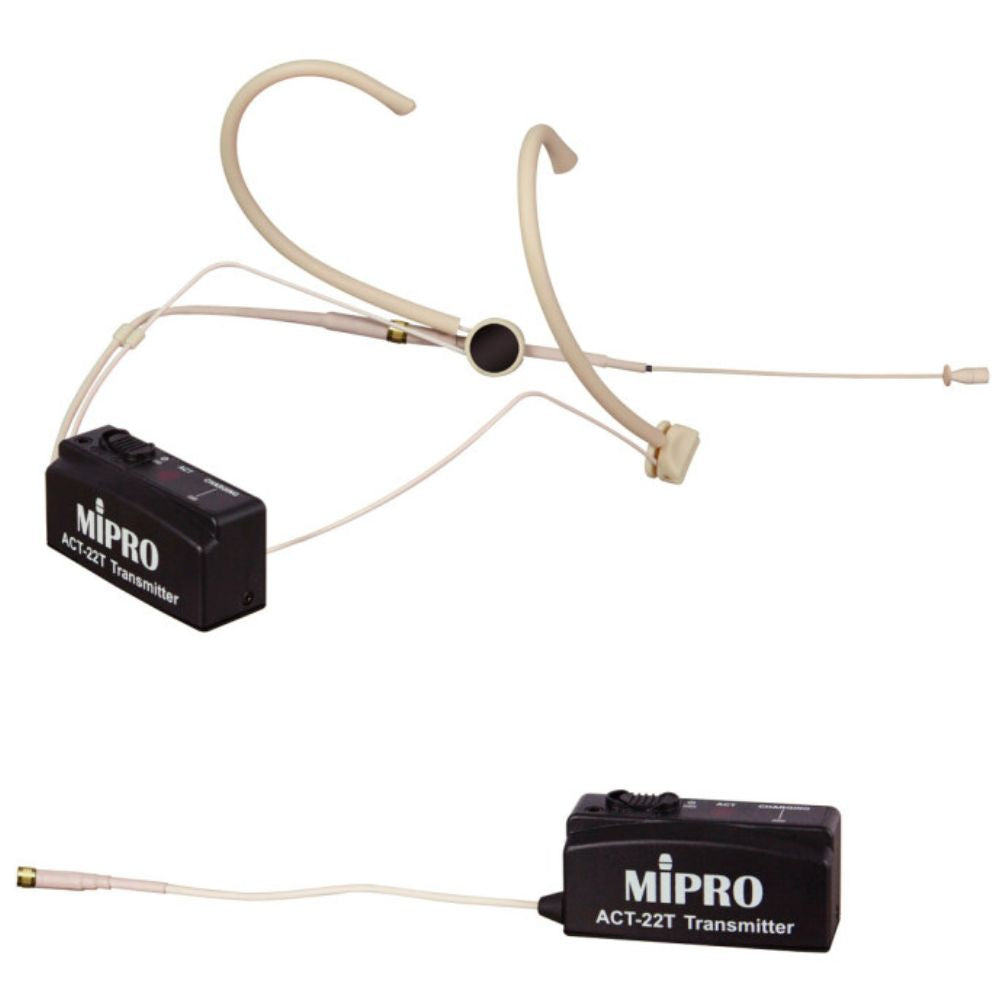

MIPRO ACT 22T / MU 23D
MIPRO ACT 22T / MU 23D
|
Key Specification |
|
|
Model |
ACT-22T |
|
Frequency Range |
UHF 480 ~ 934 MHz (country dependent) |
|
Bandwidth |
24 MHz |
|
Oscillation Mode |
PLL Synthesized |
|
Frequency Stability |
≦ ±0.005% (-10 ~ +60℃) |
|
Channel Set-up |
ACT Sync |
|
RF Output Power |
10 ~ 30 mW (country dependent) |
|
Deviation |
< ±40 kHz |
|
Spurious Emissions |
< -55 dBc |
|
Gain |
0 dBV |
|
Battery Type |
Built-in rechargeable lithium battery |
|
Current Consumption |
Approx. 38 mA |
|
Operating Time |
Min. 4 hours |
|
Key Specification |
|
|
Model |
MU-23D |
|
Permanent Installation |
No |
|
Weight |
22 g |
|
Balanced Audio Output |
4-pin Mini XLR |
|
Placement |
Head |
|
Polar Pattern |
Omni-directional |
|
Transducer Principle |
Condenser Microphone |
MIPRO ACT 22T / MU 23D Accessories
- No accessories available.
