ACT-311 / 32H
ACT-311 / 32H
MIPRO
UNIT: SET
Product Code: SKU:MPRO-ACT311/3-CHN-2205
Key Features

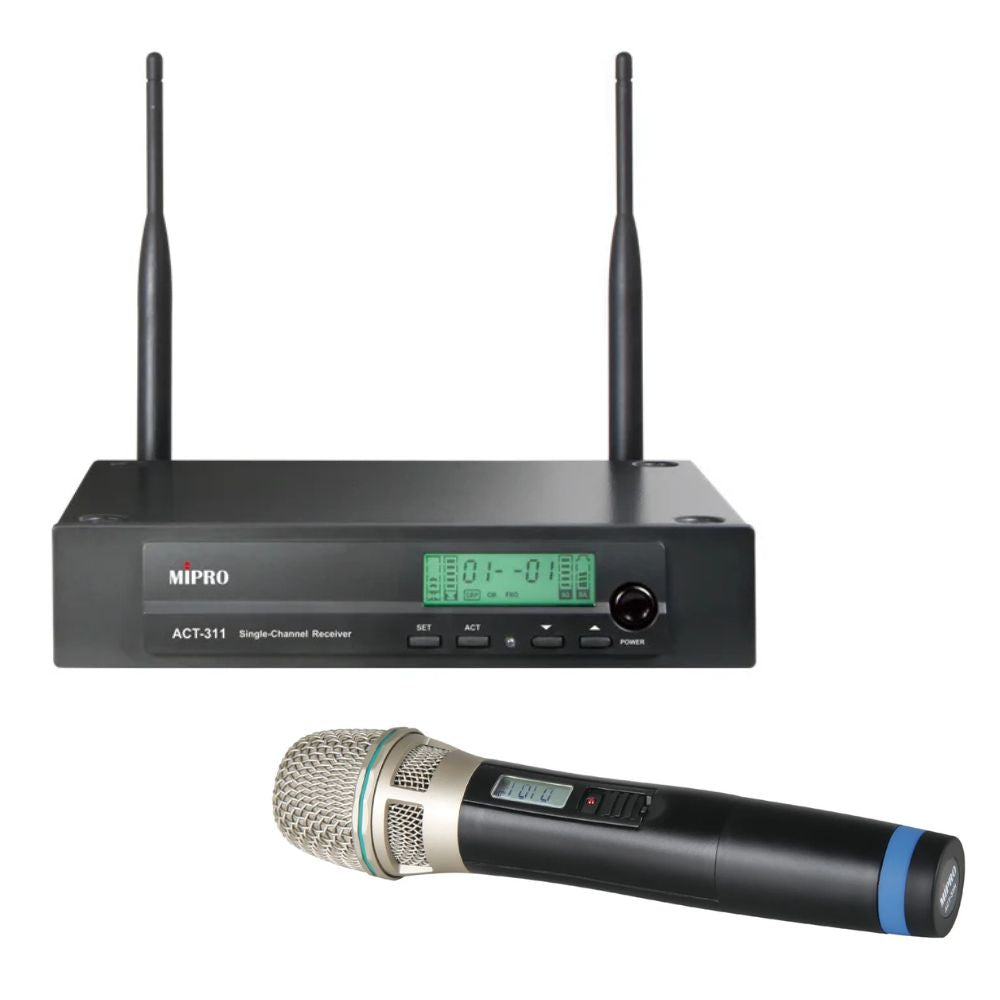

MIPRO ACT-311 / 32H
MIPRO ACT-311 / 32H
|
Key Specification |
|
|
Model |
ACT-311 |
|
Name |
UHF Analog Single-Channel Receiver |
|
Channel |
Single |
|
Chassis |
Half-rack (9.5") metal chassis |
|
Frequency Range |
UHF 480–934 MHz (country dependent) |
|
Bandwidth |
24 MHz |
|
Receiving Mode |
Diversity |
|
Display |
Green backlit LCD |
|
Control Interface |
ACT sync button, setting buttons |
|
Sensitivity |
18 dBμV @ S/N > 80 dB |
|
Frequency Response |
50 Hz–18 kHz |
|
Dynamic Range |
> 106 dBA |
|
Audio Outputs |
Balanced XLR and unbalanced 1/4" (6.3 mm) for independent outputs. Three-level gain setting: +16 / 0 / -6 dB (balanced), +10 / 0 / -6 dB (unbalanced) |
|
Antenna |
Detachable. 50Ω TNC female connector provides bias for the MIPRO antenna systems. |
|
Power Supply |
DC 12–15 V. External AC 100–240 V switching power supply |
|
Dimensions (W × H × D) |
210 × 44 × 165 mm |
|
Weight |
Approx. 0.8 kg |
|
Key Specification |
|
|
Model |
ACT-32H |
|
Name |
UHF Analog Handheld Transmitter |
|
Frequency Range |
UHF 480–934 MHz (country dependent) |
|
Bandwidth |
24 MHz |
|
Display |
Backlit LCD displays channel and battery status |
|
Control Interface |
ACT sync sensor |
|
Mic. Capsule Modules |
MU-80 condenser or other compatible capsule modules |
|
RF Power Output |
30 mW (country dependent) |
|
Power Supply |
2 × AA alkaline |
|
Battery Charging |
N/A |
|
Dimensions (Ø × L) |
51 × 234 mm |
|
Weight |
Approx. 250 g |
MIPRO ACT-311 / 32H Accessories
- No accessories available.
