Key Specification

Model

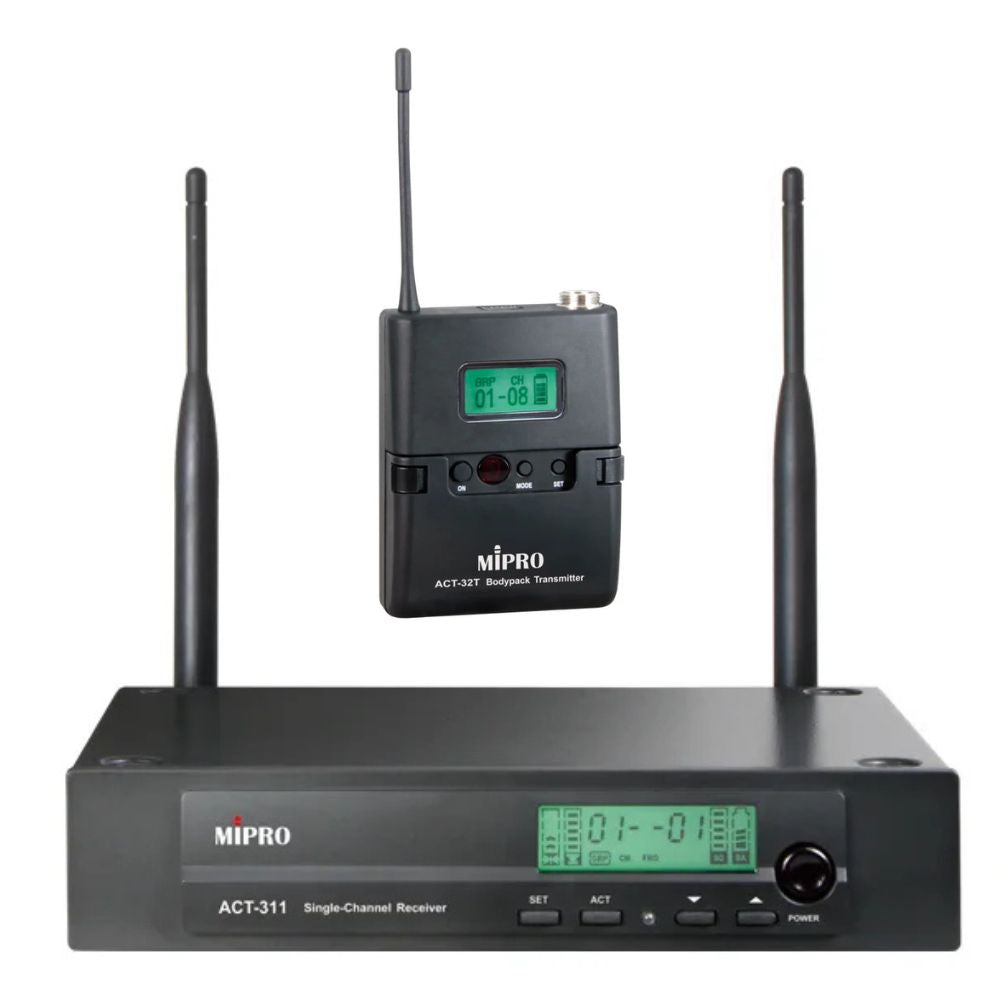

ACT-311

Name

UHF Analog Single-Channel Receiver

Channel

Single

Chassis

Half-rack (9.5") metal chassis

Frequency Range

UHF 480–934 MHz (country dependent)

Bandwidth

24 MHz

Receiving Mode

Diversity

Display

Green backlit LCD

Control Interface

ACT sync button, setting buttons

Sensitivity

18 dBμV @ S/N > 80 dB

Frequency Response

50 Hz–18 kHz

Dynamic Range

> 106 dBA

Audio Outputs

Balanced XLR and unbalanced 1/4" (6.3 mm) for independent outputs. Three-level gain setting: +16 / 0 / -6 dB (balanced), +10 / 0 / -6 dB (unbalanced)

Antenna

Detachable. 50Ω TNC female connector provides bias for the MIPRO antenna systems.

Power Supply

DC 12–15 V. External AC 100–240 V switching power supply

Dimensions (W × H × D)

210 × 44 × 165 mm

Weight

Approx. 0.8 kg

Key Specification

Model

ACT-32T

Name

UHF Analog Bodypack Transmitter

Frequency Range

UHF 480–934 MHz (country dependent)

Bandwidth

24 MHz

Display

Backlit LCD displays channel, battery status and menus

Control Interface

ACT sync sensor, setting buttons and mute button

Mic. Capsule Modules

MIPRO lavalier and headworn mics

Input Connector

MIPRO 4-Pin Mini XLR

Audio Control

AF Gain

Max. Audio Input

0 dBV

Gain Setting

-12 dB to +12 dB / 6 dB per segment

RF Power Output

10 mW / 50 mW switchable (country dependent)

Power Supply

Two AA alkaline

Dimensions (W × H × D)

63 × 82 × 22 mm

Weight

Approx. 86 g
