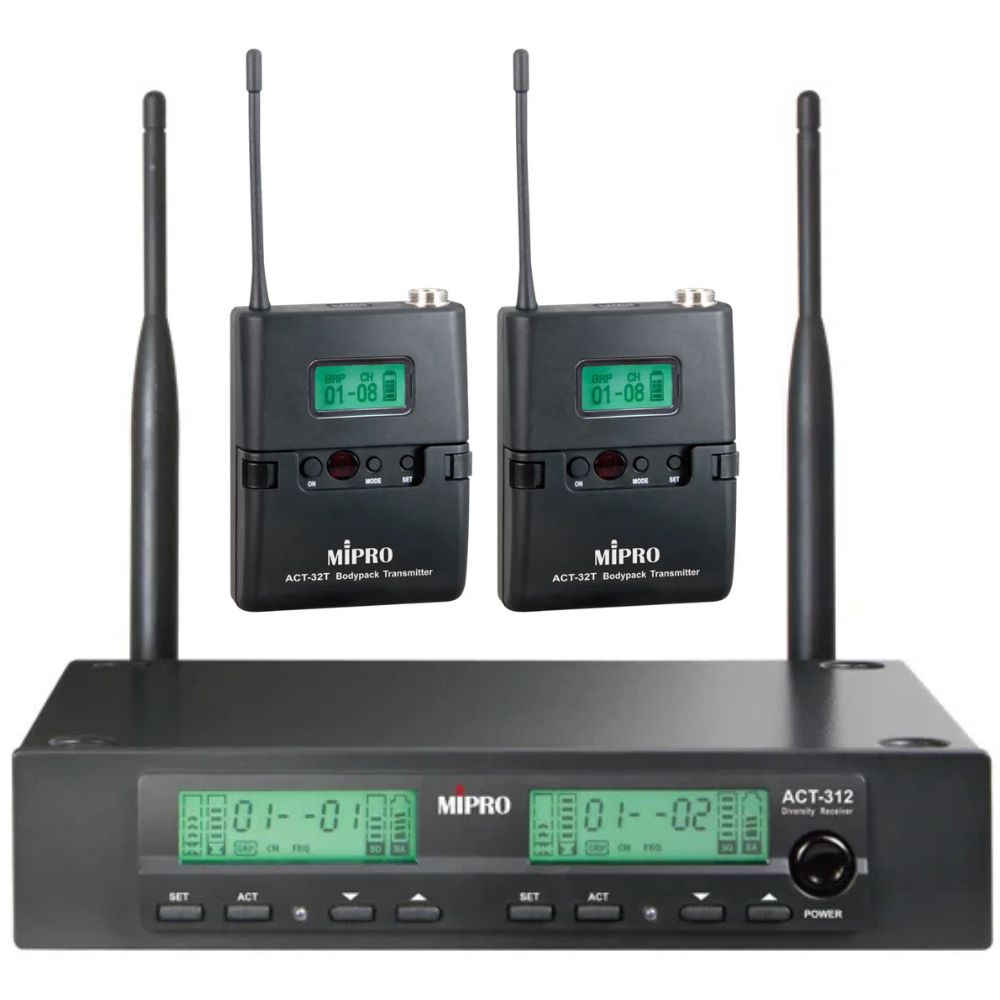

ACT-312 / ACT-32T*2
ACT-312 / ACT-32T*2
MIPRO
UNIT: SET
Product Code: SKU:MPRO-ACT312/3-CHN-1023
Key Features
MIPRO ACT-312 / ACT-32T*2
MIPRO ACT-312 / ACT-32T*2
|
Key Specification |
|
Model |
ACT-312 |
Name |
UHF Analog Dual-Channel Receiver |
Channel |
Dual |
Chassis |
Half-rack (9.5") metal chassis |
Frequency Range |
UHF 480–934 MHz (country dependent) |
Bandwidth |
24 MHz |
Receiving Mode |
Diversity |
Display |
Green backlit LCD |
Control Interface |
ACT sync button, setting buttons |
Sensitivity |
18 dBμV @ S/N > 80 dB |
Frequency Response |
50 Hz–18 kHz |
Dynamic Range |
> 106 dBA |
Audio Outputs |
Balanced XLR and unbalanced 1/4" (6.3 mm) for independent outputs, plus a mixed XLR & 1/4" (6.3 mm) output. Three-level gain setting: +16 / 0 / -6 dB (balanced), +10 / 0 / -6 dB (unbalanced) |
Antenna |
Detachable. 50Ω TNC female connector provides bias for the MIPRO antenna systems. |
Power Supply |
DC 12–15 V. External AC 100–240 V switching power supply |
Dimensions (W × H × D) |
210 × 44 × 165 mm |
Weight |
Approx. 0.9 kg |
|
Key Specification |
|
Model |
ACT-312 |
Name |
UHF Analog Dual-Channel Receiver |
Channel |
Dual |
Chassis |
Half-rack (9.5") metal chassis |
Frequency Range |
UHF 480–934 MHz (country dependent) |
Bandwidth |
24 MHz |
Receiving Mode |
Diversity |
Display |
Green backlit LCD |
Control Interface |
ACT sync button, setting buttons |
Sensitivity |
18 dBμV @ S/N > 80 dB |
Frequency Response |
50 Hz–18 kHz |
Dynamic Range |
> 106 dBA |
Audio Outputs |
Balanced XLR and unbalanced 1/4" (6.3 mm) for independent outputs, plus a mixed XLR & 1/4" (6.3 mm) output. Three-level gain setting: +16 / 0 / -6 dB (balanced), +10 / 0 / -6 dB (unbalanced) |
Antenna |
Detachable. 50Ω TNC female connector provides bias for the MIPRO antenna systems. |
Power Supply |
DC 12–15 V. External AC 100–240 V switching power supply |
Dimensions (W × H × D) |
210 × 44 × 165 mm |
Weight |
Approx. 0.9 kg |
|
Key Specification |
|
Model |
ACT-32T |
Name |
UHF Analog Bodypack Transmitter |
Frequency Range |
UHF 480–934 MHz (country dependent) |
Bandwidth |
24 MHz |
Display |
Backlit LCD displays channel, battery status and menus |
Control Interface |
ACT sync sensor, setting buttons and mute button |
Mic. Capsule Modules |
MIPRO lavalier and headworn mics |
Input Connector |
MIPRO 4-Pin Mini XLR |
Audio Control |
AF Gain |
Max. Audio Input |
0 dBV |
Gain Setting |
-12 dB to +12 dB / 6 dB per segment |
RF Power Output |
10 mW / 50 mW switchable (country dependent) |
Power Supply |
Two AA alkaline |
Dimensions (W × H × D) |
63 × 82 × 22 mm |
Weight |
Approx. 86 g |
