Key Specification

Model

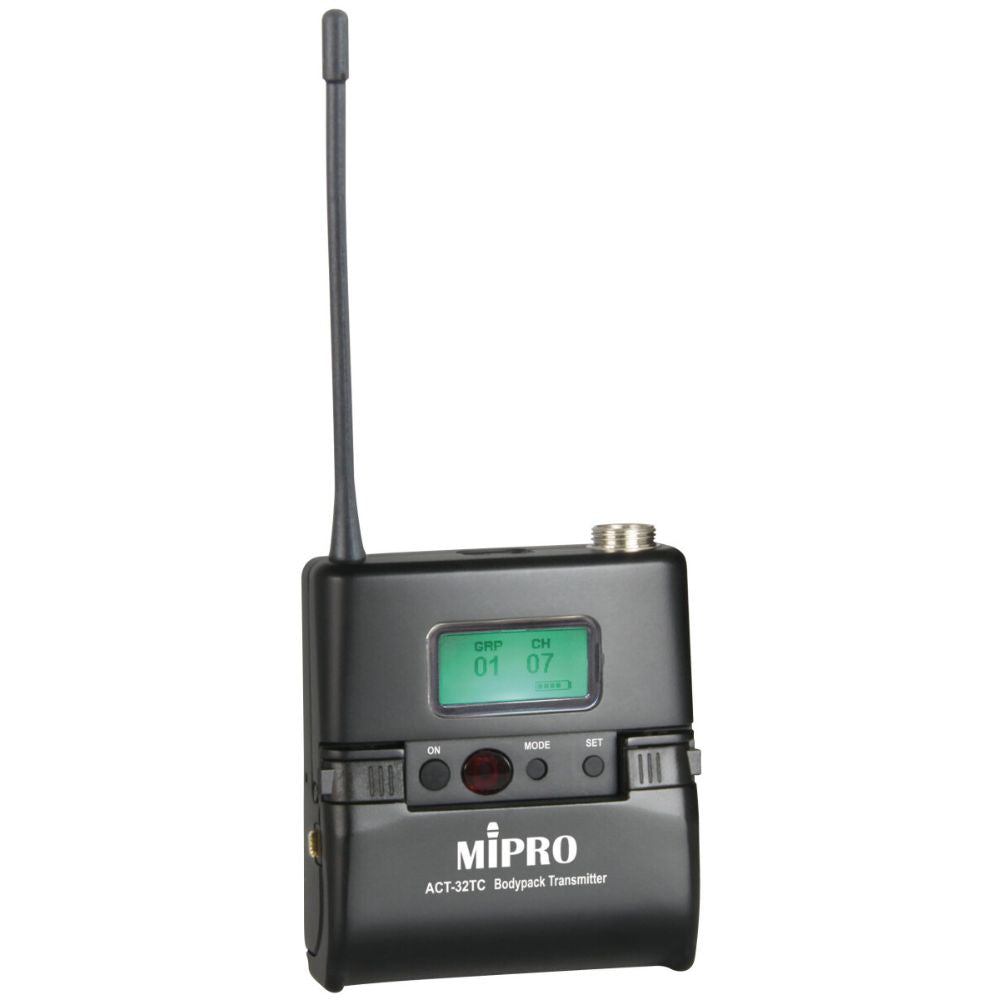

ACT-32TC (with charging contacts)

Bandwidth

24 MHz (center gap 10 MHz)

Frequency Range

518–542 MHz (5NB),
620–644 MHz (6A),
644–668 MHz (6B),
823–832 MHz (8AD)

Tuner Procedure

PLL Synthesized

Synchronization

ACT Sync (Automatic Channel Targeting)

Transmission Power

10 mW / 50 mW adjustable

Nominal Deviation

< ± 40 kHz

Spurious Emission

< -55 dBc

Volume Adjustment

+6 dB, 0 dB, -6 dB (3 levels), 0 dB = mic input sensitivity

Max. Input Power

0 dBV

External Mute Switch

Optional MJ-70 external mute switch

Microphones

Neckband: MU-13 / MU-23 / MU-53HN / MU-55HN
Lavalier: MU-53L / MU-55L

Batteries

Lithium battery (18500)

Operating Time

Up to 12 hours

Display

LCD (liquid crystal display)

Housing

Plastic housing

Dimensions (W × H × D)

63 × 70 × 25 mm (2.5 × 2.8 × 1.0")

Weight

Approx. 102 g (3.6 oz), excluding batteries
