ACT-343

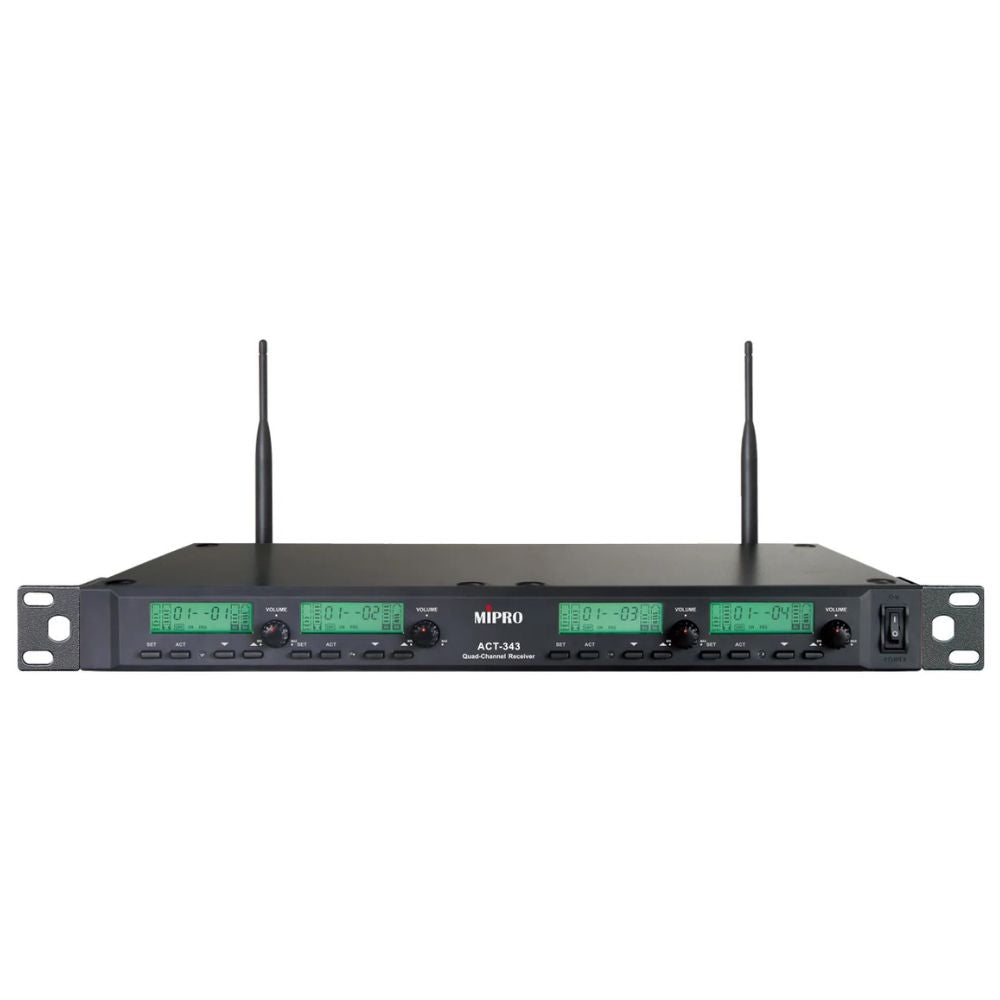

Rugged metal chassis design. The front panel features a green backlit LCD, electronic buttons, and a rotary volume knob. The display brightness adjusts automatically during reception to clearly distinguish between active and standby channels.
Equipped with a MIPRO-designed 24 MHz narrowband diversity receiving circuit for long-distance, stable signal reception without dropouts. Effectively reduces harmonic interference and increases usable channel count.
Innovative dual-squelch system combining pilot tone and noise lock, with noise indicator and adjustable SQ sensitivity to extend reception range or minimize noise interference.
Supports Auto Scan and ACT frequency synchronization for fast and accurate frequency setup.
Factory-preset with 6 frequency groups, providing a total of 80 channels. The 7th group allows users to store 16 selectable channels from 961 available frequencies.

MIPRO

₱36,000.00 VAT INC.

₱36,000.00

UNIT: PIECE/S

Product Code: SKU:MPRO-ACT343-CHN-0932

Rugged metal chassis design. The front panel features a green backlit LCD, electronic buttons, and a rotary volume knob. The display brightness adjusts automatically during reception to clearly distinguish between active and standby channels.
Equipped with a MIPRO-designed 24 MHz narrowband diversity receiving circuit for long-distance, stable signal reception without dropouts. Effectively reduces harmonic interference and increases usable channel count.
Innovative dual-squelch system combining pilot tone and noise lock, with noise indicator and adjustable SQ sensitivity to extend reception range or minimize noise interference.
Supports Auto Scan and ACT frequency synchronization for fast and accurate frequency setup.
Factory-preset with 6 frequency groups, providing a total of 80 channels. The 7th group allows users to store 16 selectable channels from 961 available frequencies.

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

MIPRO ACT-343

Key Specification
Model	ACT-343
Name	UHF Analog Quad-Channel Receiver
Channel	Quad
Chassis	Full-rack (19") metal chassis
Frequency Range	UHF 480–934 MHz (country dependent)
Bandwidth	24 MHz
Receiving Mode	Diversity
Display	Green backlit LCD
Control Interface	ACT sync button, setting buttons and volume control
Sensitivity	22 dBμV @ S/N > 80 dB
Frequency Response	50 Hz–18 kHz
Dynamic Range	> 106 dBA
Audio Outputs	Balanced XLR and unbalanced 1/4" (6.3 mm) for independent outputs, plus a mixed XLR & 1/4" (6.3 mm) output. Three-level gain setting: +16 / 0 / -6 dB (balanced), +10 / 0 / -6 dB (unbalanced)
Antenna	Detachable. 50Ω TNC female connector provides bias for the MIPRO antenna systems.
Power Supply	DC 12–15 V. External AC 100–240 V switching power supply
Dimensions (W × H × D)	420 × 44 × 164 mm
Weight	Approx. 1.7 kg
