Key Specification

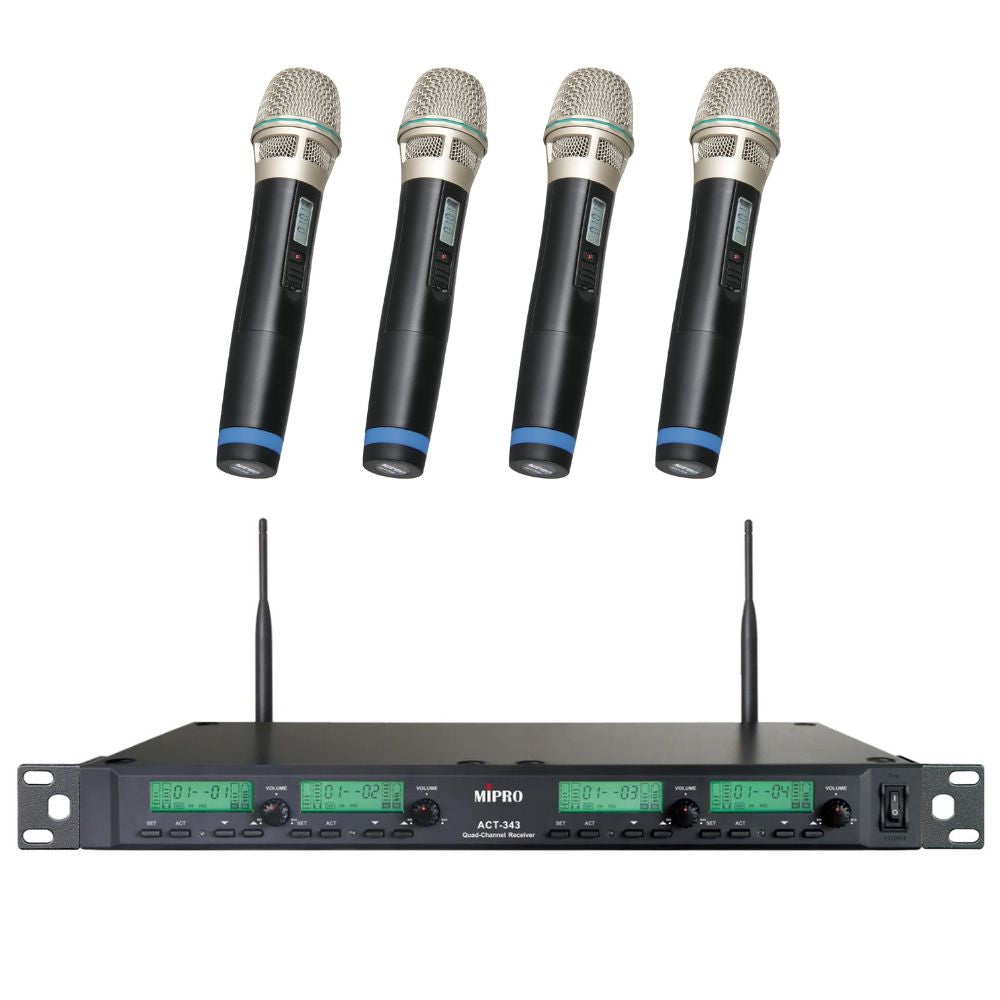

Model

ACT-343

Name

UHF Analog Quad-Channel Receiver

Channel

Quad

Chassis

Full-rack (19") metal chassis

Frequency Range

UHF 480–934 MHz (country dependent)

Bandwidth

24 MHz

Receiving Mode

Diversity

Display

Green backlit LCD

Control Interface

ACT sync button, setting buttons and volume control

Sensitivity

22 dBμV @ S/N > 80 dB

Frequency Response

50 Hz–18 kHz

Dynamic Range

> 106 dBA

Audio Outputs

Balanced XLR and unbalanced 1/4" (6.3 mm) for independent outputs, plus a mixed XLR & 1/4" (6.3 mm) output. Three-level gain setting: +16 / 0 / -6 dB (balanced), +10 / 0 / -6 dB (unbalanced)

Antenna

Detachable. 50Ω TNC female connector provides bias for the MIPRO antenna systems.

Power Supply

DC 12–15 V. External AC 100–240 V switching power supply

Dimensions (W × H × D)

420 × 44 × 164 mm

Weight

Approx. 1.7 kg

Key Specification

Model

ACT-32H

Name

UHF Analog Handheld Transmitter

Frequency Range

UHF 480–934 MHz (country dependent)

Bandwidth

24 MHz

Display

Backlit LCD displays channel and battery status

Control Interface

ACT sync sensor

Mic. Capsule Modules

MU-80 condenser or other compatible capsule modules

RF Power Output

30 mW (country dependent)

Power Supply

2 × AA alkaline

Battery Charging

N/A

Dimensions (Ø × L)

51 × 234 mm

Weight

Approx. 250 g
